M-60 SERIES TANK 10916089 HYDRAULIC BRAKE CYLINDER ASSEMBLY 2530-00-978-2068 NOS
M-60 SERIES TANK 10916089 HYDRAULIC BRAKE CYLINDER ASSEMBLY 2530-00-978-2068 NOS
Regular price
$584.01 USD
Regular price
Sale price
$584.01 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 2530-00-978-2068 Specs and cross-references for NSN 2530-00-978-2068 (opens in a new tab) ↗

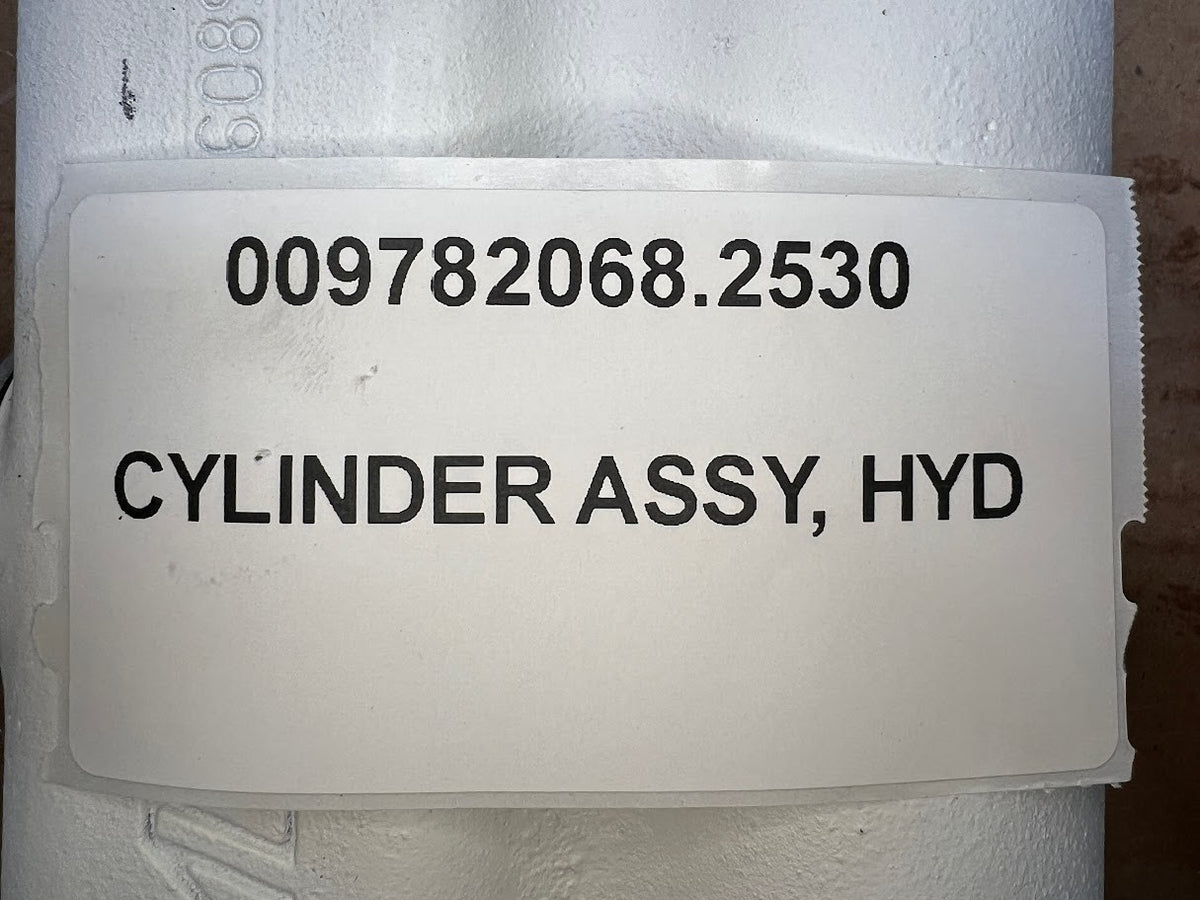

10916089 Hydraulic Brake Cylinder Assembly (2530-00-978-2068)
Hydraulic brake cylinder assembly, cast iron body, for the M-60 Series Tank.
Part Information
- Design Control Activity: U.S. Army Tank Automotive Command
- Part Number: 10916089
- NSN: 2530-00-978-2068
- End Item: M-60 Series Tank
Specifications
- Mounting Type: Piston Rod End Flange
- Overall Height: 5.295 in (nominal)
- Overall Width: 3.500 in (nominal)
- Actuation Method: Direct
- Seat Angle: 30.0 deg
- Mounting Provision: Unthreaded Mounting Holes
- Reservoir Type: Integral
- Straight Bore Inside Diameter: 1.750 in (nominal)
- Features Provided: Filler Plug
- Mounting Facility Diameter: 0.406 in (nominal)
- Port Thread Series: UNF (location not otherwise specified)
- Port Thread Diameter: 0.500 in (nominal)
- Port Thread Class: 2B
- Bleeding Feature Quantity: 1
- Material (Body): Cast Iron
