M-60 SERIES MILITARY TANKS 10882857 CATCH LEVER TOOL 5120-00-615-8843 USA STOCK

10882857 Catch Lever Tool (NSN 5120-00-615-8843)

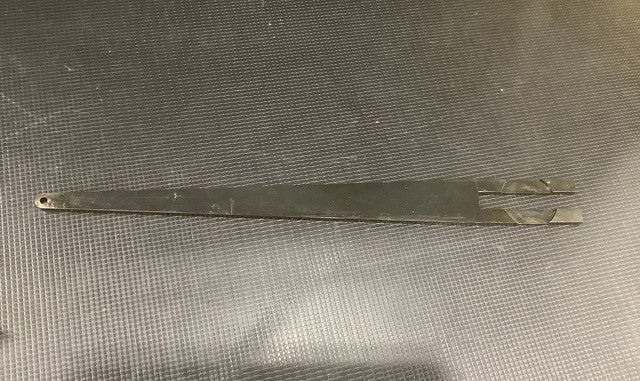

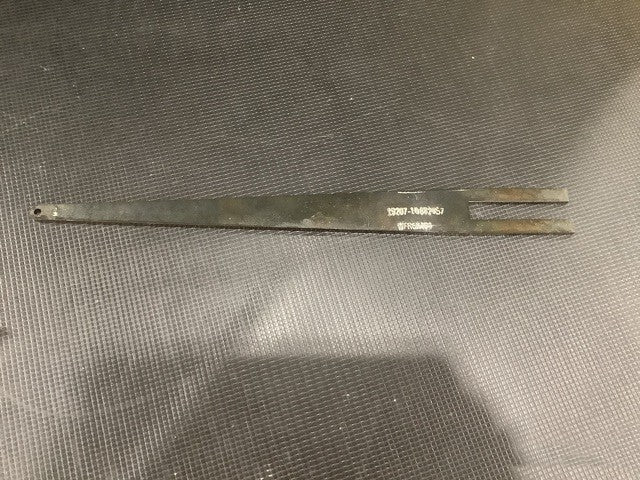

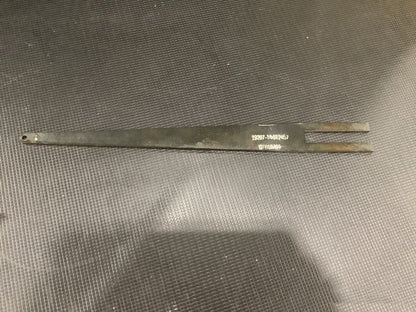

Carbon steel catch lever tool for the M-60 Series Military Tanks.

Part Information

• Design Control Activity: U.S. Army Tank Automotive Command
• Part Number: 10882857
• NSN: 5120-00-615-8843
• End Item: M-60 Series Military Tanks

Specifications

• Material: Carbon Steel, Spec QQ-S-00640
• Finish: Black Oxide, Class 1, Spec MIL-C-13924
• Length: 13.560 in.
• Thickness: 0.190 in.
• 1st End Width: 0.380 in., 0.190 radius end, 1 hole 0.160 dia. thru
• 2nd End: 1.250 in. wide x 3.000 in. length, tapered body from 0.380 to 1.250
• 2nd End Slot: 0.491–0.493 in. width x 2.752–2.755 in. length
• Spot Face: 0.078–0.083 in. deep, one side only, 1.380 in. from 2nd end on 1.500 centerline
• Distance Between Hole Centerlines: 12.000 in.
