M-60 Series Military Tank 10940367 Flat Headed Straight Pin | NSN 5315-00-143-6055 NOS

10940367 Headed Straight Pin (NSN 5315-00-143-6055)

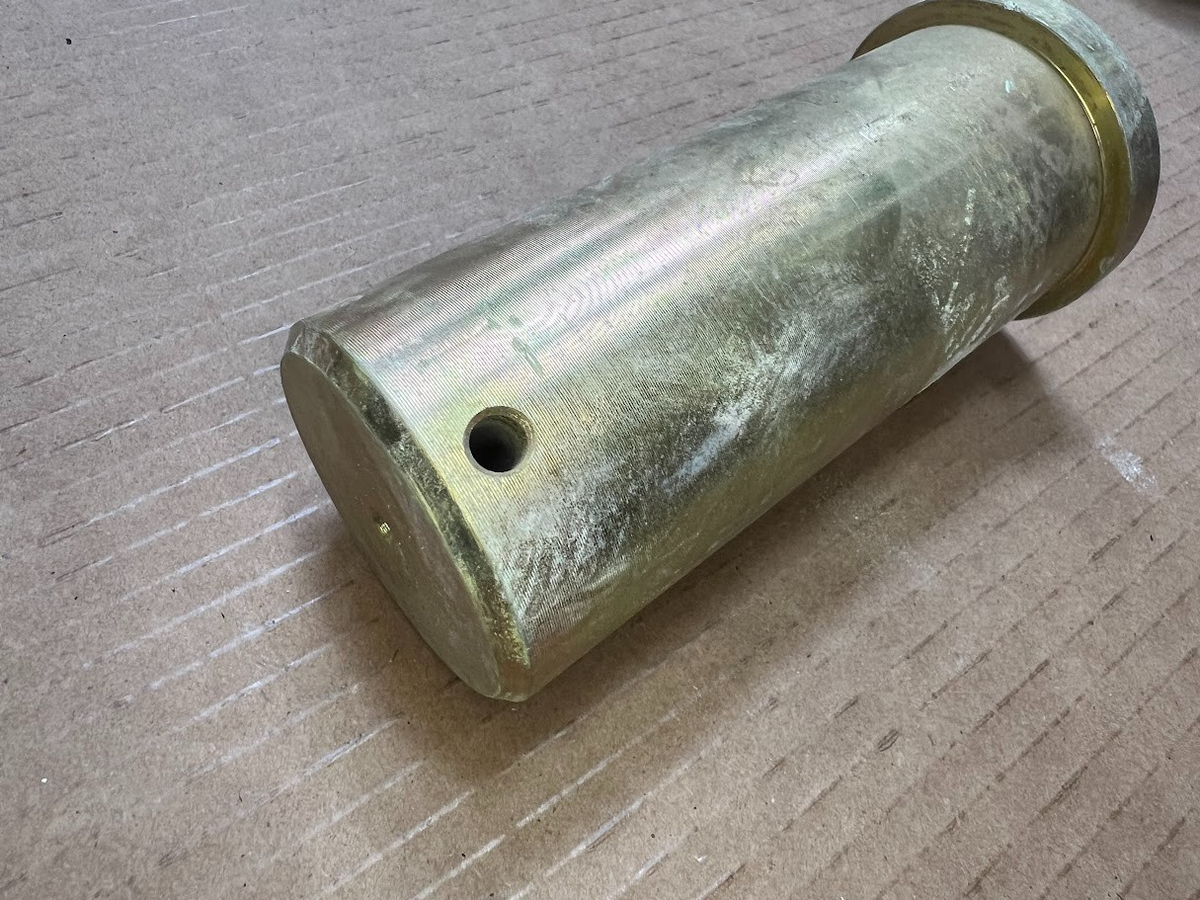

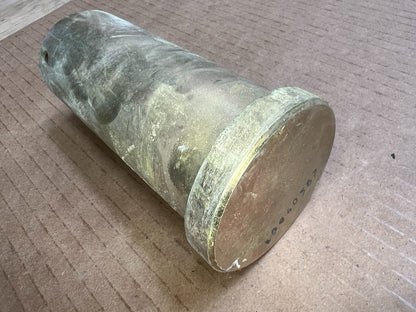

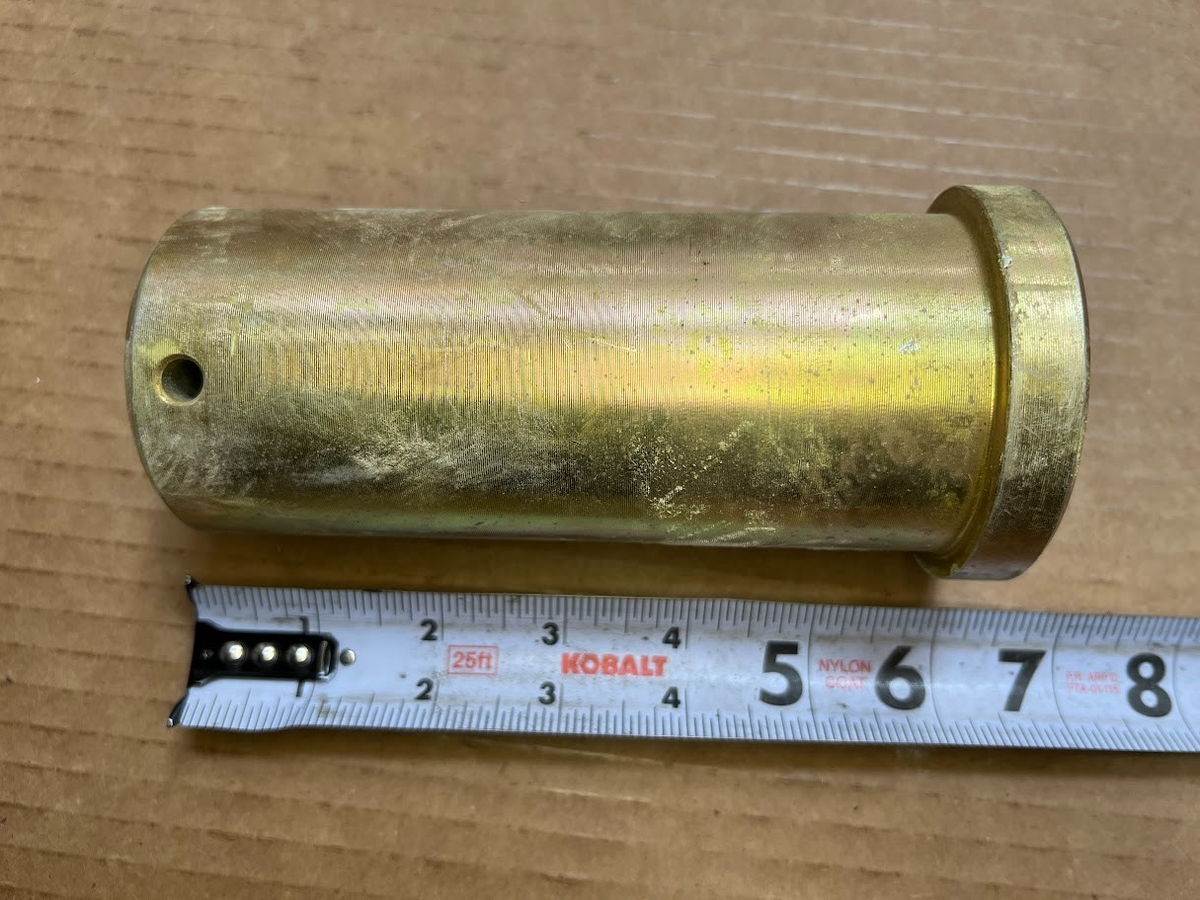

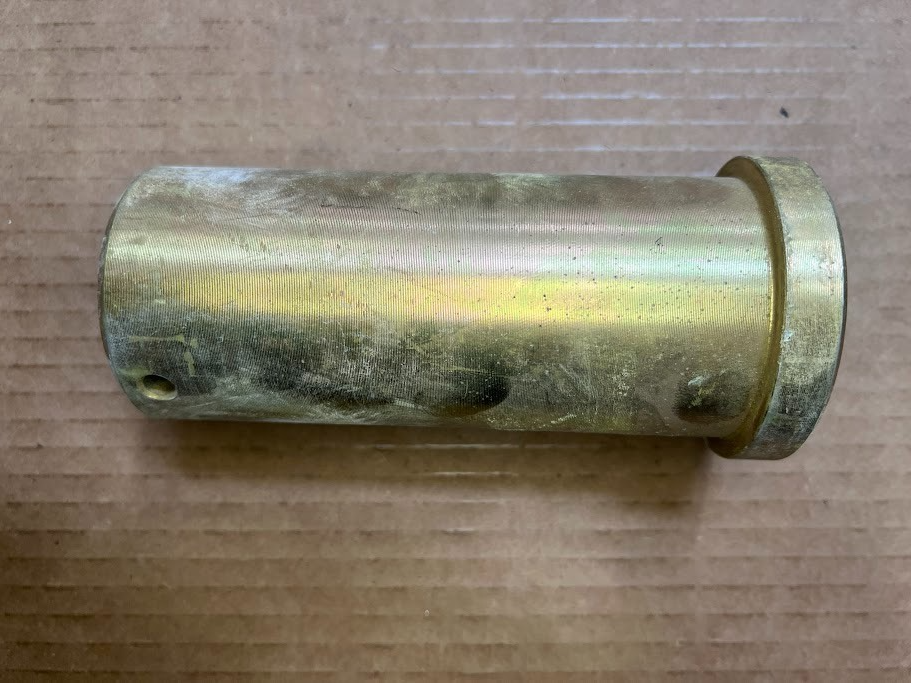

Case-hardened steel headed straight pin, cadmium plated, for the M-60 Series Military Tank.

Part Information

• Design Control Activity: U S Army Tank Automotive Command
• Part Number: 10940367
• NSN: 5315-00-143-6055
• End Item: M-60 Series Military Tank

Specifications

• Material: Steel Comp 4140 or Steel Comp 8640
• Material Spec: QQ-S-624
• Surface Treatment: Cadmium, QQ-416, TY 2, CL 1
• Hardness: Rockwell C 26.0-31.0
• Diameter: 2.485-2.495 in.
• Pin Head Diameter: 2.880 in. nominal
• Under Head Length: 5.620 in. nominal
• Chamfer Length: 0.120 in. nominal, 45.0° angle
• First Hole Diameter: 0.270-0.290 in.
• Distance from Centerline of Hole to End of Pin: 0.430 in. nominal
• Height: 0.500 in. nominal
