M-60 SERIES MIL-H-25579 HOSE NONMETALLIC ASSEMBLY MS8005E76C 4720-00-590-5249

PARKER HANNIFIN MS8005E076C Nonmetallic Hose Assembly (4720-00-590-5249)

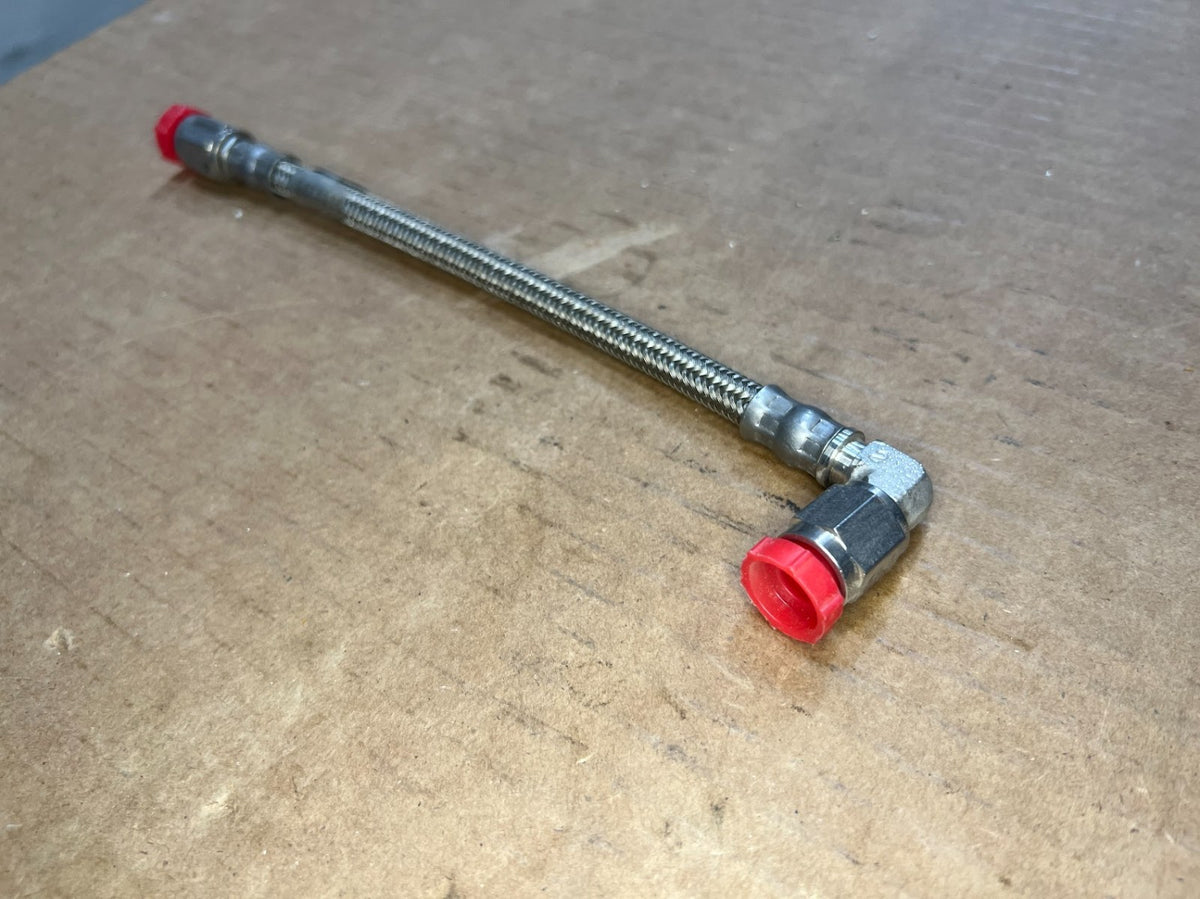

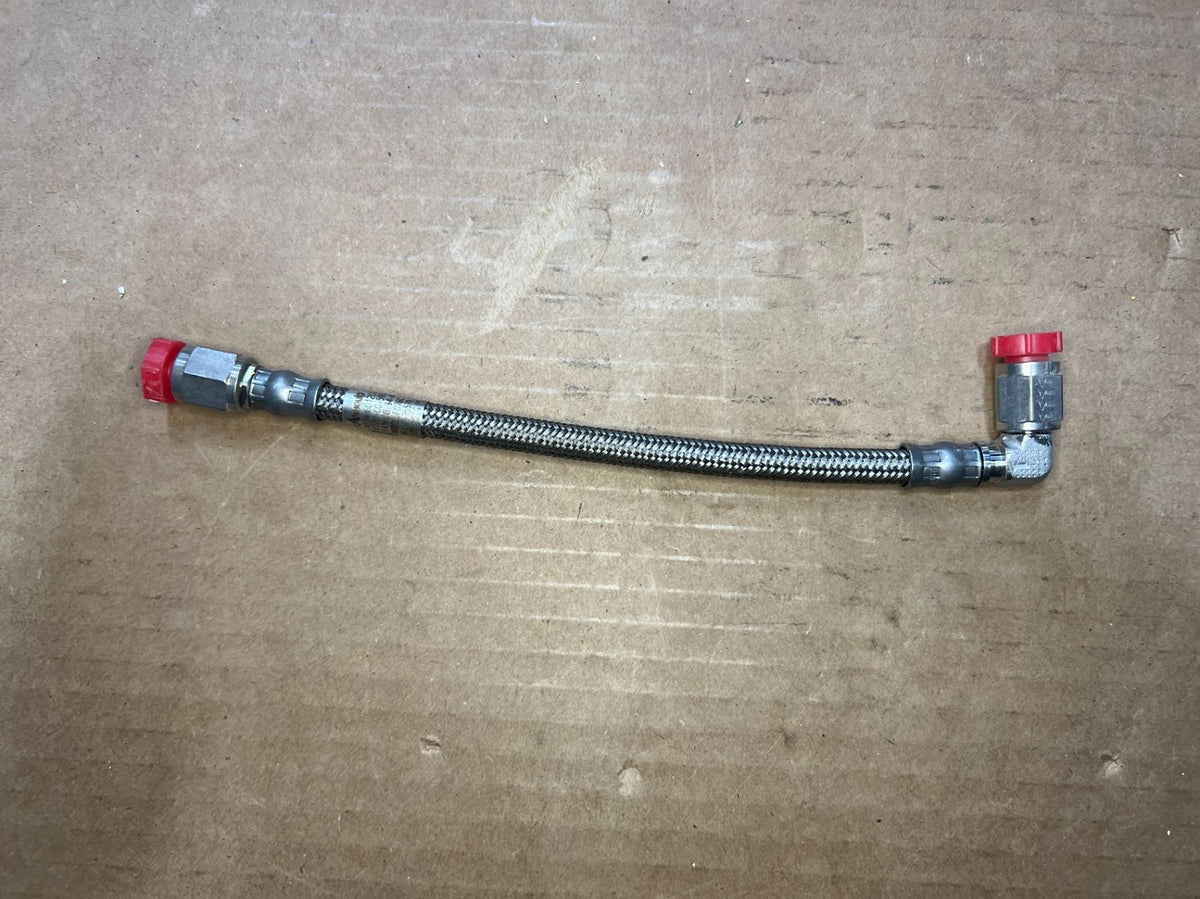

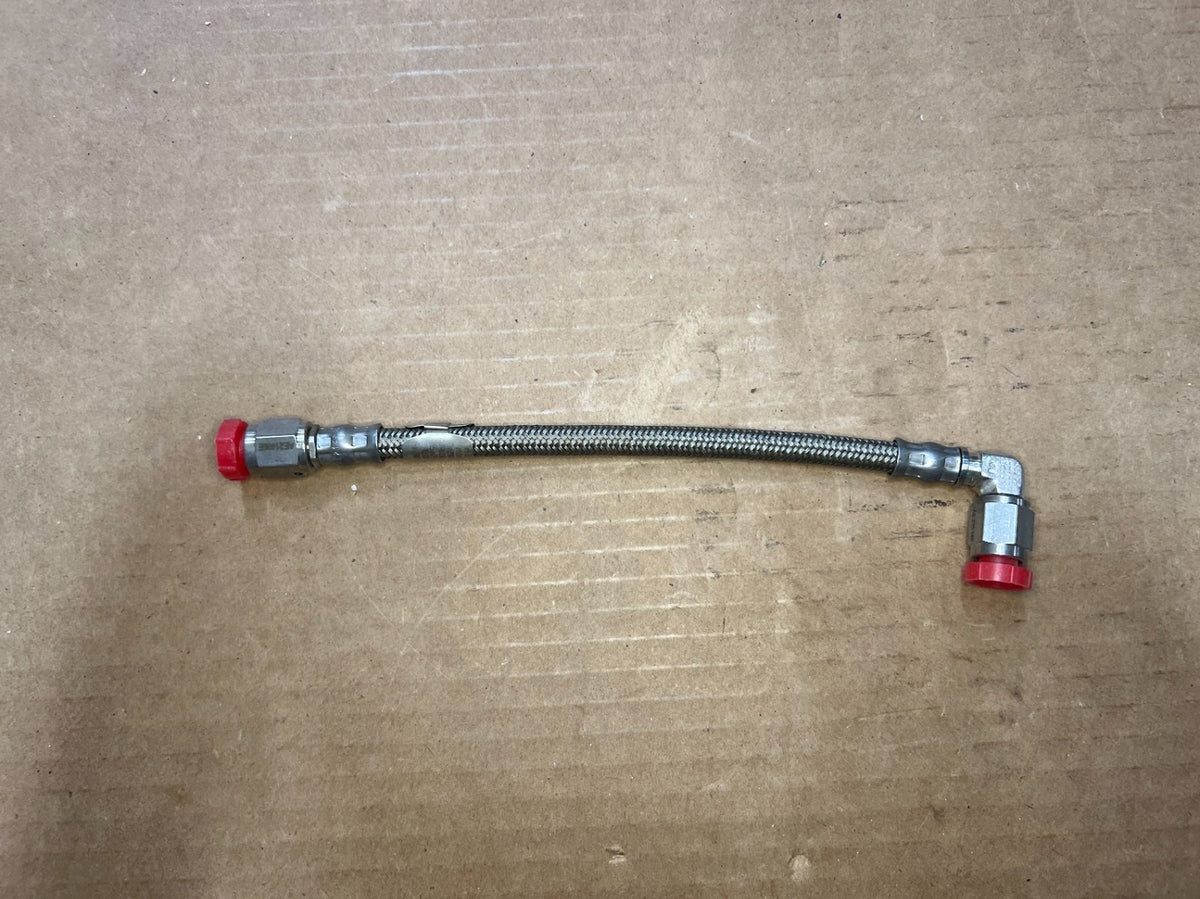

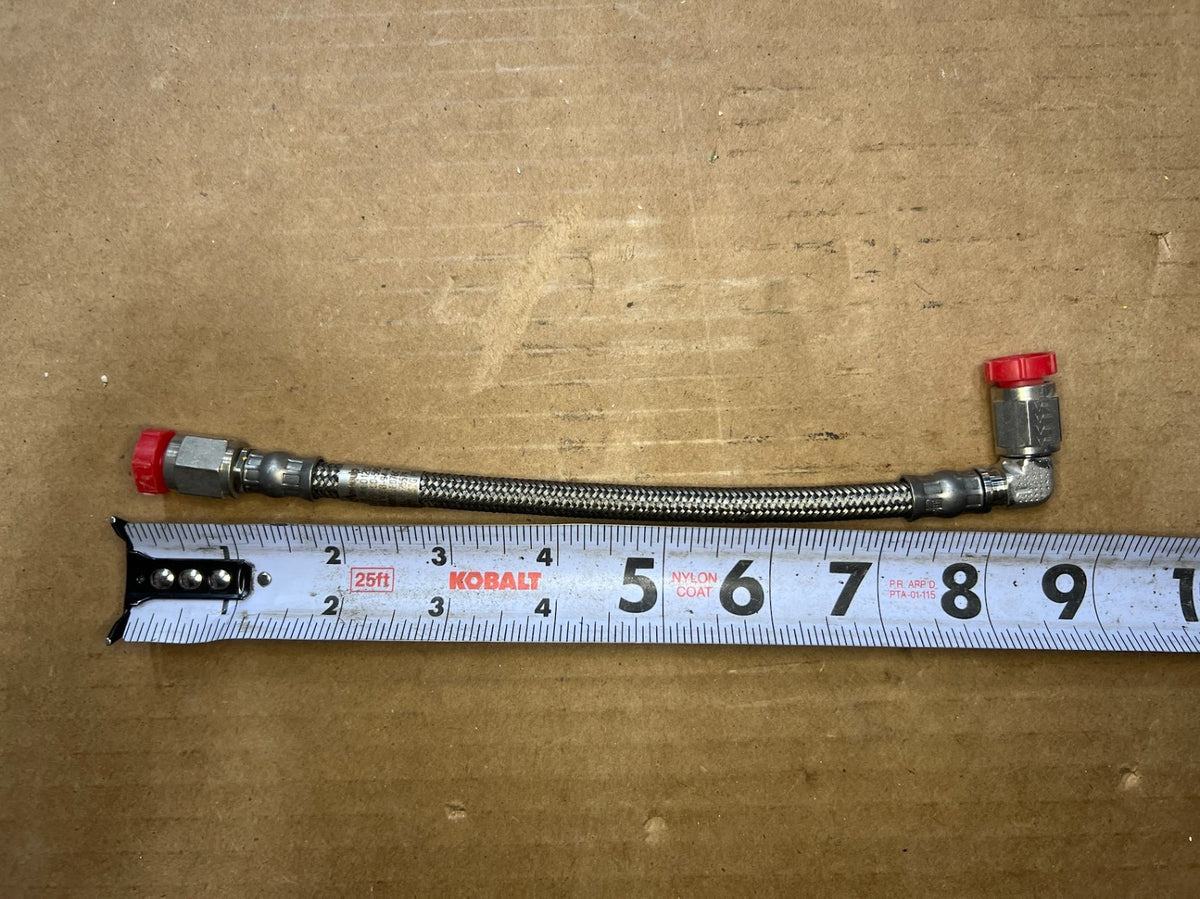

Nonmetallic hose assembly with straight fitting on one end and 90° elbow on the other, braided corrosion-resistant steel wire outer layer.

Part Information

• Manufacturer: Parker Hannifin Corp
• Part Number: MS8005E076C
• NSN: 4720-00-590-5249
• CAGE Code: 98441

Specifications

• Thread Class: 3B
• Thread Direction: First End Right-Hand; Second End Right-Hand
• Thread Series: Unified National Joint Fine (UNJF), Both Ends
• Nominal Thread Size: 0.438 in, Both Ends
• Inside Diameter: 0.188 in Nominal
• Outside Diameter: 0.312 in Nominal
• End Connection: First End Straight; Second End Elbow
• Connection Type: Threaded Internal Tube, Both Ends
• Seat Angle: 37° Both Ends
• Flow Angle: Second End 90°
• Operating Pressure: 1500 PSI Max
• Burst Test Pressure: 12,000 PSI
• Hydrostatic Test Pressure: 3,000 PSI
• Temp Rating: -65°F to 450°F
• Vacuum: 50.8 Torr
• Inside Surface: Smooth
• Outer Covering: Corrosion Resistant
• Spec/Standard: Government Standard 96906-S8005
