M-1 ABRAMS MILITARY TANK 9377483 COUNTERBALANCE WEIGHT 3040-01-236-9136 NOS
M-1 ABRAMS MILITARY TANK 9377483 COUNTERBALANCE WEIGHT 3040-01-236-9136 NOS
Regular price
$199.00 USD
Regular price
Sale price
$199.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 3040-01-236-9136 Specs and cross-references for NSN 3040-01-236-9136 (opens in a new tab) ↗

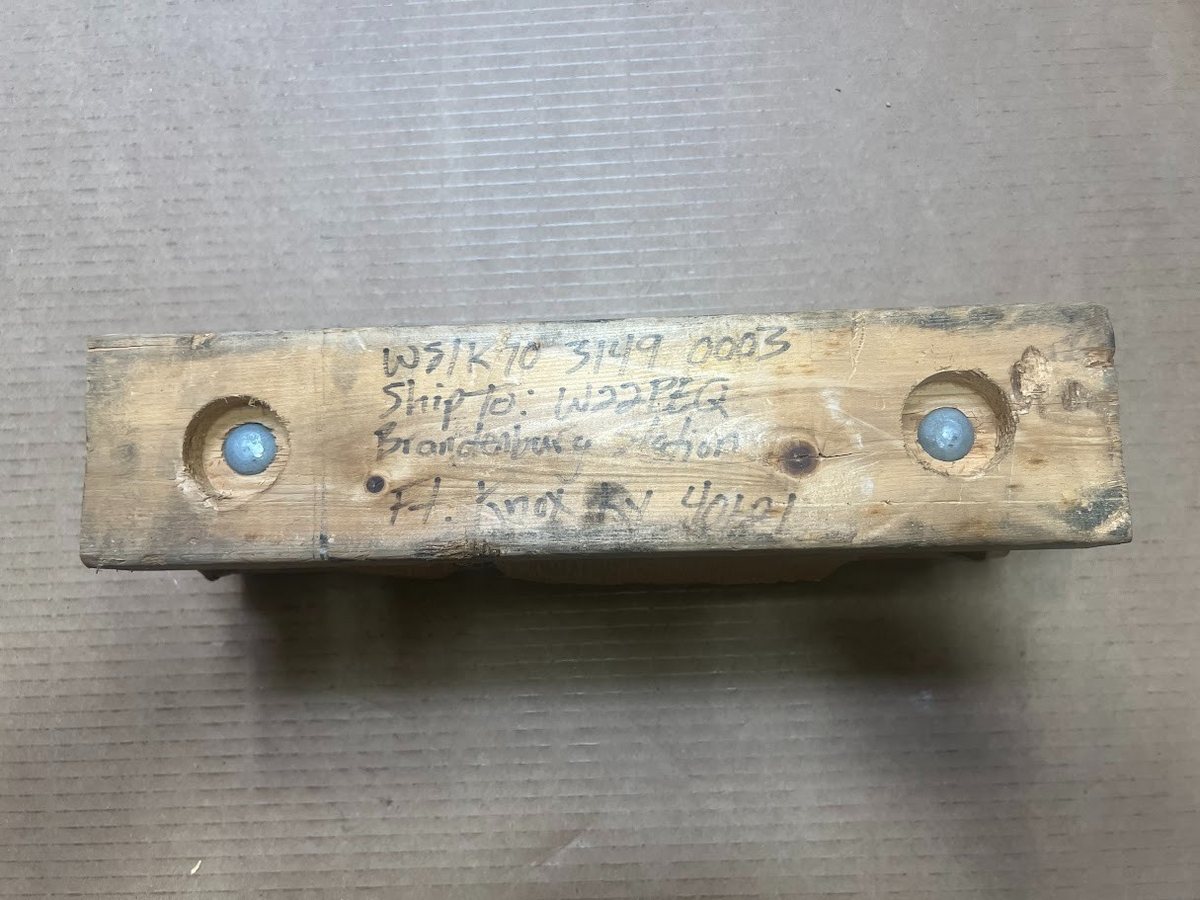

9377483 Counterbalance Weight (3040-01-236-9136)
Antimonial lead counterbalance weight, 13.560 in. overall length, for the M-1 Abrams Military Tank.
Part Information
- Design Control Activity: Combat Capabilities Development
- Part Number: 9377483
- NSN: 3040-01-236-9136
- End Item: M-1 Abrams Military Tank
Specifications
- Material: Antimonial lead
- Composition: Lead and antimony 99.0% min; antimony 1.0% max
- Overall Length: 13.560 in.
- Overall Height: 2.060 in.
- Holes: 2 holes 1.250 in. dia. to depth shown
- Holes: 2 holes 0.4380 in. dia.
- Inserts: 2 ea insert (9377368)
