Lcus Landing Utility 10208-1027-01 Electrical Equipment Foot 5975-01-517-6642

L3HARRIS TECHNOLOGIES 10208-1027-01 Electrical Equipment Foot (5975-01-517-6642)

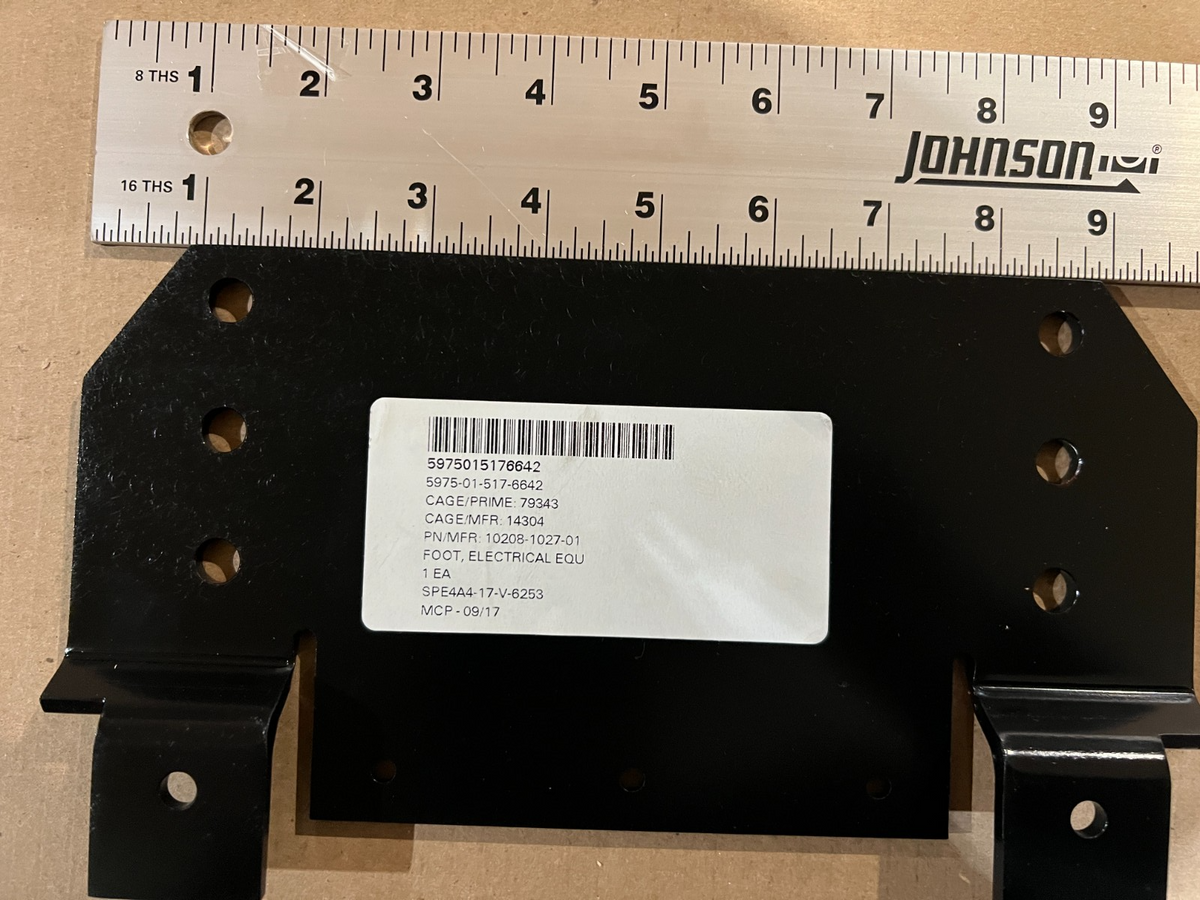

Aluminum alloy electrical equipment foot, rectangular profile with cutoff corners and bent left-edge section, bolt-on mounting foot for electrical equipment support.

Part Information

• Manufacturer: L3Harris Technologies, Inc.
• Part Number: 10208-1027-01
• NSN: 5975-01-517-6642

Specifications

• Overall Length: 9.749 in (nominal)
• Overall Height: 0.187 in (minimum)
• Overall Width: 5.350 in (nominal)
• Attachment to Item Supported: Six 0.375 in. mounting holes, 3 each across top & bottom
• Supporting Surface Attachment: Two 0.281 in. holes; three 0.205 in. thru holes, counterbored 0.400 in. farside
• Special Features: Rectangular with short edge at top; right top and bottom corners cutoff 1.21 in. from right edge and 0.88 in. from top/bottom edge; left top and bottom edges have 0.56 in. wide section bent back 60 degrees then parallel at 0.80 in. height from base; left edge has horizontal slots centered 3.88 in. apart, 1.5 in. long; material per QQ-A-250/8, Alloy 5052-H32
• Material: Aluminum Alloy
