Lcus Landing Craft Utility Nacco 1342411 NON-METALLIC Hose Assy 4720-01-386-8254

HYSTER-YALE GROUP, INC. 1342411 Nonmetallic Hose Assembly (4720-01-386-8254)

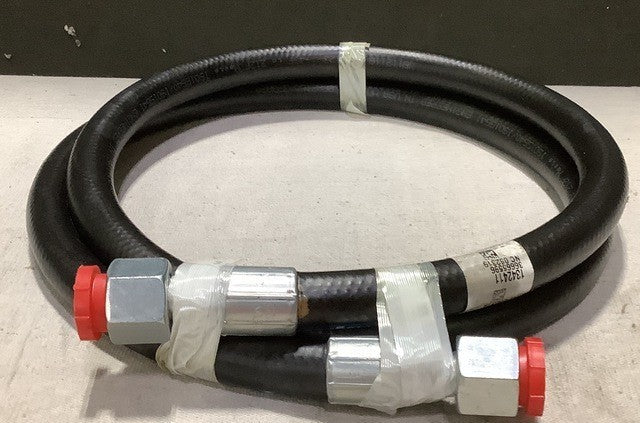

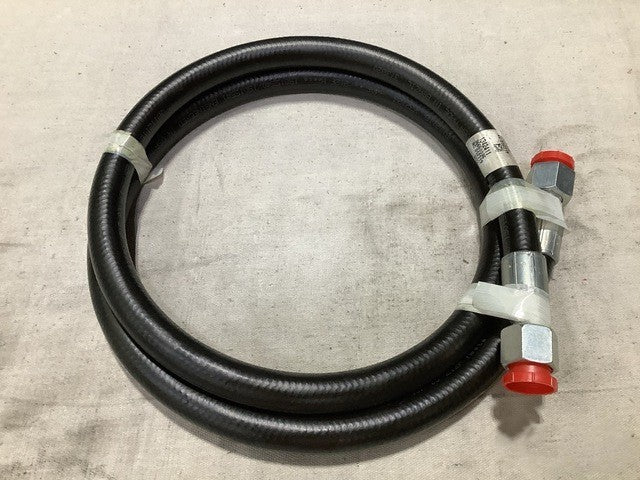

Braided steel wire reinforced synthetic rubber hose assembly with reusable end fitting, 0.625 inch nominal inside diameter, for the LCUS Landing Craft Utility.

Part Information

• Manufacturer: Hyster-Yale Group, Inc.

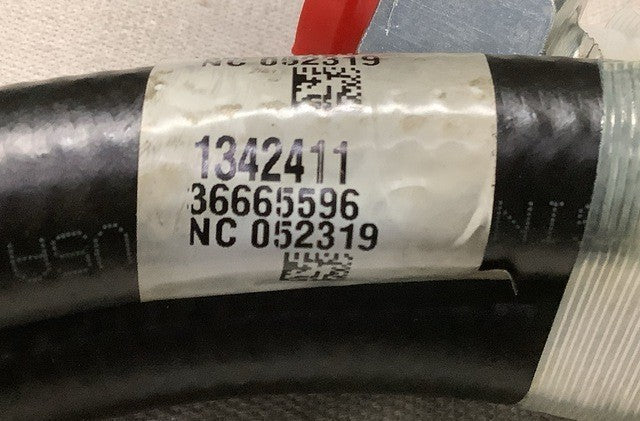

• Part Number: 1342411
• NSN: 4720-01-386-8254
• End Item: LCUS Landing Craft Utility
• CAGE Code: 30076

Specifications

• Thread Class: 2B
• Thread Direction: First end, right-hand
• Inside Diameter: 0.625 in nominal
• Outside Diameter: 0.940 in nominal
• Minimum Inside Bending Radius: 4.000 in
• End Connection Design: First end, straight
• Connection Type: First end, threaded internal tube
• Thread Quantity Per Inch: 12
• Nominal Thread Size: First end, 1.062 in
• Seat Angle: First end, 37.0 degrees
• Thread Series Designator: First end, UN
• Burst Test Pressure: 12,000 PSI
• Hydrostatic Test Pressure: 6,000 PSI
• Operating Pressure: 3,000 PSI maximum
• Temp Rating: -40.0°F to 212.0°F
• Inside Surface Condition: Smooth
• Measuring Method and Length: 81.200 in overall
• Media For Which Designed: Fuel/Oil, Hydrocarbon
• Item Structural Composition: First layer braided steel wire; outer layer molded rubber, synthetic
• Features Provided: Reusable end fittings
