LANDING CRAFT UTILITY THED136090 TRIP-RESET CIRCUIT BREAKER 5925-01-161-3261 USA
LANDING CRAFT UTILITY THED136090 TRIP-RESET CIRCUIT BREAKER 5925-01-161-3261 USA
Regular price
$1,111.69 USD
Regular price
Sale price
$1,111.69 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5925-01-161-3261 Specs and cross-references for NSN 5925-01-161-3261 (opens in a new tab) ↗

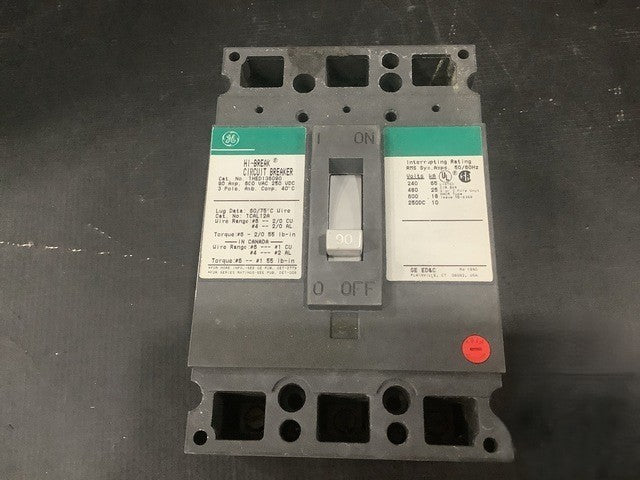

GENERAL ELECTRIC THED136090 Circuit Breaker (5925-01-161-3261)
General Electric THED136090 trip-reset circuit breaker, 3-pole, 600 VAC, 90 amperes per pole, for Landing Craft Utility.
Part Information
- Manufacturer: General Electric Company
- Part Number: THED136090
- NSN: 5925-01-161-3261
- End Item: LANDING CRAFT UTILITY
Specifications
- Pole Quantity: 3
- Operating Voltage: 600 VAC per pole
- Maximum Continuous Load Current: 90 A per pole
- Maximum Interrupting Capacity: 18,000 A AC per pole
- Circuit Protection Type: Overcurrent
- Trip Release Method: Thermal-Magnetic
- Trip Release Characteristic: Instantaneous and Time Delay
- Reset Method: Manual
- Main Contact Tripping Mechanism: Trip Free
- Actuator Type: Toggle, Trip-Reset
- Terminal Type: Compression, 6
- Case Material: Plastic
- Frequency: 60 Hz
