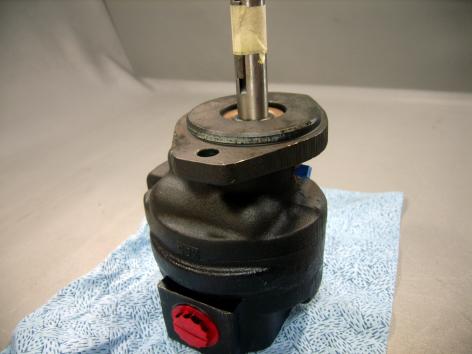

HYDRAULIC MOTOR FOR M977 SERIES HEMTT TRUCKS 1510KA6A1FB, 4320-01-147-8013

HYDRAULIC MOTOR FOR M977 SERIES HEMTT TRUCKS 1510KA6A1FB, 4320-01-147-8013

Regular price $1,385.00 USD
Regular price Sale price $1,385.00 USD
Sale Sold out
Shipping calculated at checkout.

HYDRAULIC MOTOR FOR M977 SERIES HEMTT TRUCKS 1510KA6A1FB, 4320-01-147-8013

M977 SERIES HEMTT MILITARY TRUCKS HYDRAULIC MOTOR 1510KA6A1FB, 4320-01-147-8013

DRIVE SHAFT TYPE(AJAB) KEYEDCONNECTION QUANTITY(ASMM) 1 AND 1CONNECTION DESIGN(AXFC) THREADEDCONNECTION GOVERNMENT SPEC/STD(AZFE) SAECONSTANT DISPLACEMENT PER REVOLUTION(AXFQ) 1.180 CUBIC INCHESCONNECTION TYPE(AWLS) INLET AND OUTLETDISPLACEMENT TYPE(AXFP) CONSTANTOPERATING SPEED AT RATED CAPACITY IN RPM(AEQC) 4090.0KEY LENGTH(AAST) 1.625 INCHES NOMINALKEY WIDTH(ABSF) 0.190 INCHES NOMINALKEY HEIGHT(AXFE) 0.188 INCHES NOMINALMOUNTING BOLT CIRCLE DIAMETER(AFFL) 4.190 INCHES NOMINALMOUNTING HOLE DIAMETER(ABTB) 0.440 INCHES NOMINALMOUNTING HOLE QUANTITY(ABTJ) 2MOUNTING TYPE(AAXX) FLANGESCREW THREAD SERIES DESIGNATOR(AJYP) UNSHAFT DIAMETER(ABWV) 0.749 INCHES NOMINALSHAFT PROTRUSION LENGTH(ARQA) 2.500 INCHES NOMINALSHAFT ROTATION DIRECTION(AKCT) CLOCKWISE AND COUNTERCLOCKWISESPECIAL FEATURES(FEAT) 1500K PUMP; FOR CW ROTATION OUTLET ON RIGHT,CCW ROTATION OUTLET ON LEFTSUPPLEMENTARY FEATURES(SUPP) PORTS 1-1/16-12UN-2B STR THD O-RINGTHREAD DIRECTION(AAJF) RIGHT-HANDTHREAD LOCATION(APJC) INTERNALTHREAD SIZE(ABUJ) 1.062-12III DISPLACEMENT TYPE(AXFP) CONSTANT
