Hummer M939 Elc Industries 12338611 24VDC Watertight Headlight 6220-01-193-1970
Hummer M939 Elc Industries 12338611 24VDC Watertight Headlight 6220-01-193-1970
Regular price
$114.92 USD
Regular price
Sale price
$114.92 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 6220-01-193-1970 Specs and cross-references for NSN 6220-01-193-1970 (opens in a new tab) ↗
BAE Systems 12338611 Watertight Headlight (6220-01-193-1970)

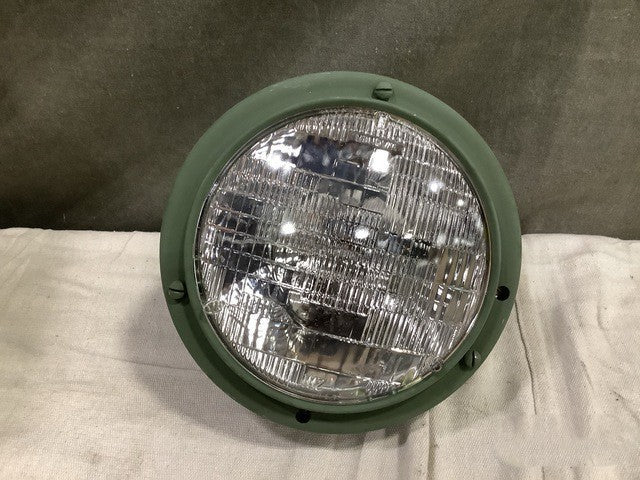

Watertight 24VDC headlight assembly with steel body and internal reflector, accommodating a single incandescent lamp via a three-contact lug base.
Part Information
- Manufacturer: BAE Systems Tactical Vehicle Systems

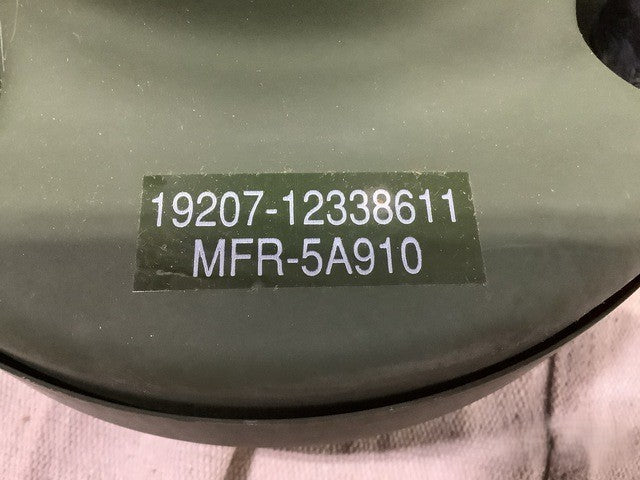

- Part Number: 12338611

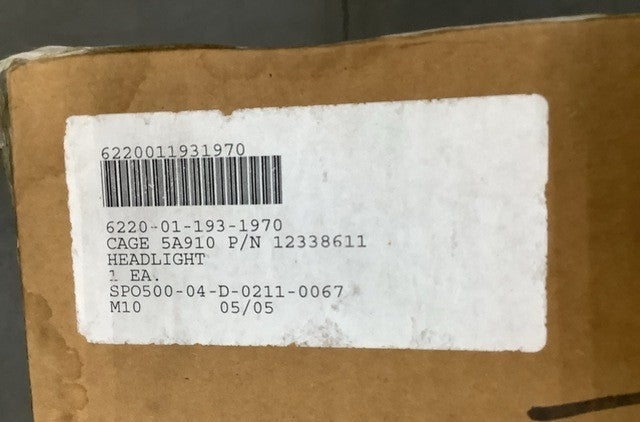

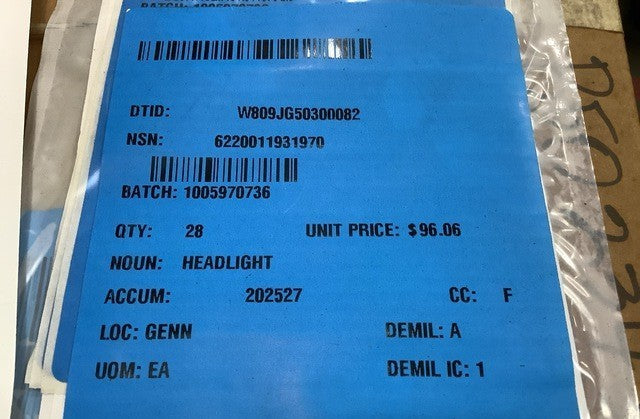

- NSN: 6220-01-193-1970
Specifications
- Environmental Protection: Watertight

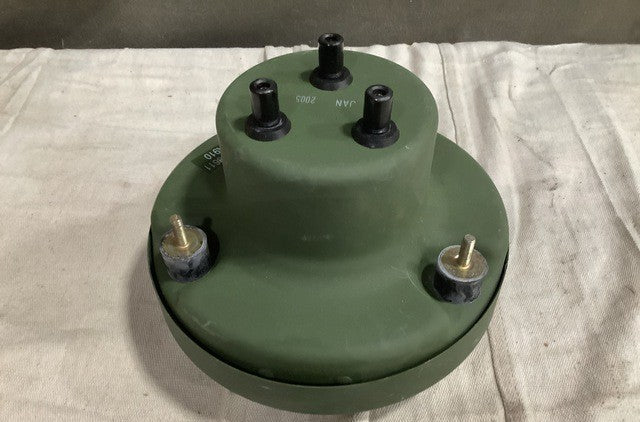

- Lamp Base Type: Three Contact Lugs
- Illumination Directing Device: Internal Reflector
- Voltage Rating: 24.0 VDC Nominal

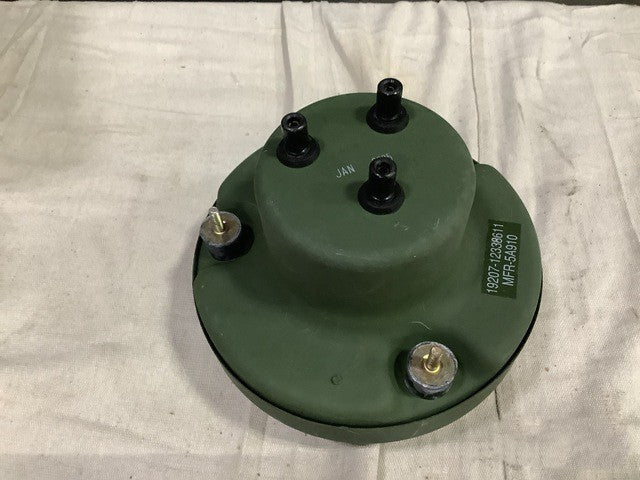

- Mounting Method: Stud(s)
- Lamp Type/Quantity: Incandescent, 1
- Material (Body): Steel
- Surface Treatment (Body): Paint
- Shape: Tapered
- Terminal Type/Quantity: Solder Lug, 3
Fits
This NSN is listed in the U.S. Army repair parts manuals for:
- 5-ton M939 series: M923, M925, M927, M928, M929, M930, M931, M932, M934, M936 and A1/A2 variants (TM 9-2320-272-24P)
- HEMTT: M977, M978, M983, M984, M985 (TM 9-2320-279-24P)
- HMMWV: all A0, A1 and A2 models (TM 9-2320-280-24P) — parts diagram: Fig. 62, item 14
- HMMWV (up-armored / expanded capacity): M1113, M1114, M1151, M1151A1, M1152, M1152A1, M1165, M1165A1, M1167 (TM 9-2320-387-24P)
- M35A2 / M44A2 2-1/2 ton series: M35A2, M35A2C, M36A2, M49A2C, M50A3, M109A3, M185A3 (TM 9-2320-361-24P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
