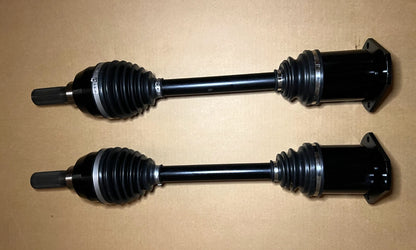

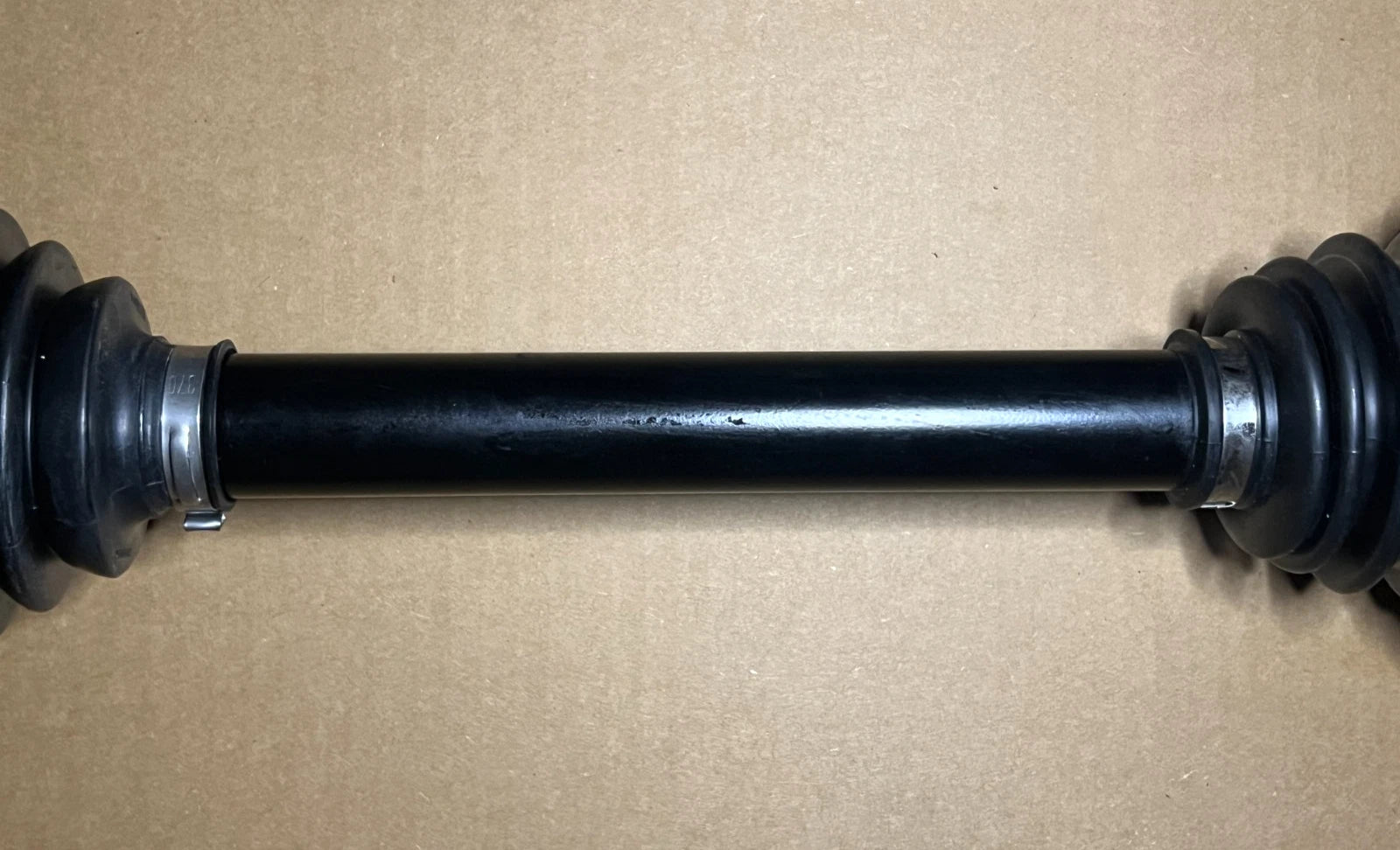

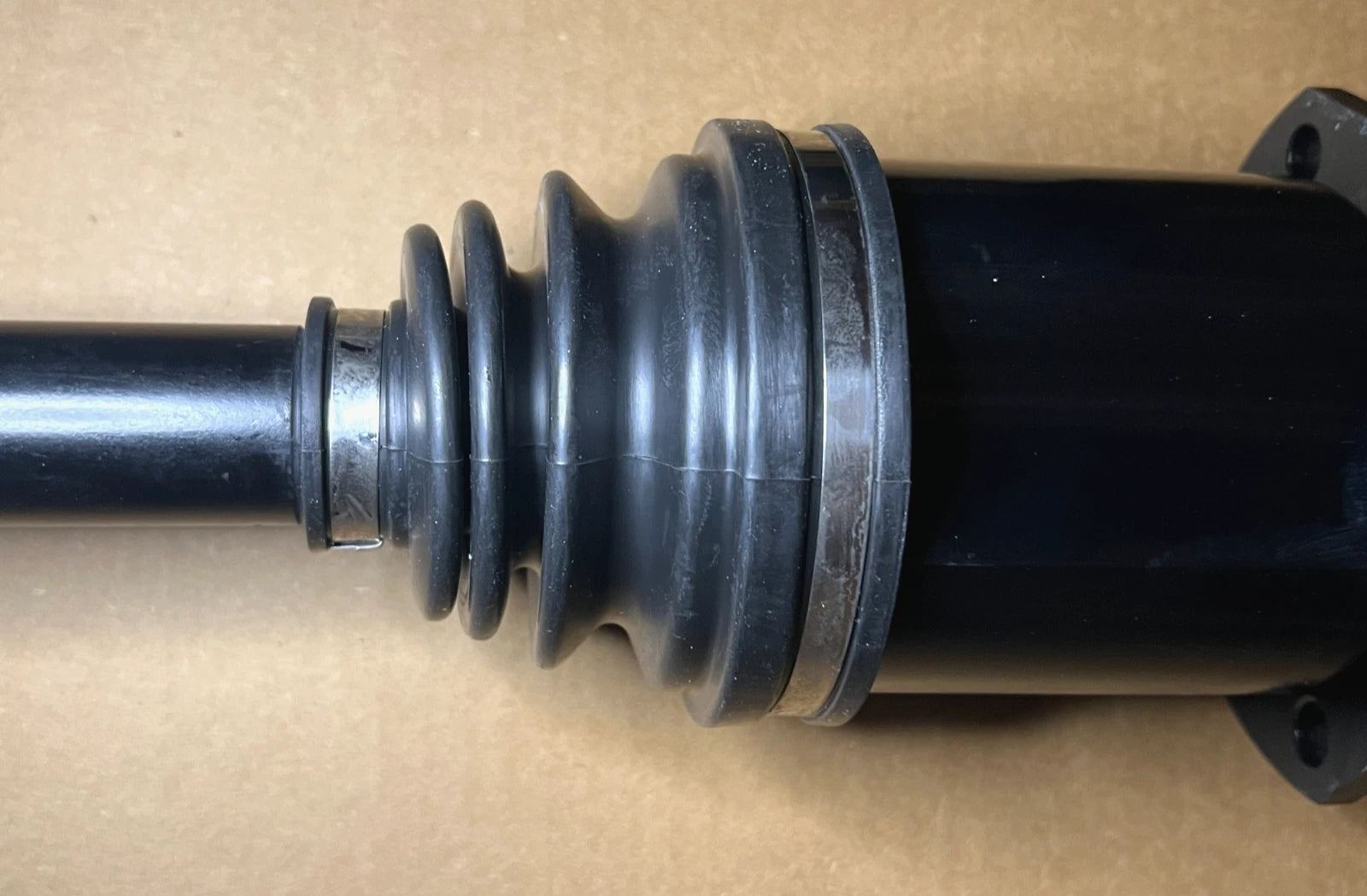

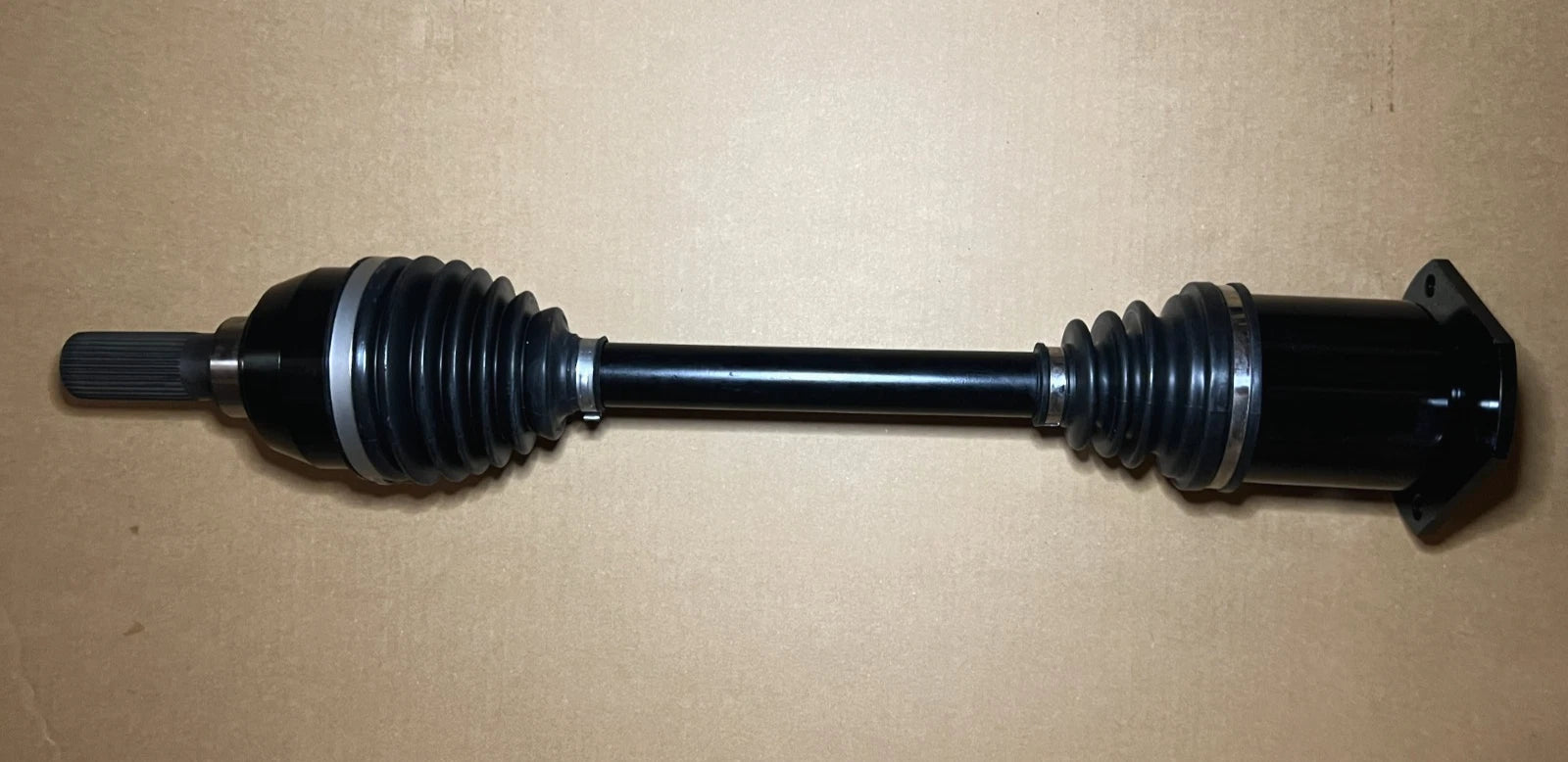

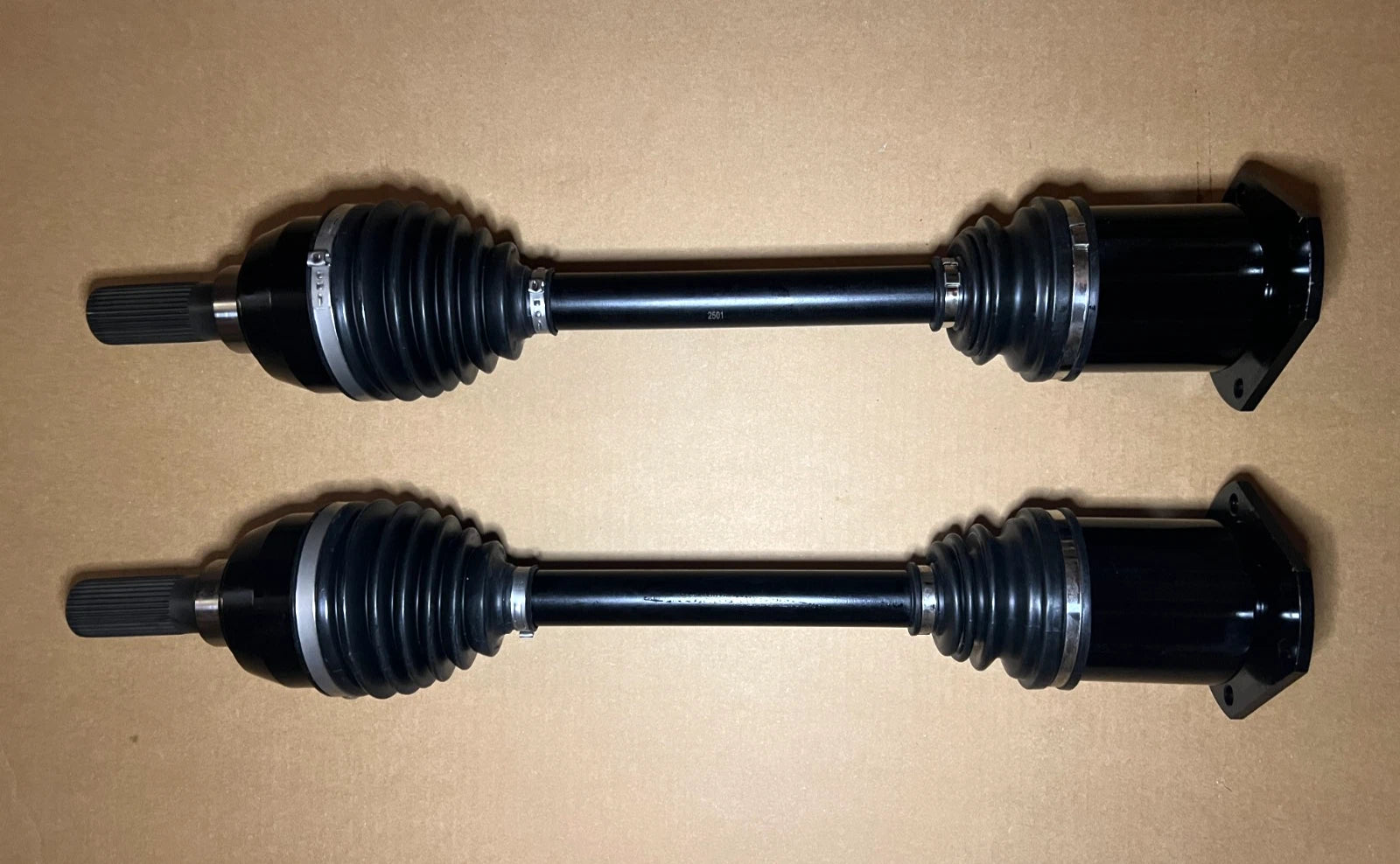

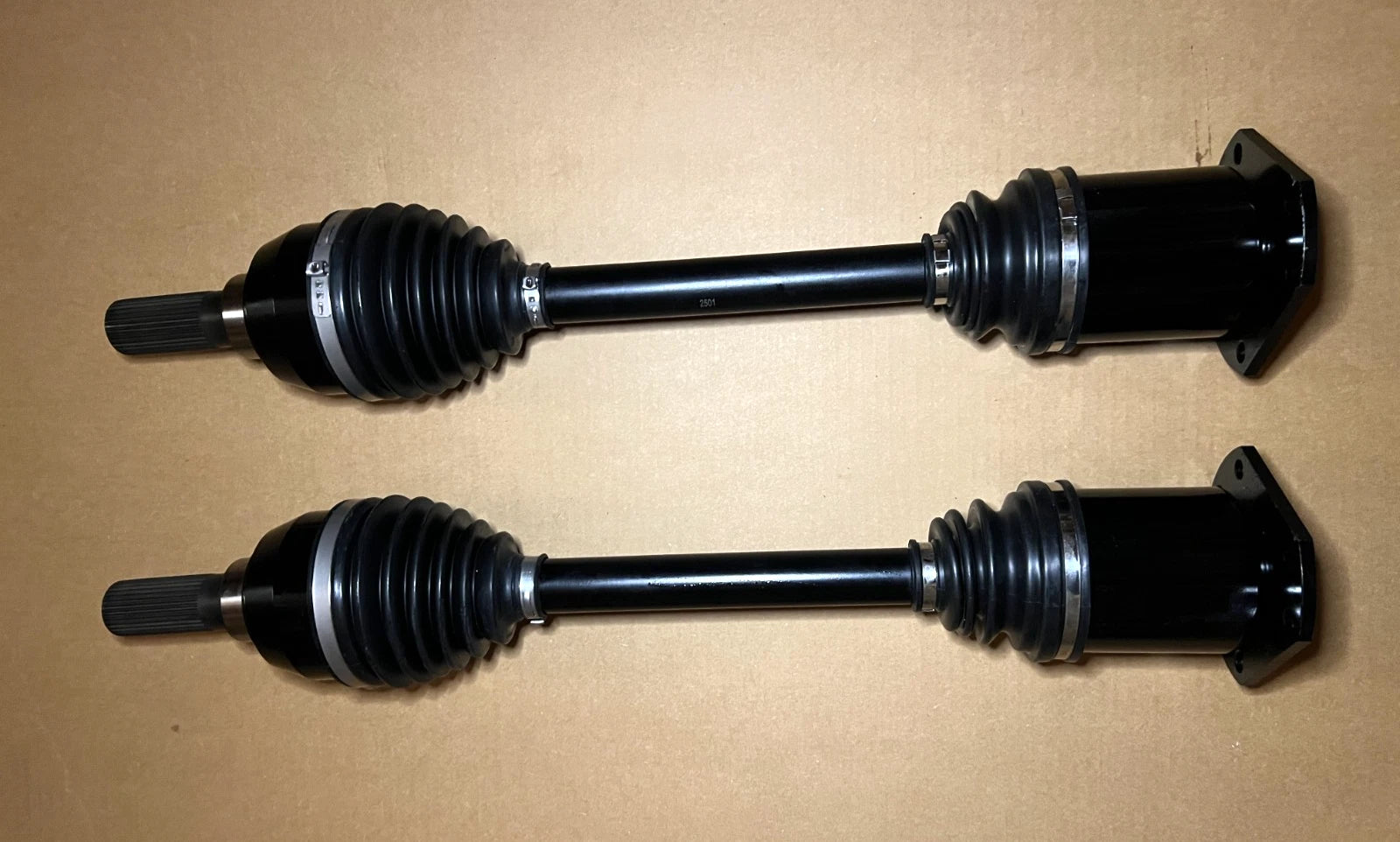

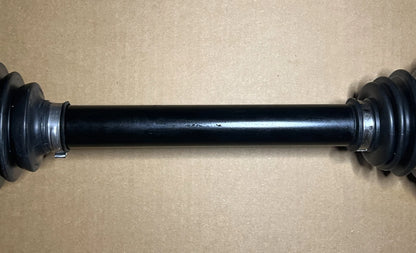

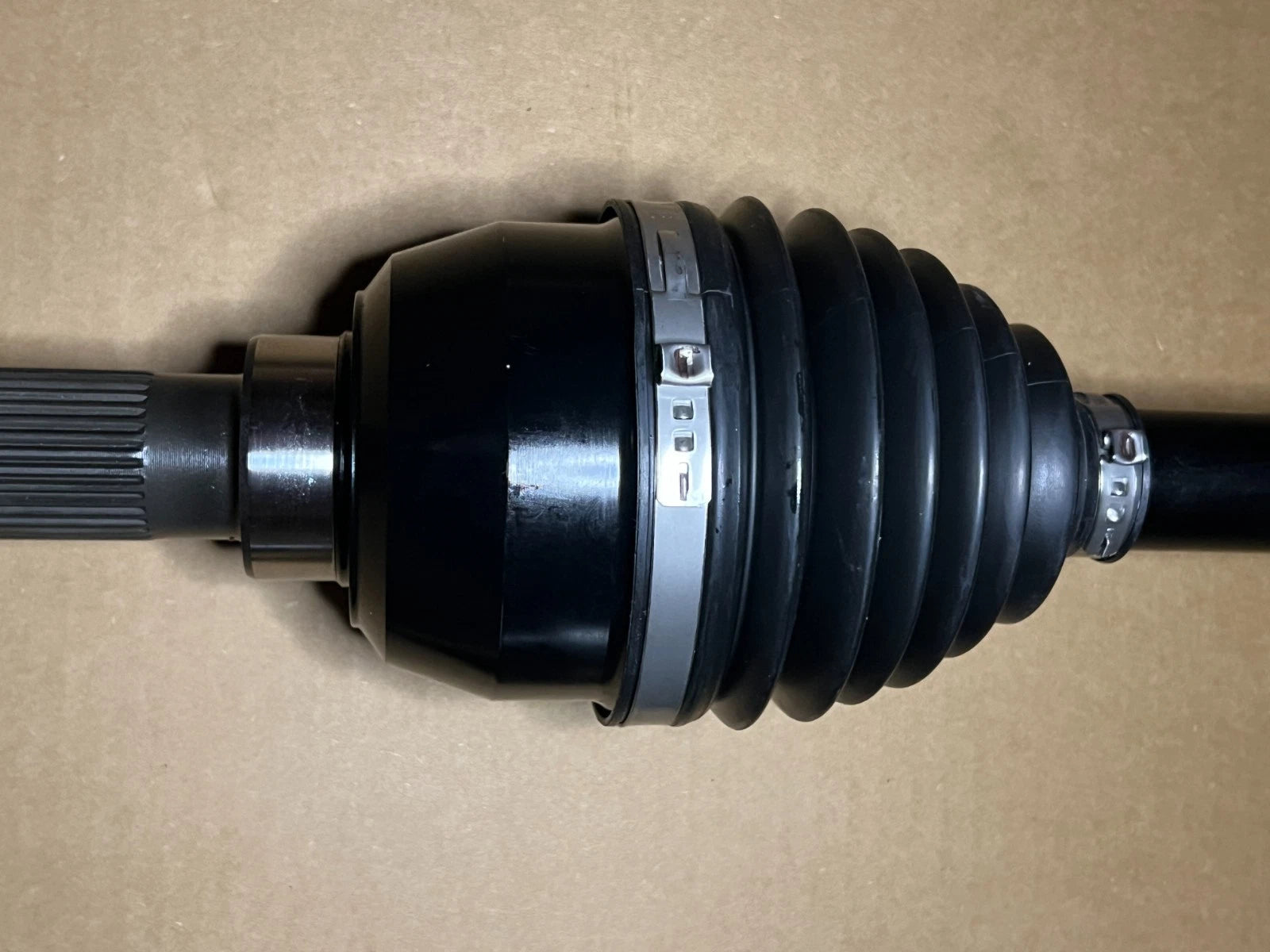

HUMMER H1 HMMWV A2 12K HEAVY DUTY REAR RH/LH PAIR HALFSHAFT W/O ABS RING

HOLE DIAMETER

0.450 INCHES NOMINAL

HOLE DEPTH

1.000 INCHES NOMINAL

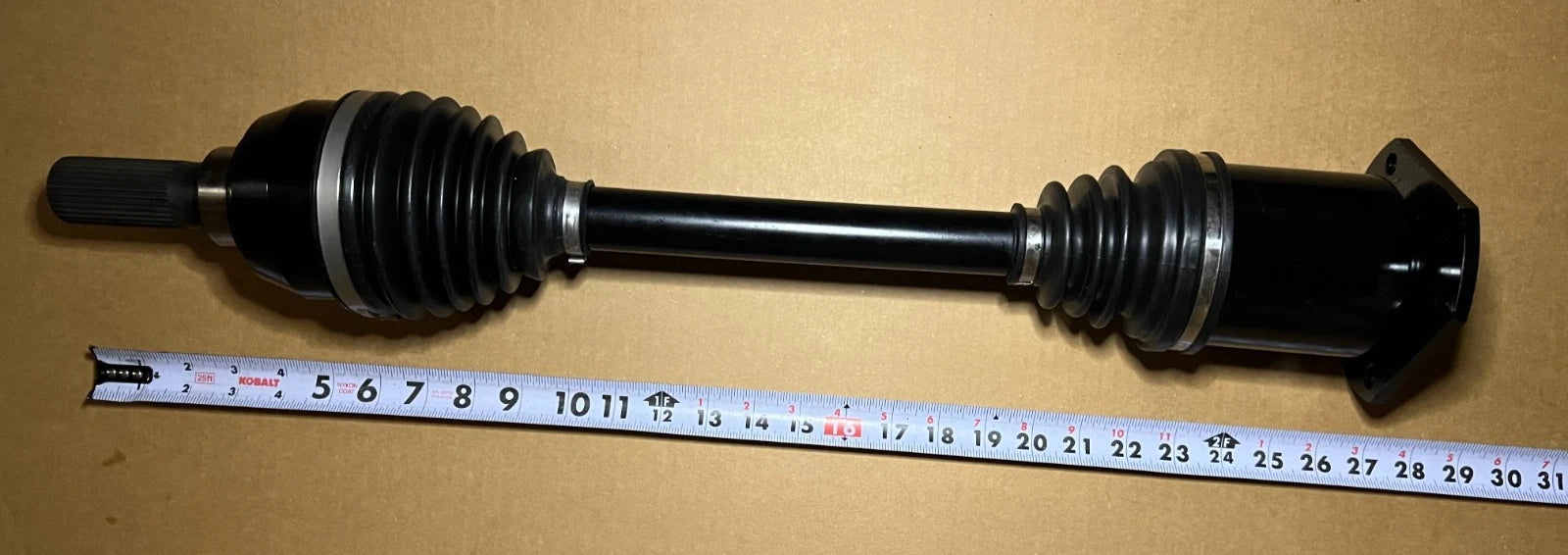

OVERALL LENGTH

28.460 INCHES NOMINAL

METALLIC HARDNESS RATING

50.0 NOMINAL ROCKWELL C

END ITEM IDENTIFICATION

2320-01-412-0143

HOLE SCREW THREAD SERIES DESIGNATOR

UNC

HOLE THREAD DIRECTION

RIGHT-HAND

SECOND END PITCH DIAMETER

1.333 INCHES NOMINAL

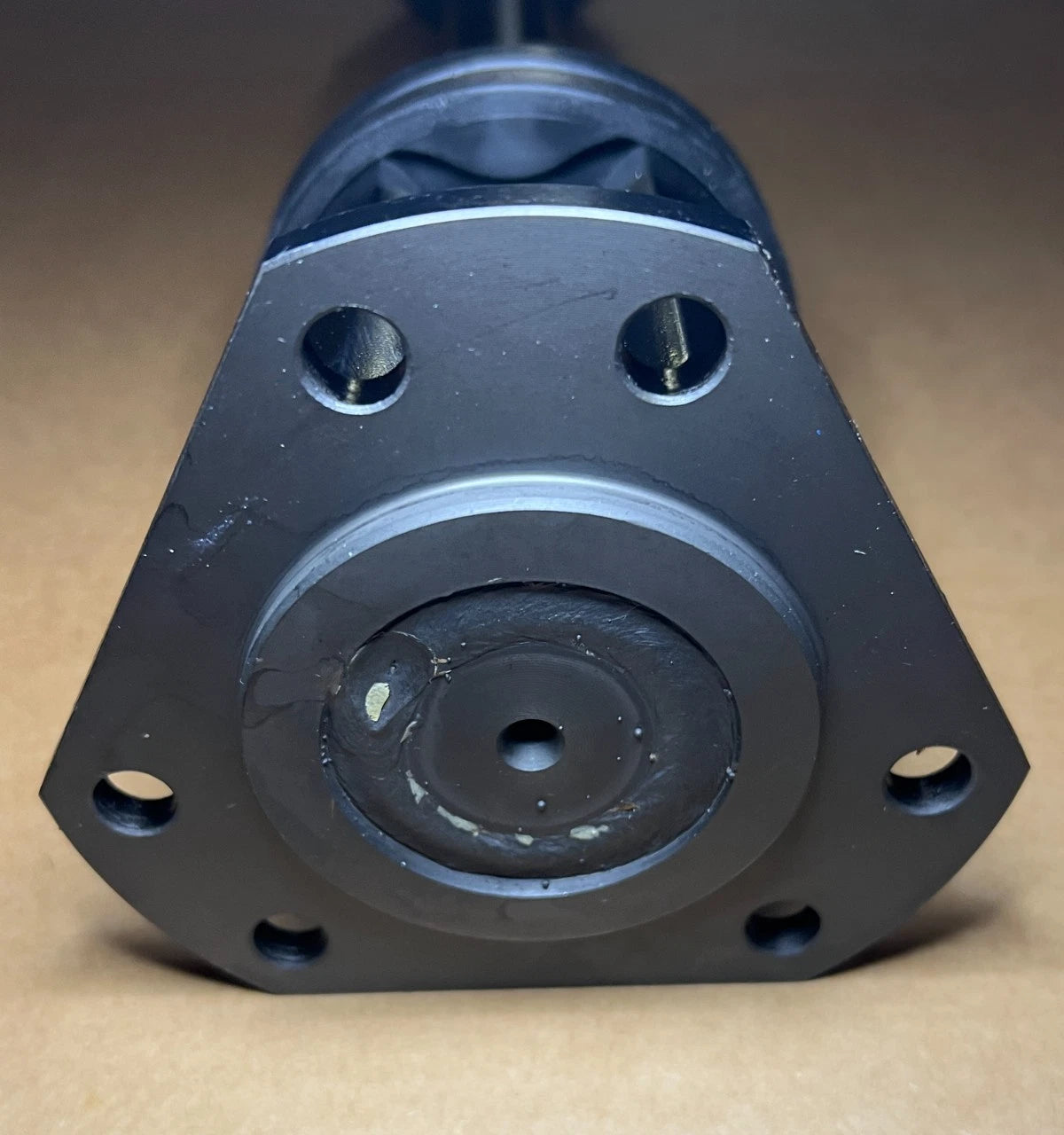

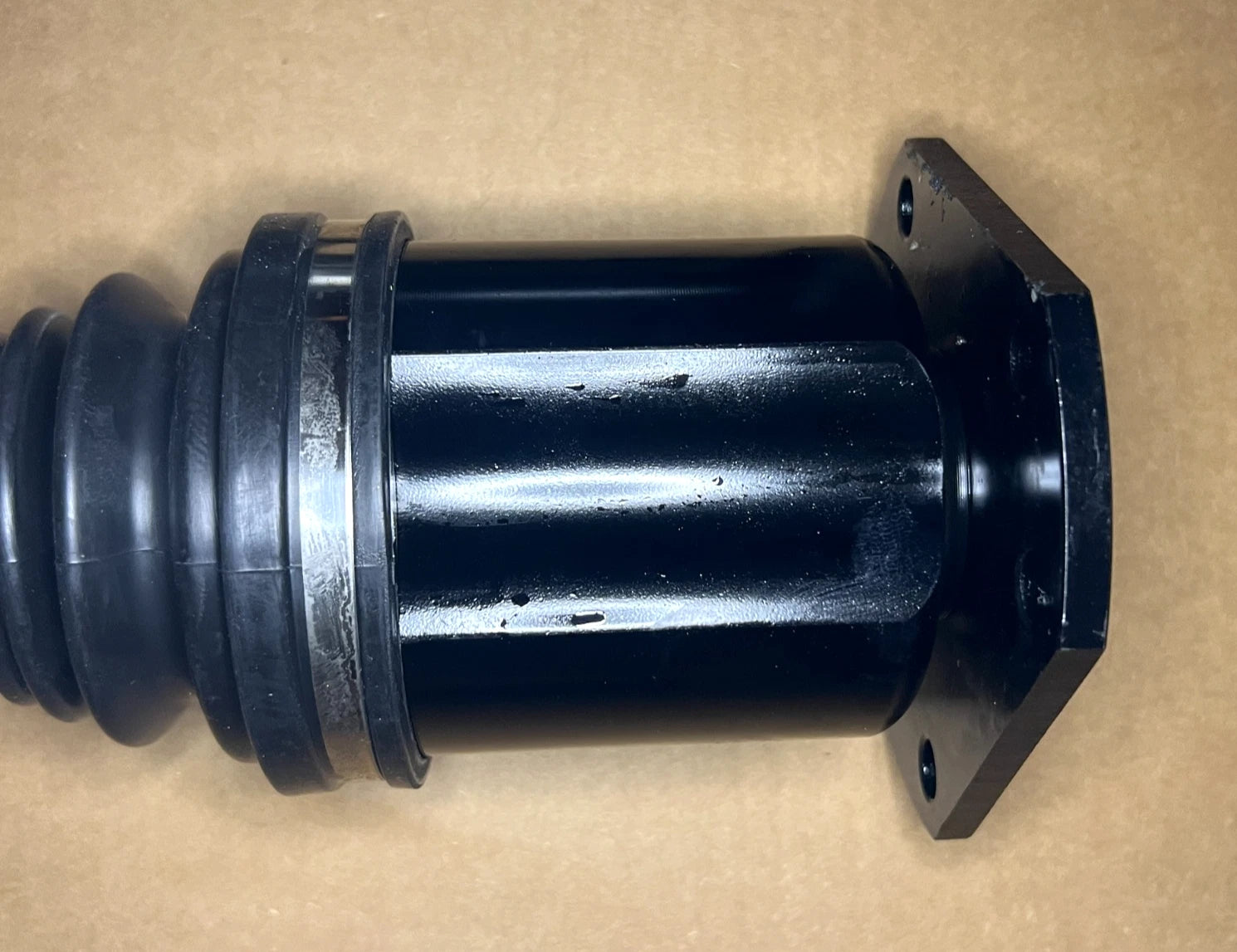

FIRST END TYPE

FLANGED

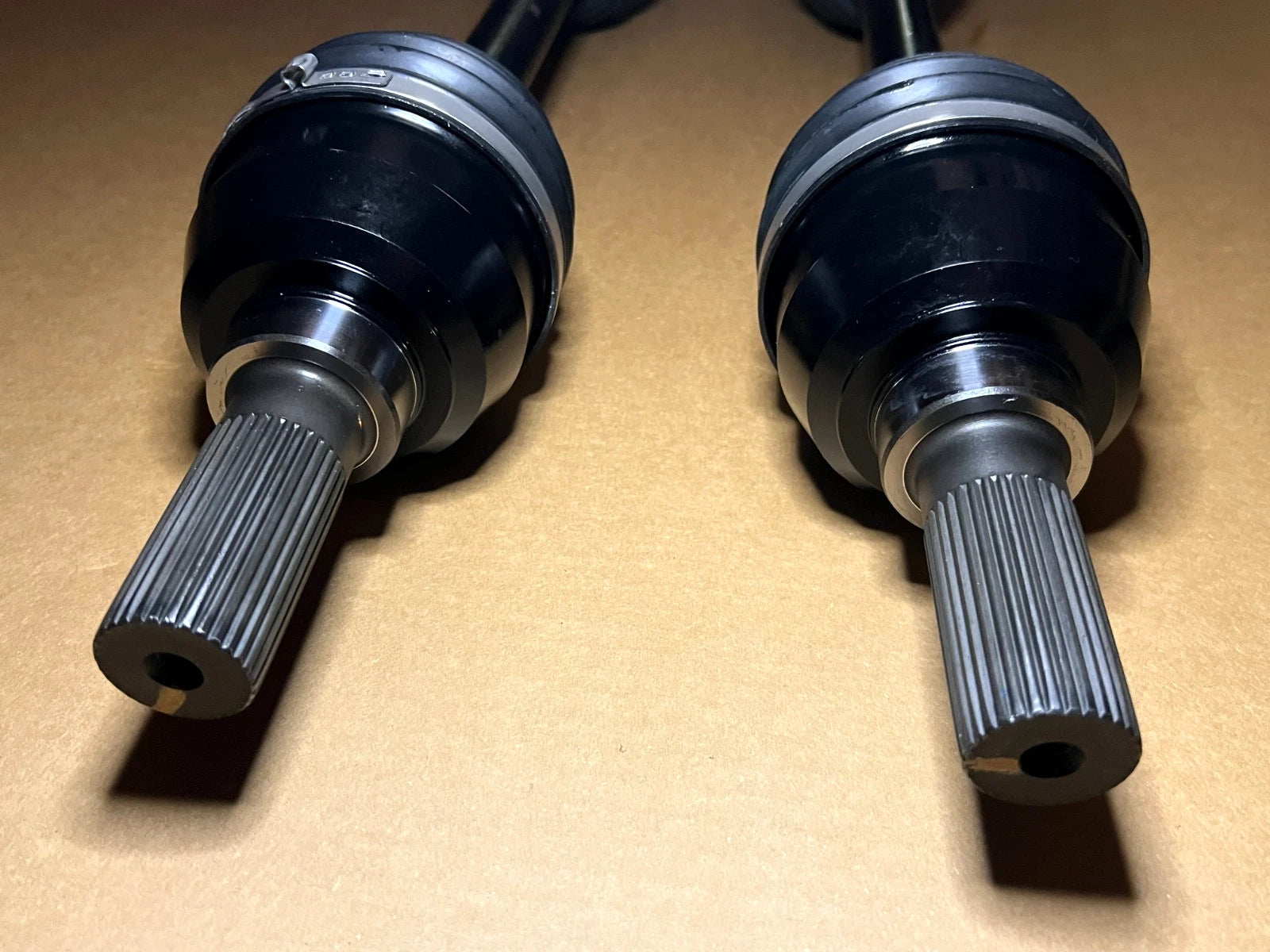

SECOND END TYPE

SPLINED

HOLE QUANTITY

1

MOUNTING FACILITY TYPE AND QUANTITY

6 UNTHREADED HOLE

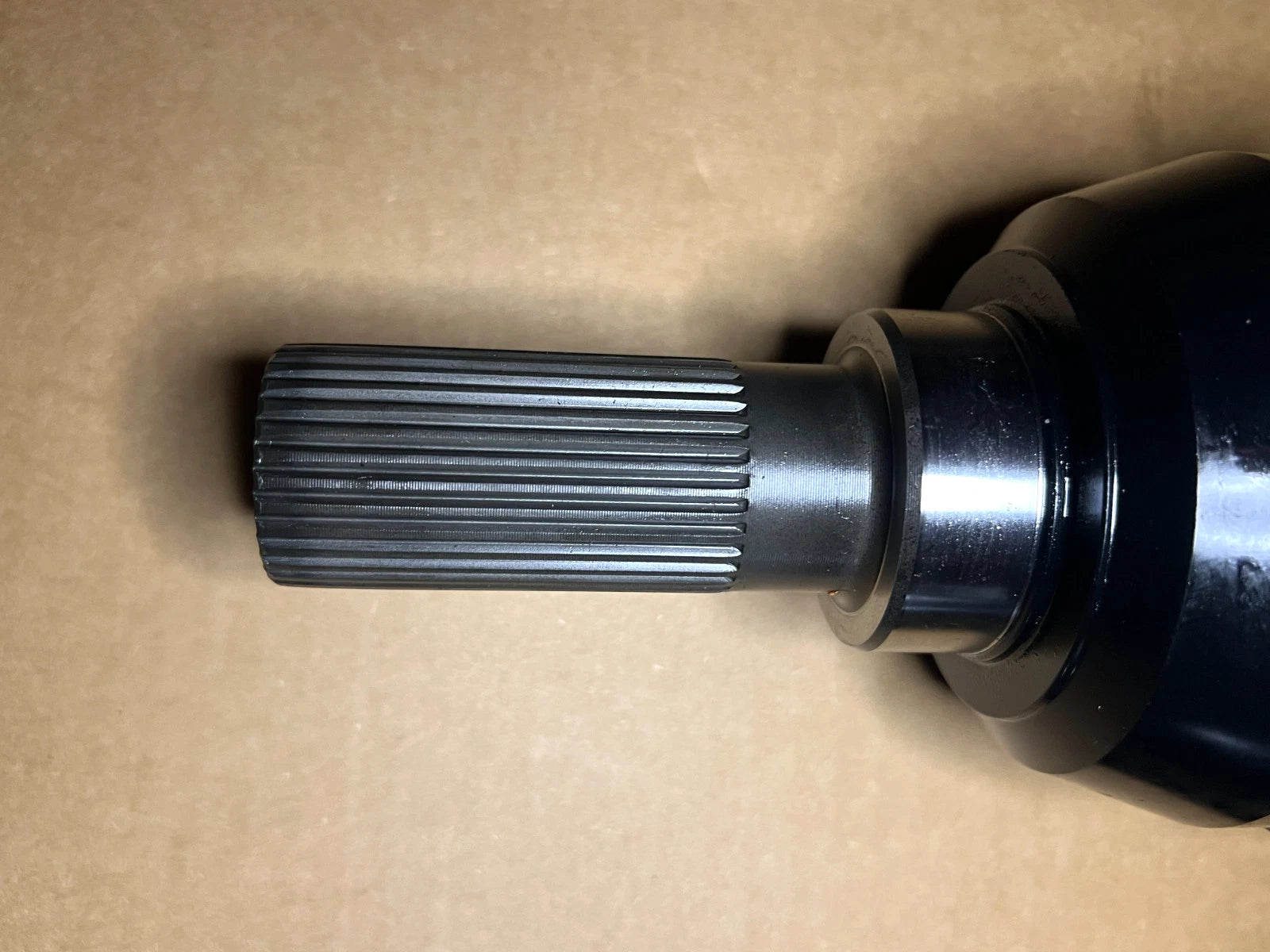

SECOND END SPLINE QUANTITY

32

HOLE THREAD SIZE

3/8-16

FIRST END BEARING SEAT

NOT INCLUDED

SECOND END SPLINE TYPE

INVOLUTE

SECOND END SPLINE PRESSURE ANGLE IN DEG

45.0

SECOND END BEARING SEAT

NOT INCLUDED

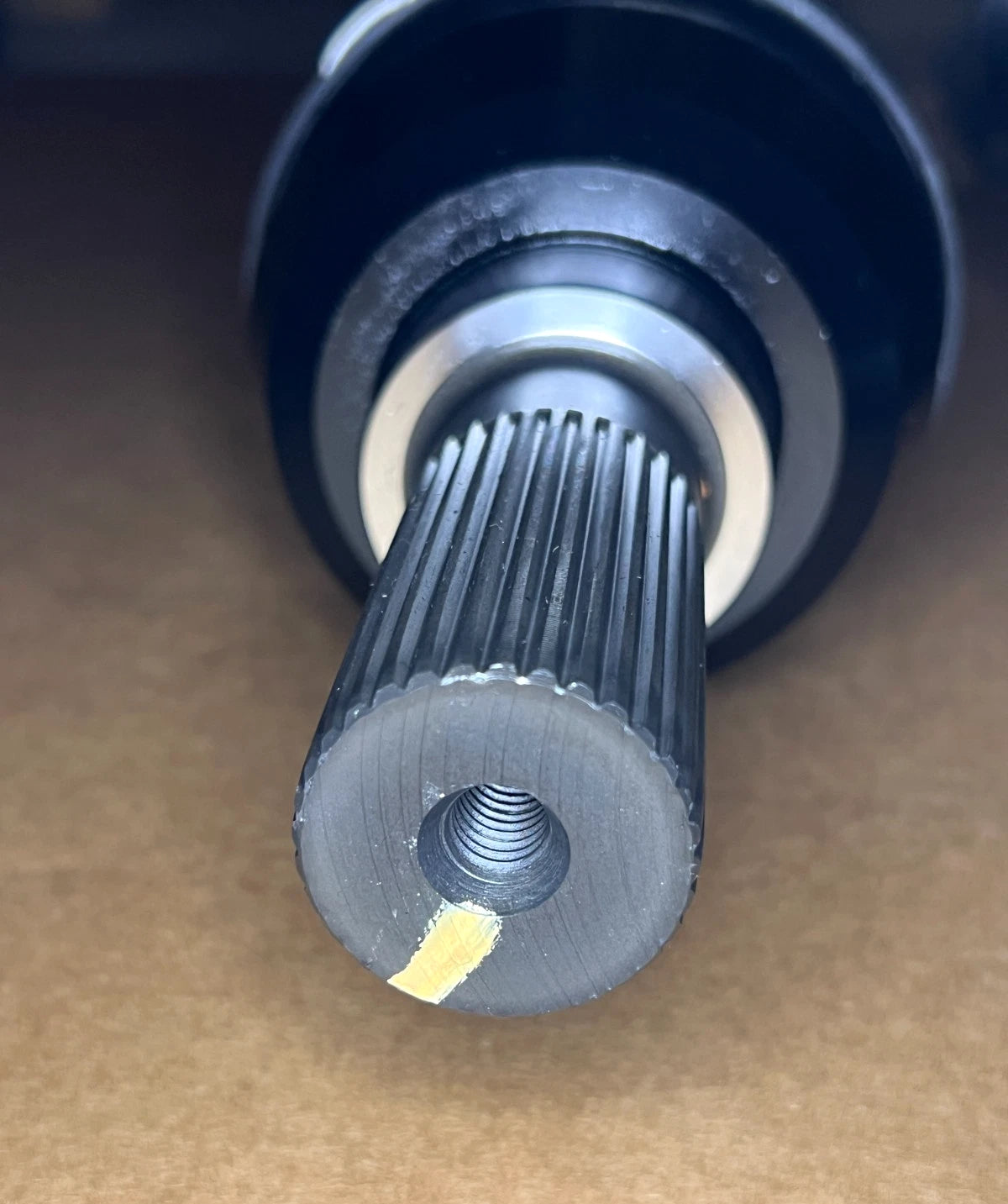

END HOLE TYPE

THREADED

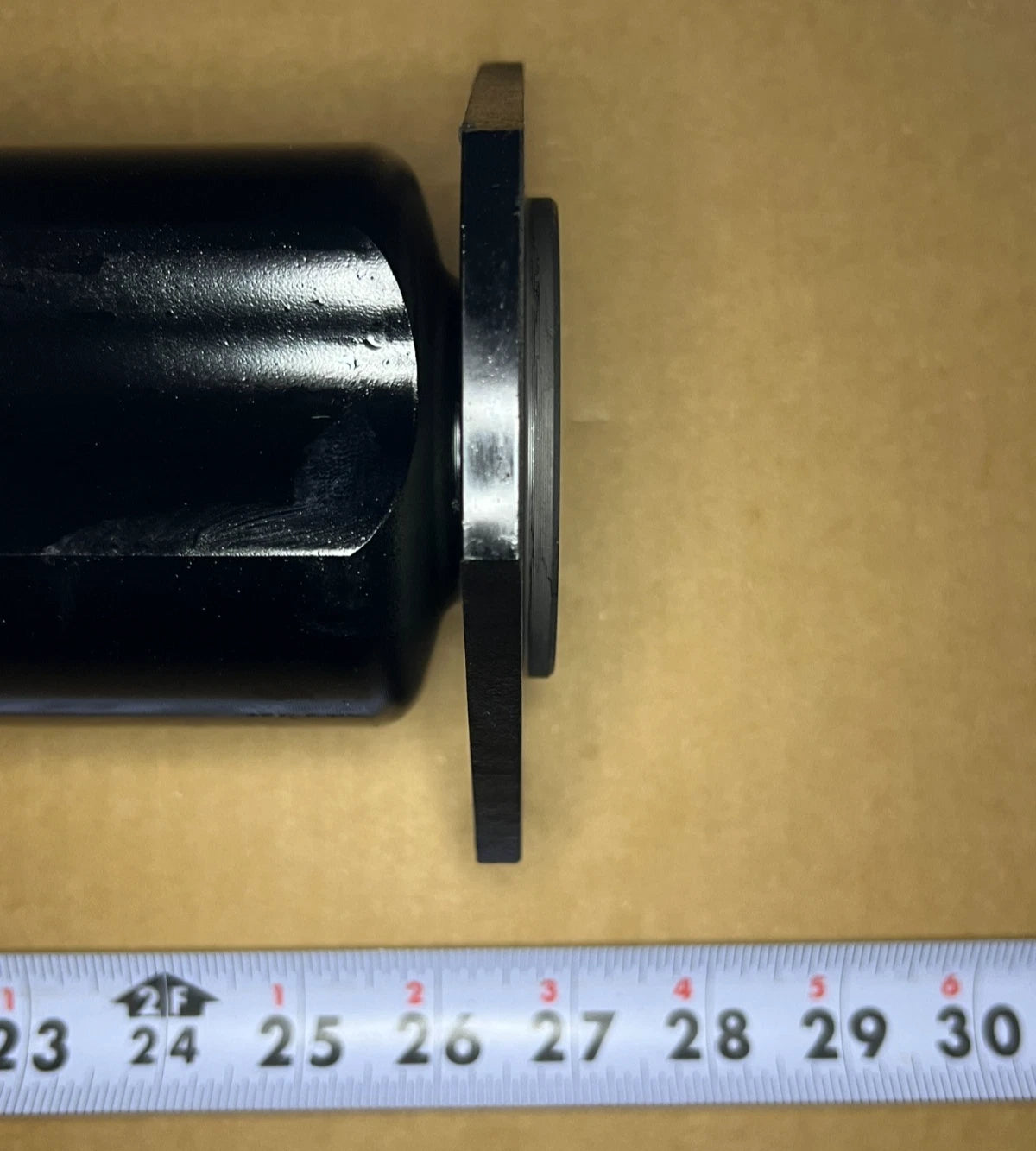

FLANGE OVERALL THICKNESS

3.550 INCHES NOMINAL

FLANGE THICKNESS AT MOUNTING HOLE

0.200 INCHES NOMINAL

SPECIAL FEATURES

REAR HALFSHAFT
