HMMWV M998 12447007 COMPARTMENT VEHICULAR HEATER 12447007-19207 2540-01-474-3217
HMMWV M998 12447007 COMPARTMENT VEHICULAR HEATER 12447007-19207 2540-01-474-3217
Regular price
$1,042.10 USD
Regular price
Sale price
$1,042.10 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 2540-01-474-3217 Specs and cross-references for NSN 2540-01-474-3217 (opens in a new tab) ↗
AM GENERAL 12447007-19207 Vehicular Compartment Heater (2540-01-474-3217)

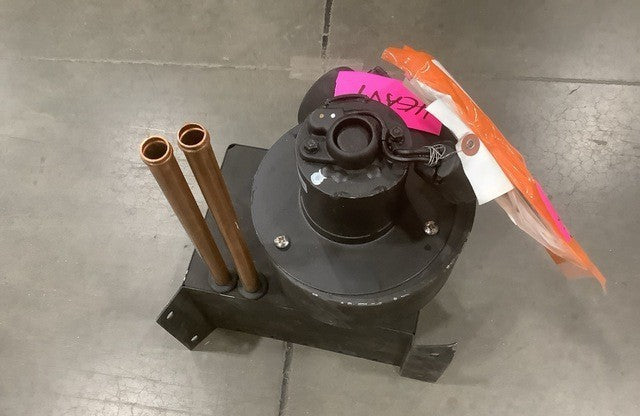

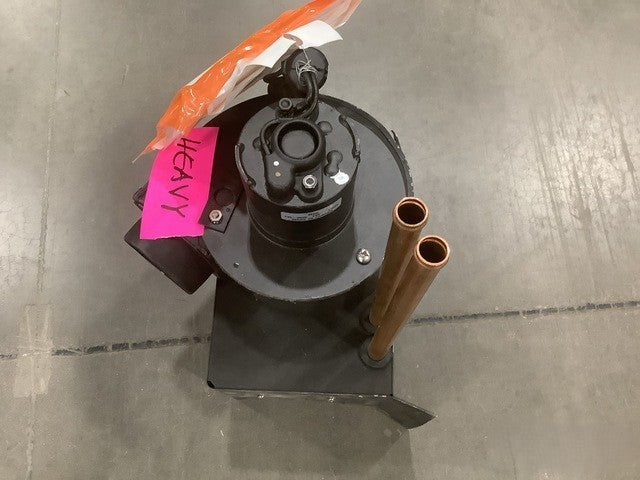

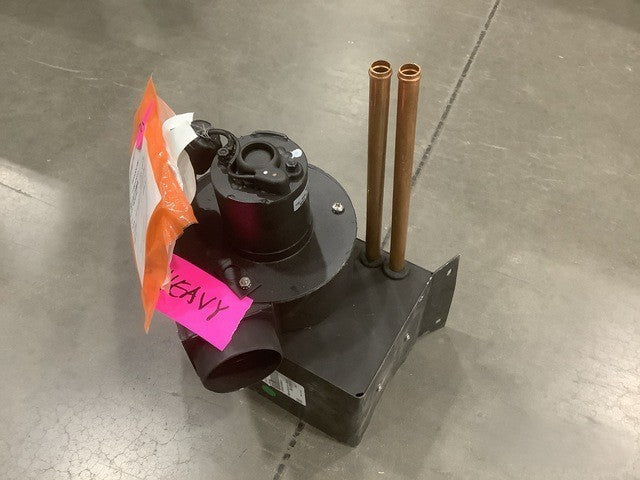

Hot water compartment heater with blower wheel circulation, for the HMMWV M998.
Part Information
- Manufacturer: AM General LLC
- Part Number: 12447007-19207
- NSN: 2540-01-474-3217
- End Item: HMMWV M998
- CAGE Code: 34623
Specifications
- Heat Medium Type: Hot Water
- Heating Element Type: Hot Water Coil
- Air Circulation Device: Blower Wheel
- Maximum Air Flow Rate: 245.0 CFM
- Heat Delivery Rate: 25,500 BTU
- Width: 9.590 in (nominal)
- Height: 15.800 in (nominal)
- Surface Finish: Green No. 383 CARC paint for steel exterior surfaces, applied IAW MIL-C-53072 (except primer and salt spray testing)
- Surface Treatment: Paint and Primer
Fits
This NSN is listed in the U.S. Army repair parts manuals for:
- HMMWV: all A2 models, plus M1123 (TM 9-2320-280-24P) — parts diagram: Fig. 333, item 11
- HMMWV (up-armored / expanded capacity): M1113, M1114, M1151, M1151A1, M1152, M1152A1, M1165, M1165A1, M1167 (TM 9-2320-387-24P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
