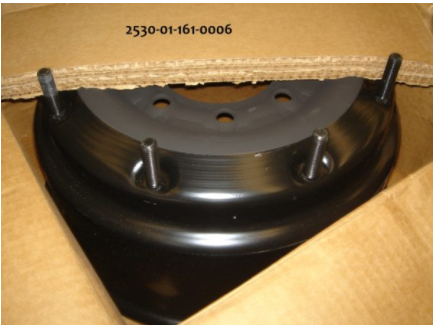

HMMWV Humvee M998 8 Stud Rim,wheel,pneumatic Tire | NSN 2530-01-161-0006
HMMWV Humvee M998 8 Stud Rim,wheel,pneumatic Tire | NSN 2530-01-161-0006
Regular price
$175.00 USD
Regular price
Sale price
$175.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 2530-01-161-0006 Specs and cross-references for NSN 2530-01-161-0006 (opens in a new tab) ↗
IM,WHEEL,PNEUMATIC TIRE
NSN: 2530-01-161-0006
NSN Flat: 2530011610006
NSN Alternative: 2530-01-417-8450
Part Number: 89322, 5584831
| OVERALL WIDTH | 6.220 INCHES MINIMUM AND 6.280 INCHES MAXIMUM |
| TIRE DIAMETER FOR WHICH DESIGNED | 16.515 INCHES |
| SPLIT RIM FEATURE | INCLUDED |
| INTEGRAL MOUNTING BOLT HOLE LUG | INCLUDED |
| STYLE DESIGNATOR | FLAT CENTER LOCK |
Fits
This NSN is listed in the U.S. Army repair parts manuals for:
- HMMWV: M998, M1038, M966, M1097, M998A1, M1038A1, M966A1, M1097A1, M1097A2 (TM 9-2320-280-24P)
- HMMWV (up-armored / expanded capacity): M1113, M1114, M1151, M1151A1, M1152, M1152A1, M1165, M1165A1, M1167 (TM 9-2320-387-24P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
