HMMWV Humvee Body Mount Complete Set 12339244-3 5569270 12339244-2 M998 Hummer
HMMWV Humvee Body Mount Complete Set 12339244-3 5569270 12339244-2 M998 Hummer
Regular price
$299.00 USD
Regular price
Sale price
$299.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

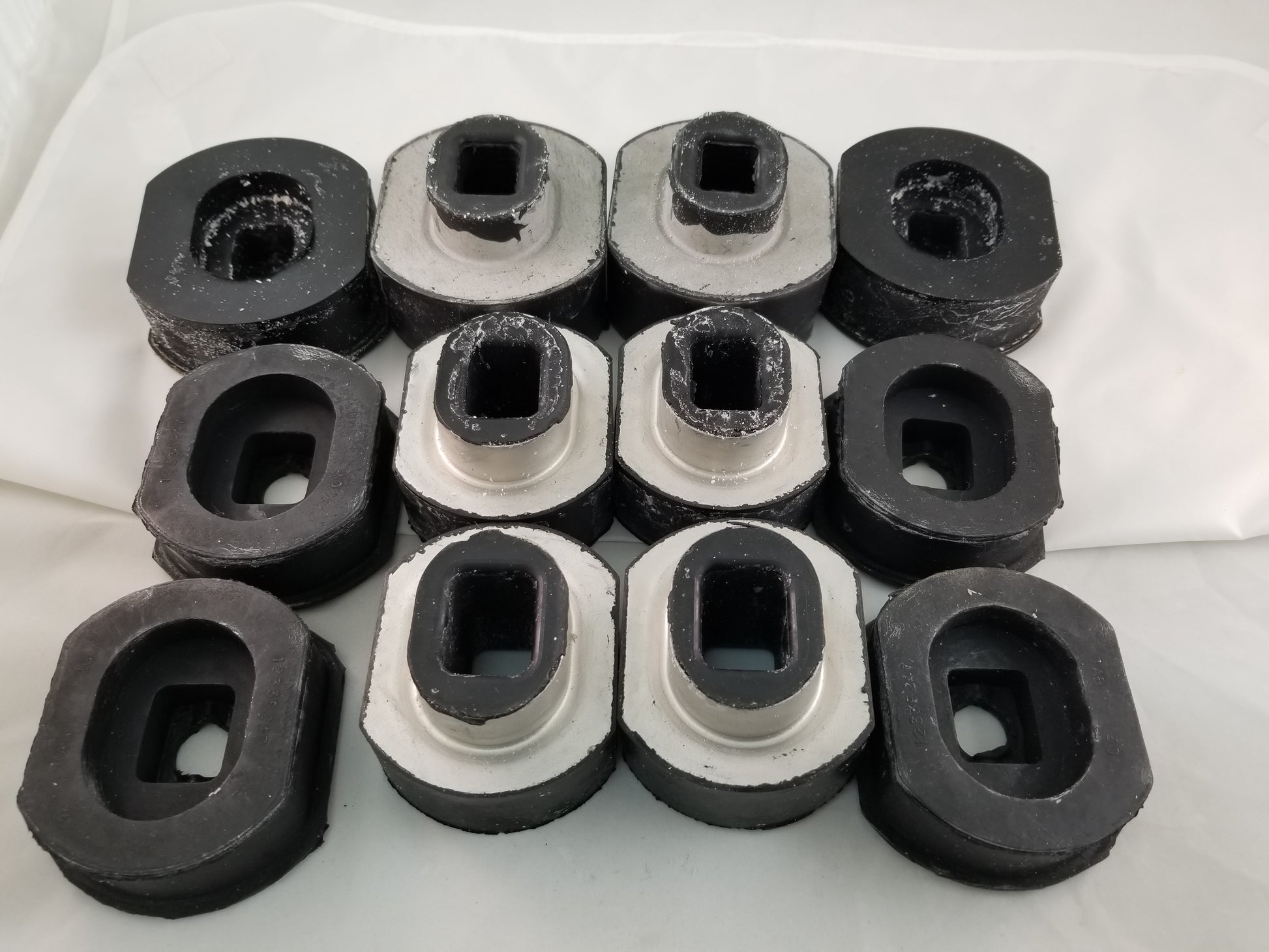

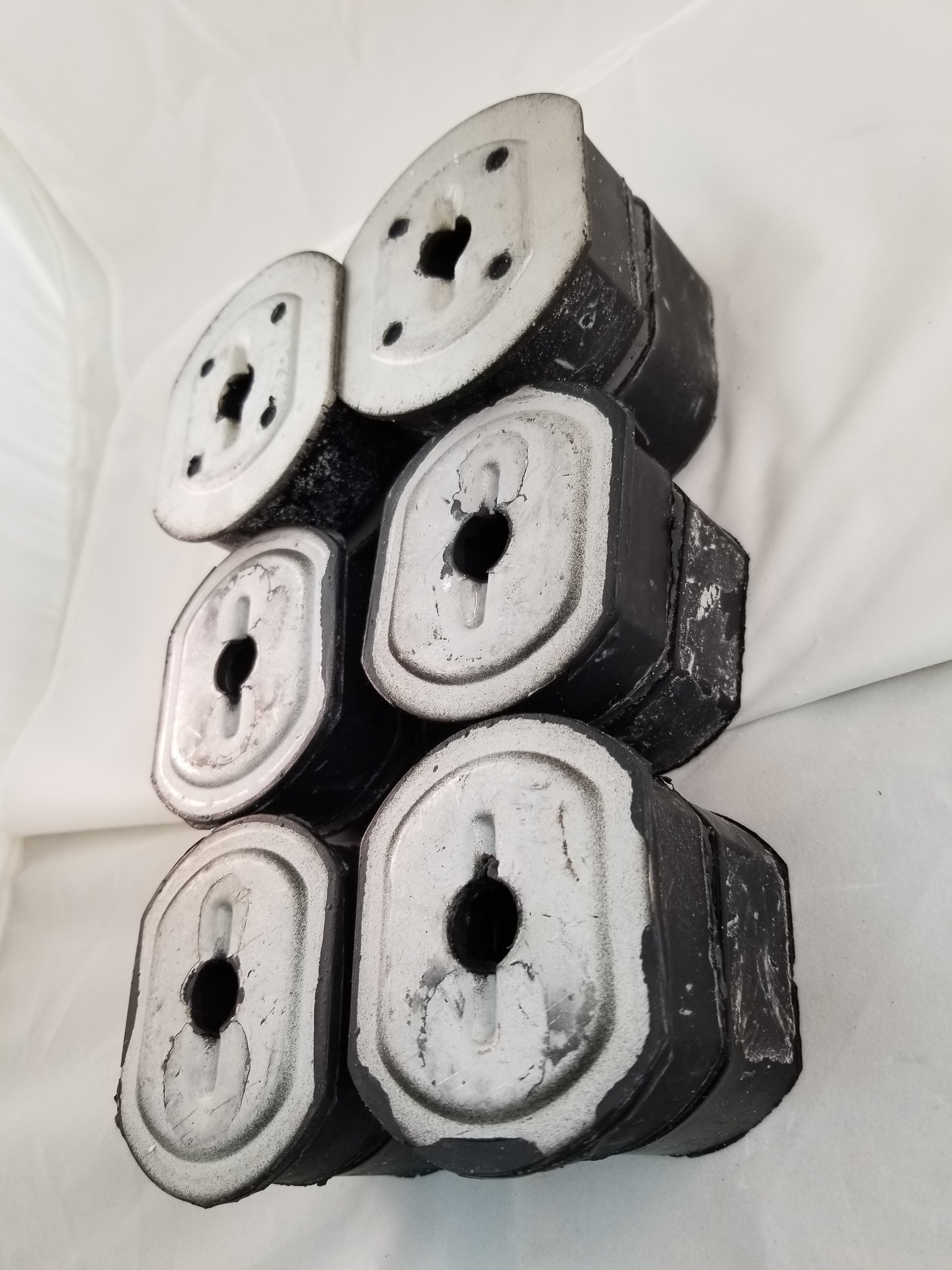

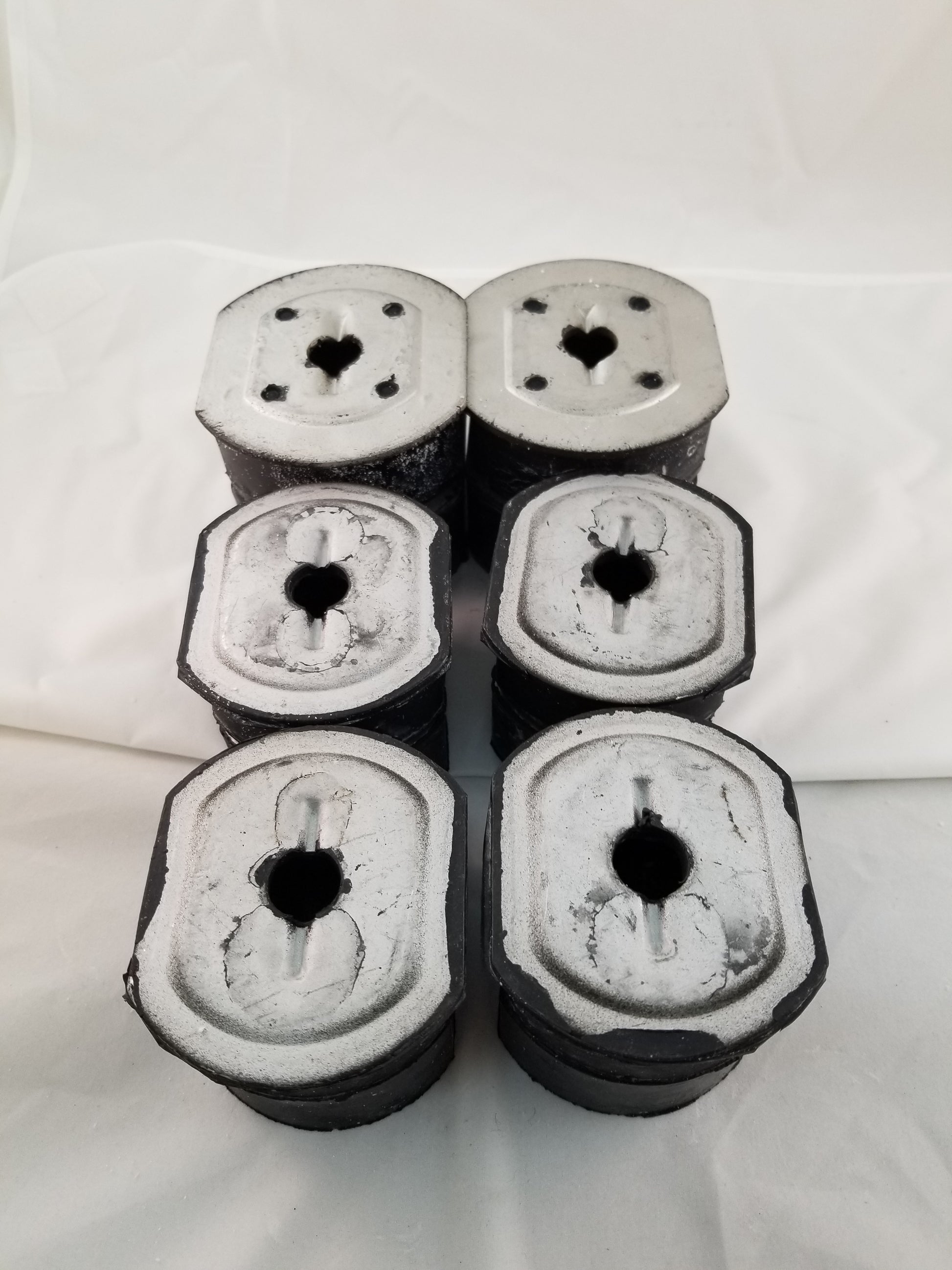

(12) HMMWV M998 Humvee Body Mount Set
Includes All 12 Mounts:
(4) Upper Front 5569270
(4) Lower Front 12339247-1
(2) Upper Intermediate 12339244-3
(2) Lower Intermediate 12339247-3
For M998A1, M998 M996, M1045, M1025A2,M1043A2 etc
Upper C and D Beam and Lower C and D Beam
Upper A beam, Lower A beam
Fits H1: 1992-2006
Great for replacing all your old body mounts. The residue seen in pictures is rubber preservative. These are new surplus.
We sell all of these individually, but you save when you buy as a kit.
Fits

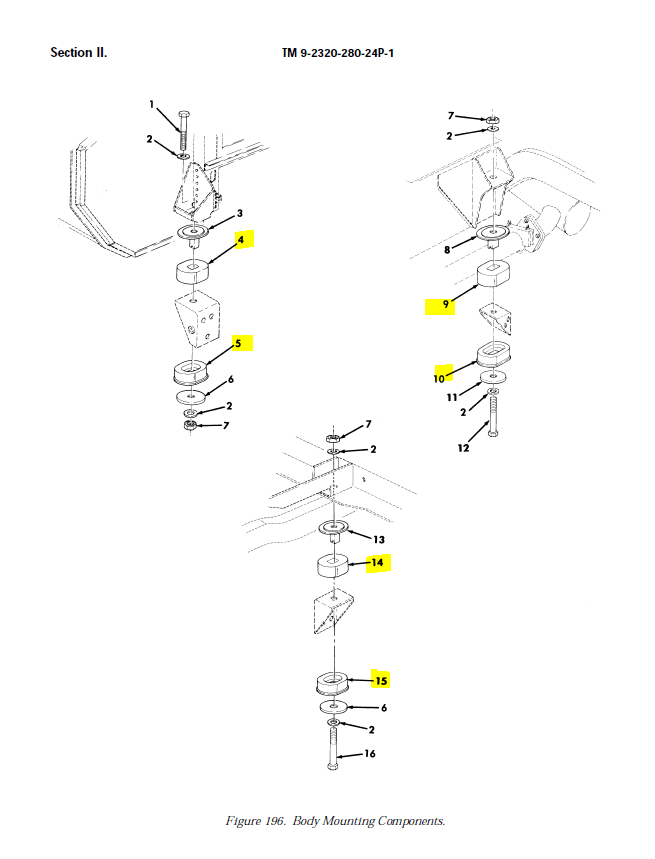

Part numbers 12339244-3 (NSN 5340-01-209-7802), 5569270 (NSN 5342-01-189-5452), 12339247-1 (NSN 5342-01-186-7236) are listed in the U.S. Army repair parts manuals for:
- HMMWV: M998, M1038, M966, M1097, M998A1, M1038A1, M966A1, M1097A1, M1097A2 (TM 9-2320-280-24P)
- HMMWV (up-armored / expanded capacity): M1113, M1114, M1151, M1151A1, M1152, M1152A1, M1165, M1165A1, M1167 (TM 9-2320-387-24P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
