NSN 2590-01-566-3754 Specs and cross-references for NSN 2590-01-566-3754 (opens in a new tab) ↗

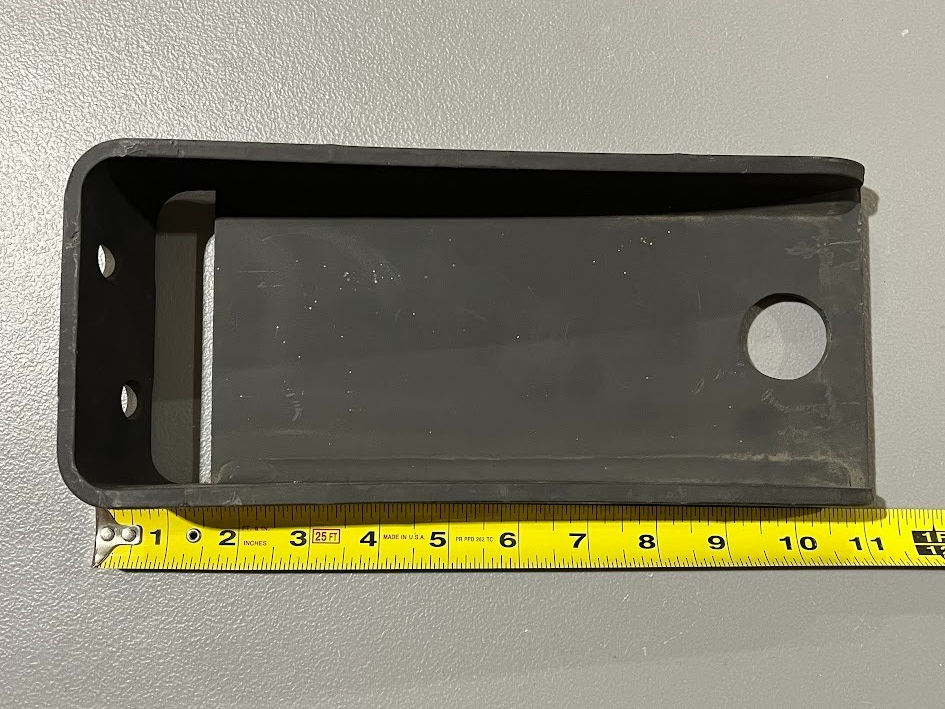

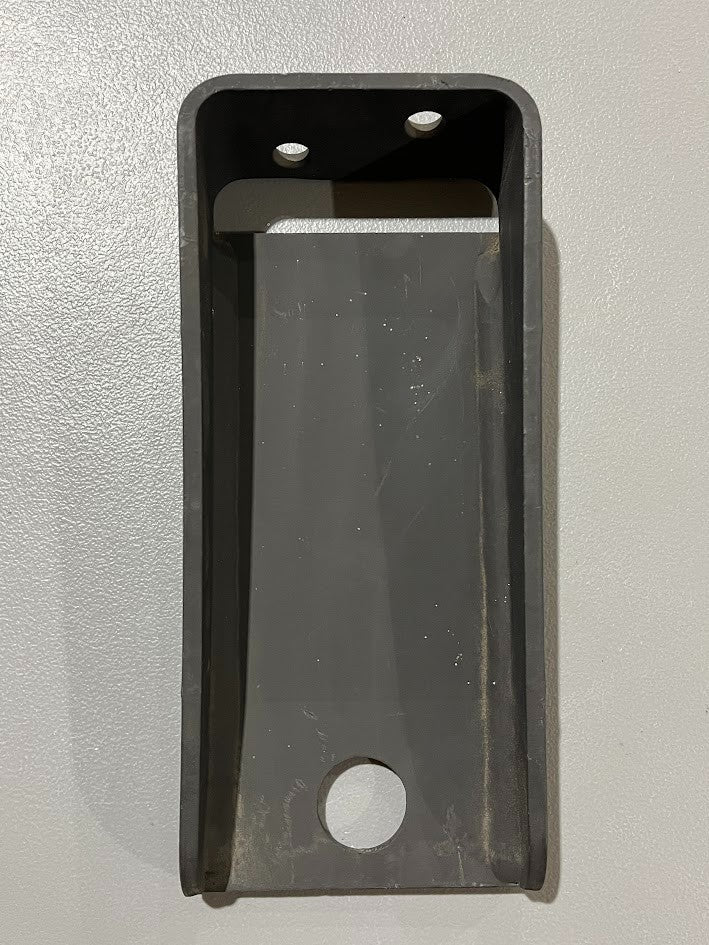

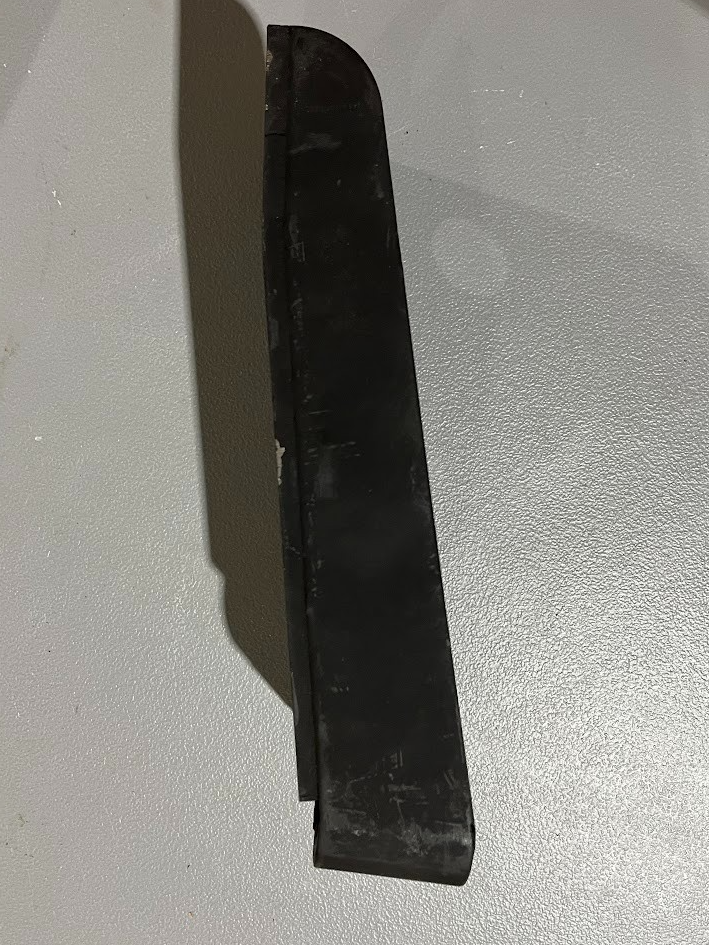

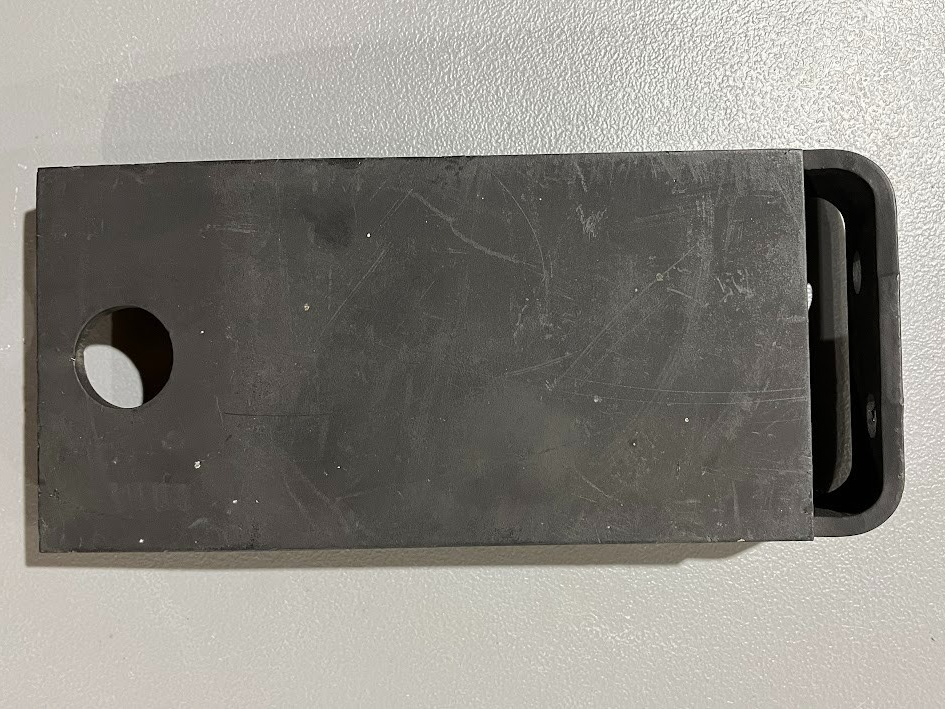

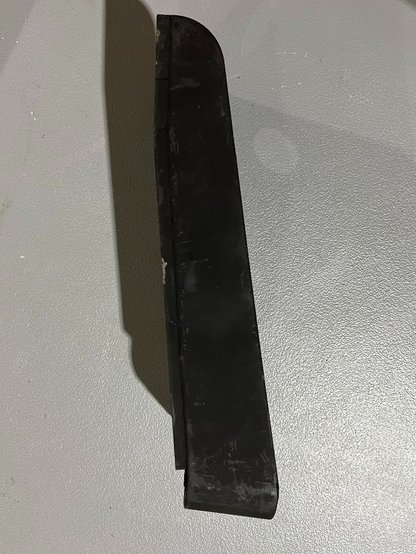

AM GENERAL LLC 6039565 Radiator Mount Lower Bracket Assembly (2590-01-566-3754)
Steel radiator mount lower bracket assembly for the HMMWV 1 1/4-Ton Truck.
Part Information
- Manufacturer: AM General LLC
- Part Number: 6039565
- NSN: 2590-01-566-3754
- End Item: HMMWV 1 1/4-Ton Truck
- CAGE Code: AM GENERAL LLC
Specifications
- Overall Length: 10.480 in (nominal)
- Overall Height: 3.660 in (nominal)
- Overall Width: 4.750 in (nominal)
- Material: Steel - AST-A656 Grade 50, or AST-A588 Grade Optional, or SAE J1442 Grade 345A or 345F, or AST-A572 Grade 50
- Surface Treatment: Paint, Black 37030 (Mfr Ref 34623-12369003)
