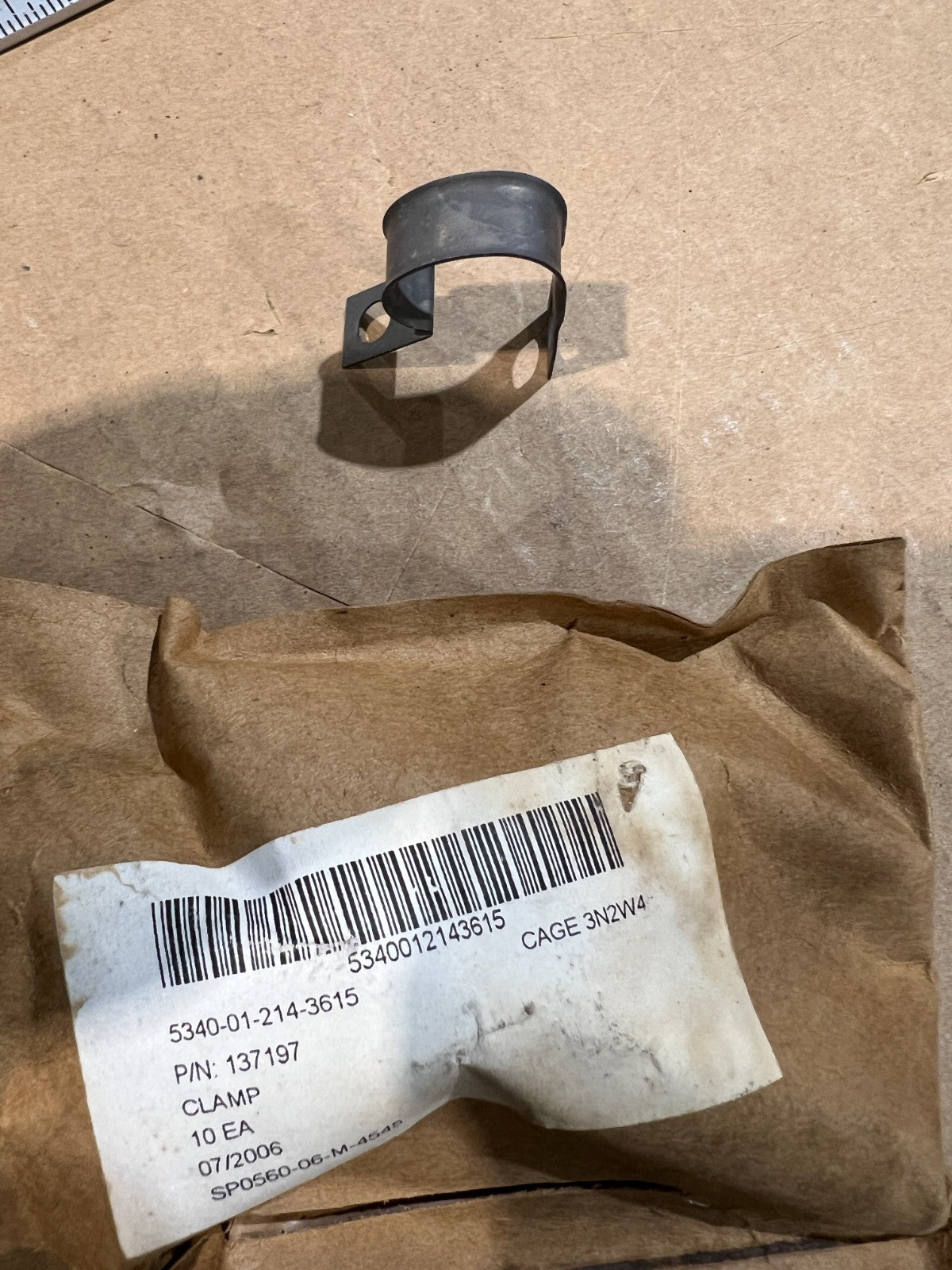

• Loop Clamp 1/4-TON NSN 5340-01-214-3615

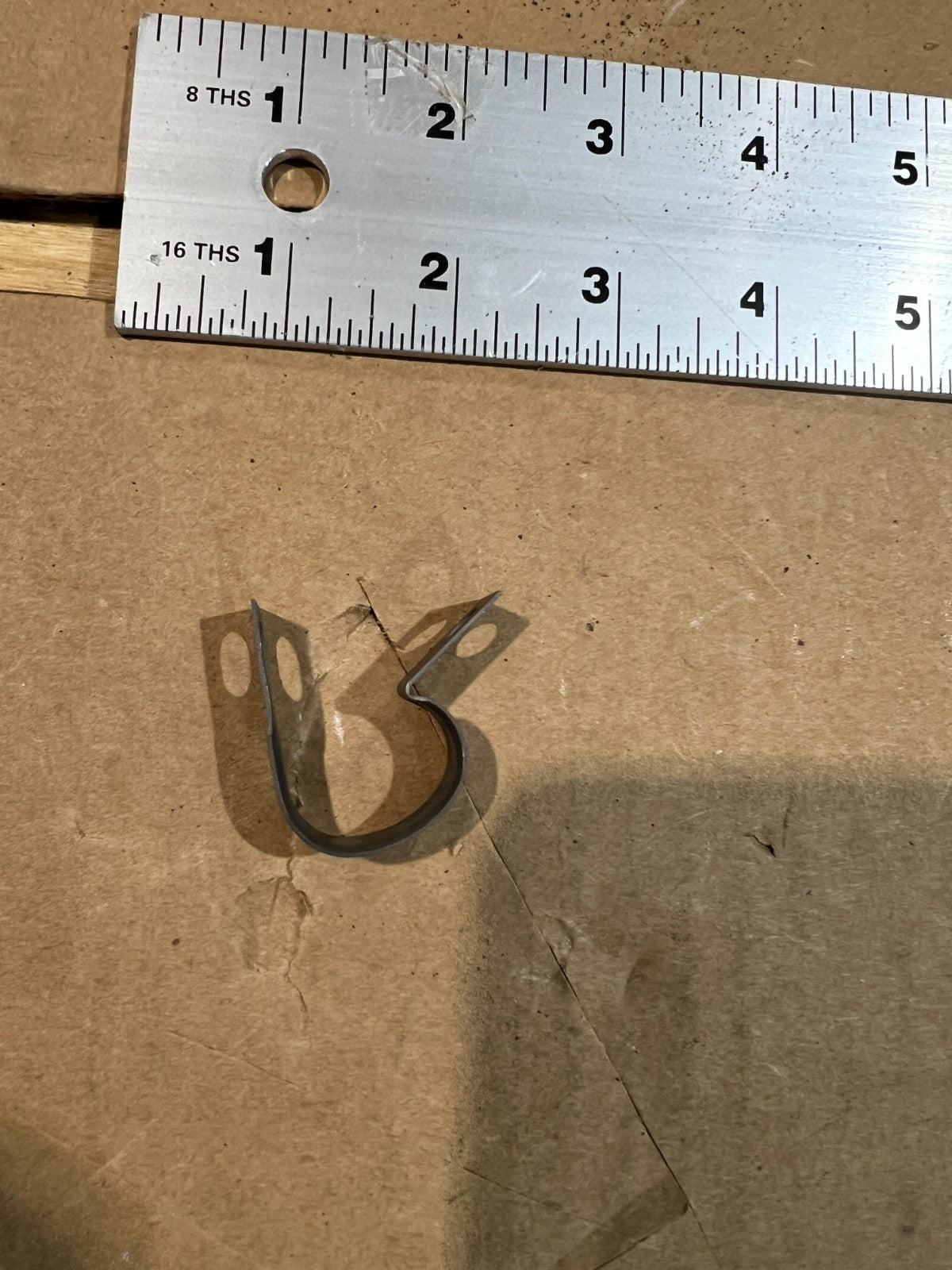

  • Loop Clamp 1/4-TON NSN 5340-01-214-3615 - photo 2

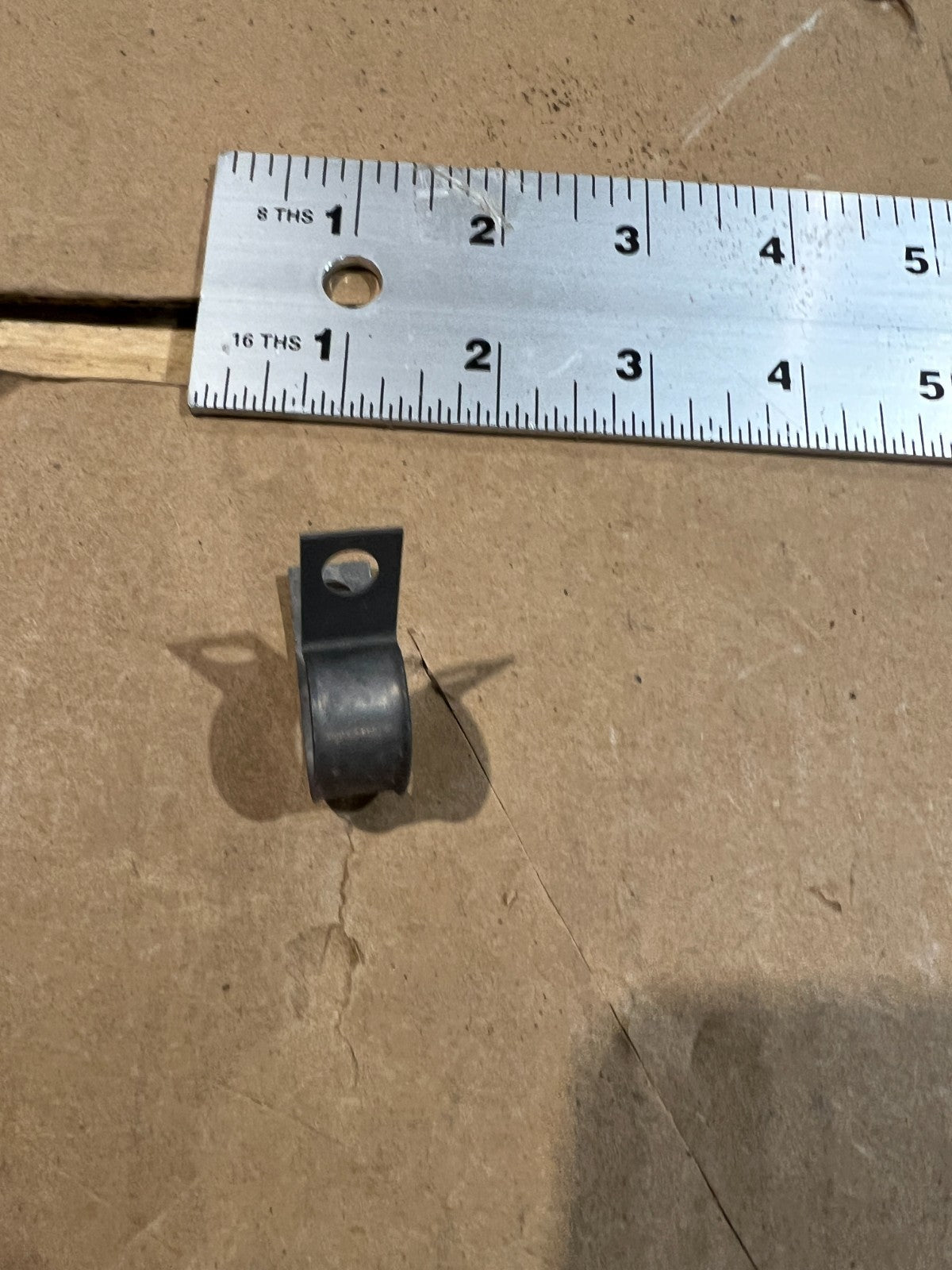

  • Loop Clamp 1/4-TON NSN 5340-01-214-3615 - photo 3
1 3

SECO Parts and Equipment

HMMWV 1 1/4-TON Truck 137197 Steel Loop Clamp 5340012143615 5340-01-214-3615 USA

HMMWV 1 1/4-TON Truck 137197 Steel Loop Clamp 5340012143615 5340-01-214-3615 USA

$25.00 USD
$25.00 USD
Sale Sold out
Shipping calculated at checkout.

NSN 5340-01-214-3615 Specs and cross-references ↗

5340PL0822130 Loop Clamp (5340-01-214-3615)

Steel loop clamp with phosphate-treated band, for the HMMWV 1 1/4-TON Truck.

Part Information

  • Part Number: 5340PL0822130
  • NSN: 5340-01-214-3615
  • End Item: HMMWV 1 1/4-TON Truck

Specifications

  • Tongue Hole Type: Oblong and Unthreaded Round
  • Slot Width: 0.281 in nominal
  • Slot Length: 0.375 in nominal
  • Overall Width: 0.500 in nominal
  • Diameter: 0.281 in nominal
  • Material Thickness: 0.025 in nominal
  • Center to Center Distance (Loop to Mounting Hole): 0.688 in nominal
  • Distance from Loop Center to Tongue End: 0.985 in nominal
  • Loop Inside Diameter: 0.625 in nominal
  • Material: Band, Steel Comp 1010 (SAE)
  • Surface Treatment: Band, Phosphate

Fits

This NSN is listed in the U.S. Army repair parts manuals for:

  • HMMWV: all A0, A1 and A2 models (TM 9-2320-280-24P) — parts diagram: Fig. 333, item 6
  • HMMWV (up-armored / expanded capacity): M1113, M1114, M1151, M1151A1, M1152, M1152A1, M1165, M1165A1, M1167 (TM 9-2320-387-24P)

Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
