HMMWV 1 1/4-TON TRUCK 12342130 RH REARVIEW MIRROR ASSEMBLY 2540-01-314-9379 USA
HMMWV 1 1/4-TON TRUCK 12342130 RH REARVIEW MIRROR ASSEMBLY 2540-01-314-9379 USA
Regular price
$204.58 USD
Regular price
Sale price
$204.58 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 2540-01-314-9379 Specs and cross-references for NSN 2540-01-314-9379 (opens in a new tab) ↗

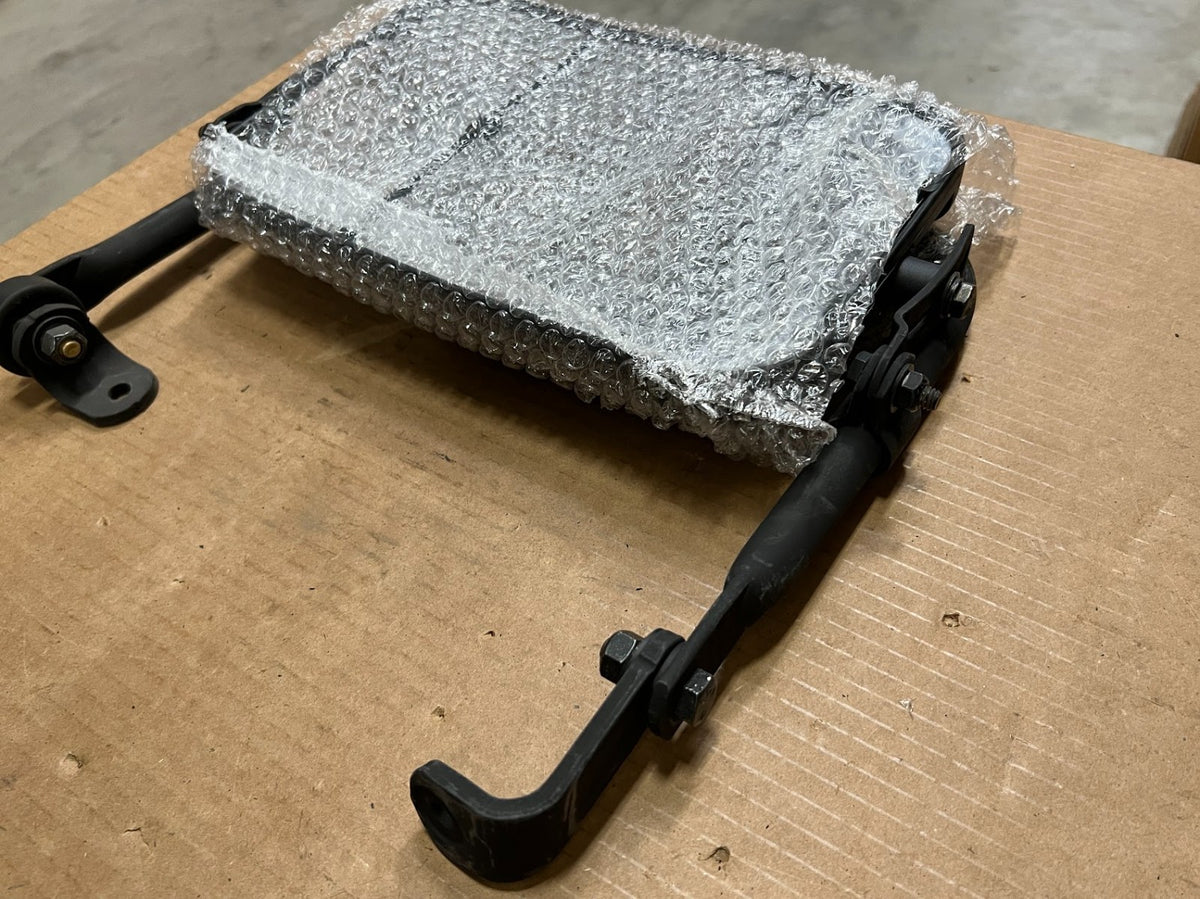

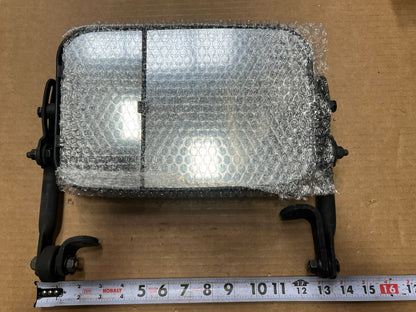

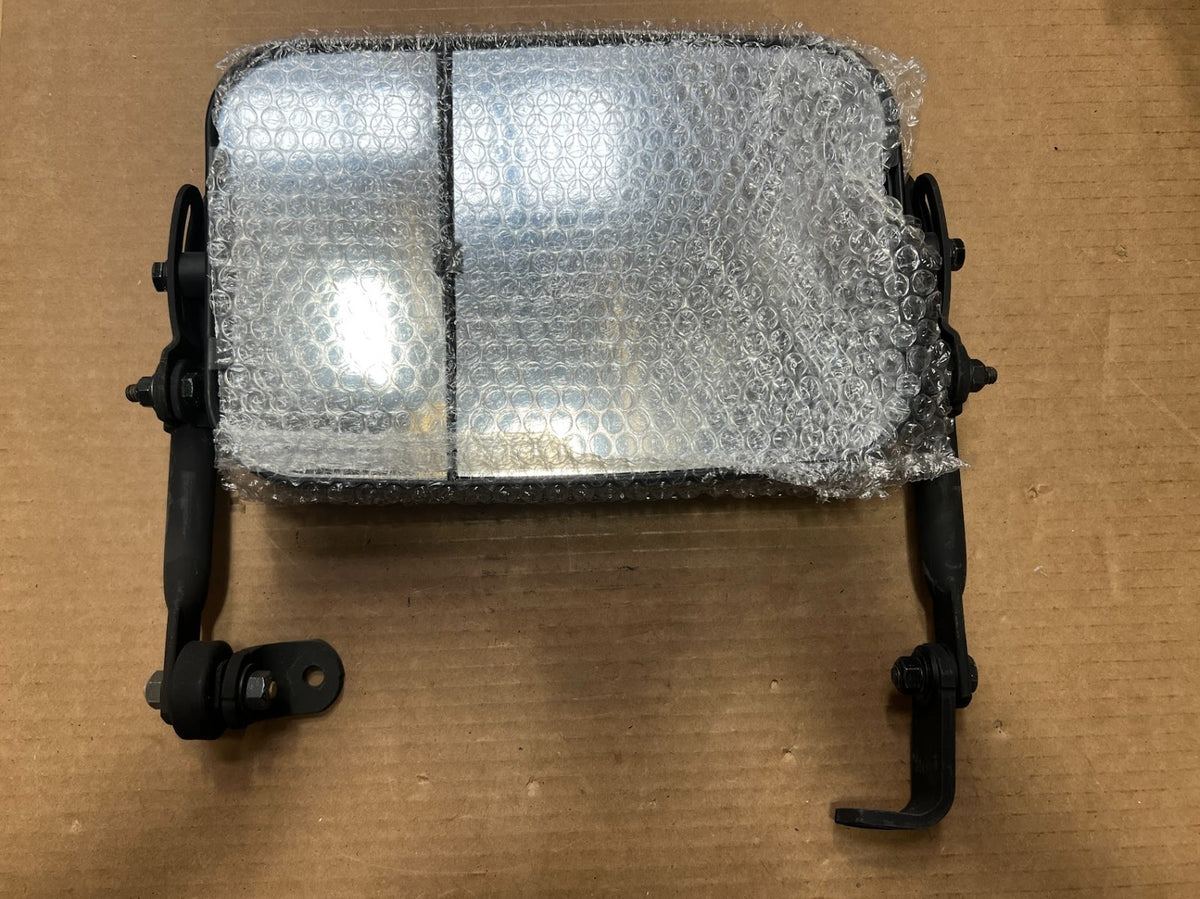

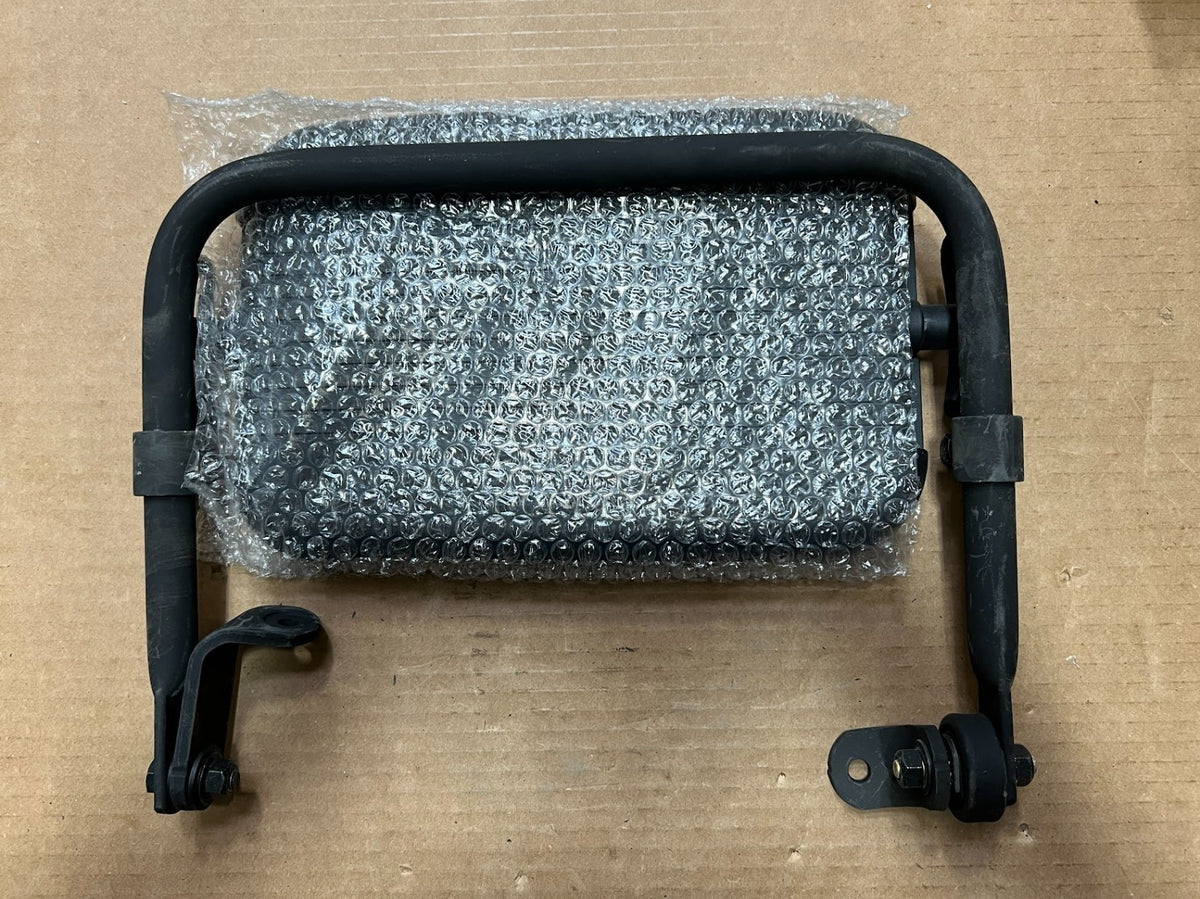

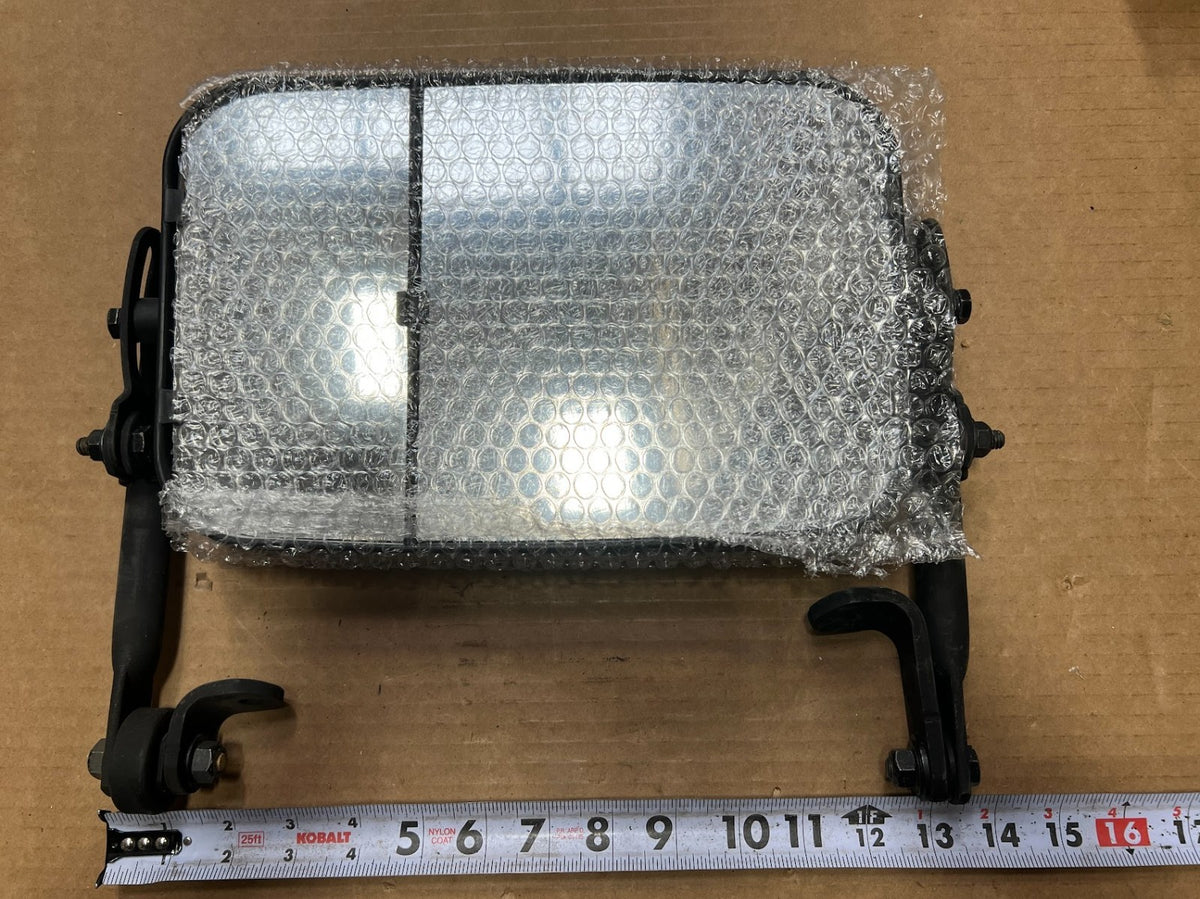

12342130 Right Hand Mirror Assembly (NSN 2540-01-314-9379)
Right hand rearview mirror assembly, bracket mounted, adjustable arm, for the HMMWV.
Part Information
- Part Number: 12342130
- Alternate Part Number: 2540PL0861414
- NSN: 2540-01-314-9379
- End Item: HMMWV
- CAGE Code: 9009H
Specifications
- Mounting Method: Bolted
- Mounting Configuration: Bracket Mounting
- Mounting Location: Outside
- Arm Length: 12.0 mm nominal
- Arm Length Adjustability: Adjustable
- Mirror Shape: Rectangular w/Round Ends
- Supplementary Features: Adjustable arm width 9.50 inches
Fits
This NSN is listed in the U.S. Army repair parts manuals for:

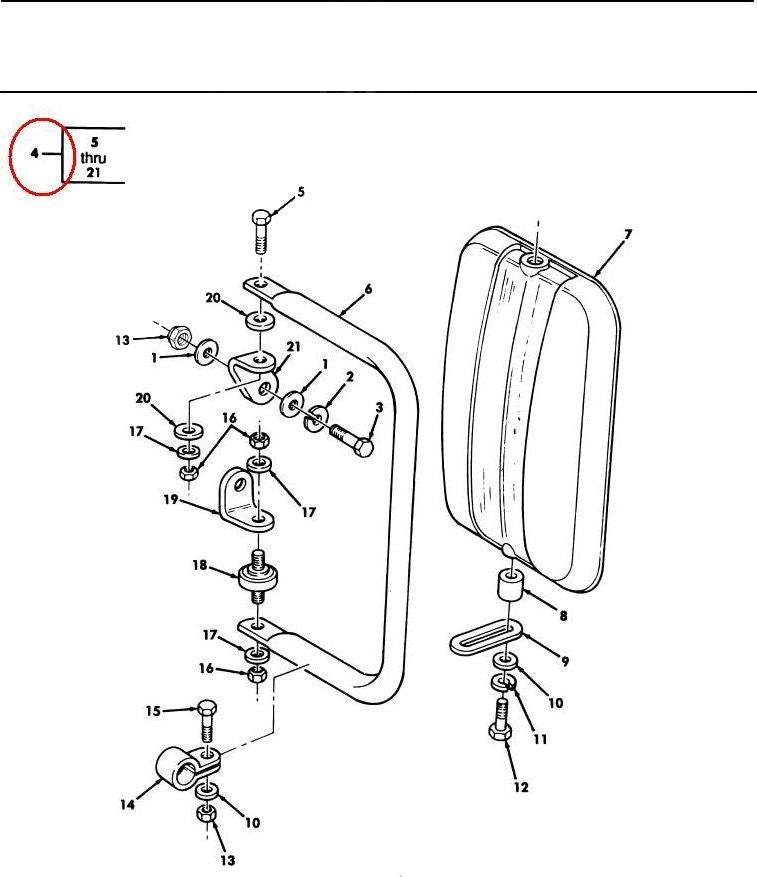

- HMMWV: all A0 models except M1097, plus M1121 (TM 9-2320-280-24P) — parts diagram: Fig. 432, item 1
- HMMWV (up-armored / expanded capacity): M1113, M1114, M1151, M1151A1, M1152, M1152A1, M1165, M1165A1, M1167 (TM 9-2320-387-24P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
