HMMWV 1 1/4-TON Rubber & Plastic 12341392 NON-METALLIC Bushing 5365-01-274-4675

12341392 Nonmetallic Bushing (5365-01-274-4675)

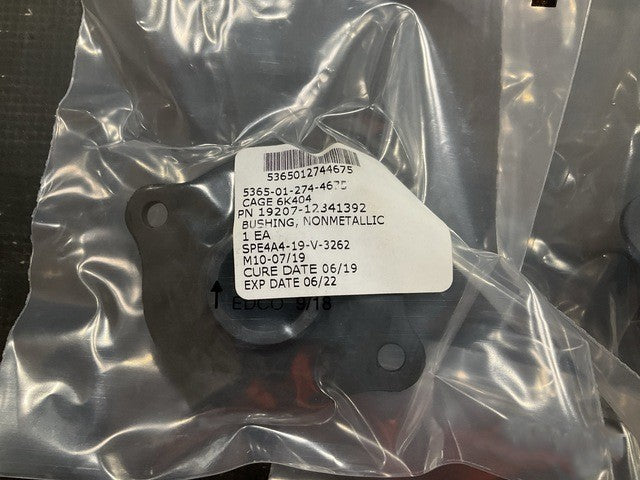

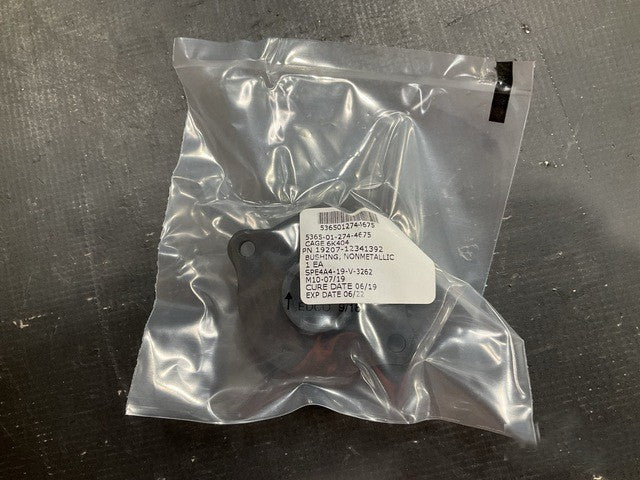

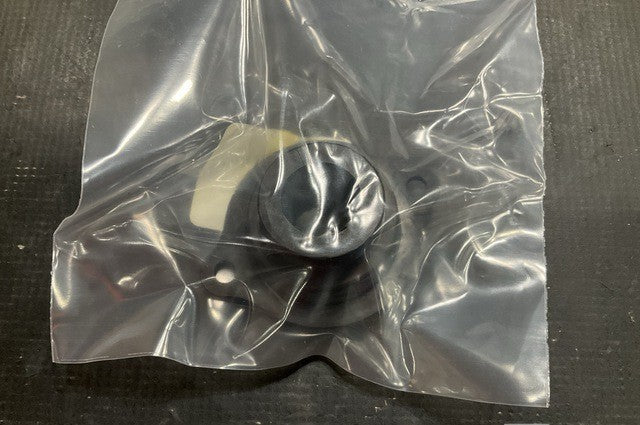

Rubber nonmetallic bushing, flanged, single centrally located hole with split design, for the HMMWV 1 1/4-TON.

Part Information

• Design Control Activity: U S Army Tank Automotive Command
• Part Number: 12341392
• NSN: 5365-01-274-4675
• End Item: HMMWV 1 1/4-TON

Specifications

• Material: Rubber
• Design Type: Single centrally located hole and split
• Overall Length: 1.380 in. nominal
• Flange Diameter: 3.120 in. nominal
• Body Diameter: 1.090 in. nominal
• Body Length: 0.260 in. nominal
• Center Hole Diameter: 0.848 in. nominal
• Flange Height: 0.120 in. nominal
• Body Height Above Flange: 1.000 in. nominal
• Special Features: 2 holes 0.250 in. center to center at 2.640 in. on flange
