SECO Parts and Equipment

Het M1070 Truck Oshkosh 1796660 Straight Steering Pitman Arm | NSN 2530-01-361-3975

Het M1070 Truck Oshkosh 1796660 Straight Steering Pitman Arm | NSN 2530-01-361-3975

$329.63 USD
$329.63 USD
Sale Sold out
Shipping calculated at checkout.

NSN 2530-01-361-3975 Specs and cross-references ↗

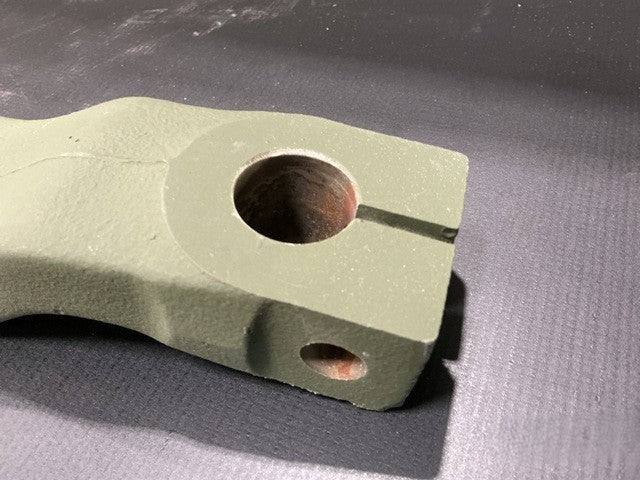

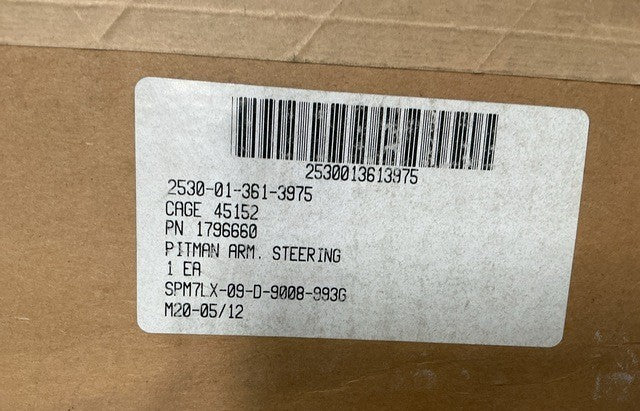

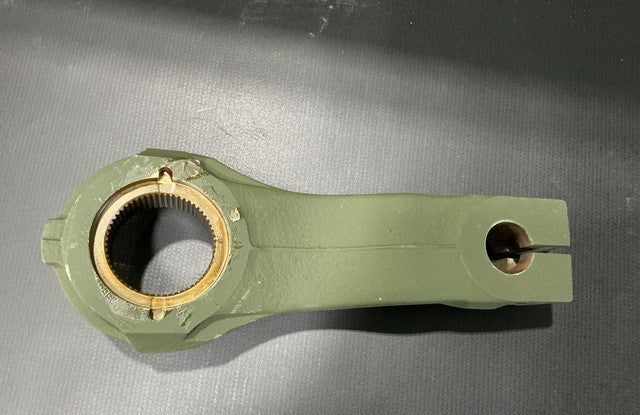

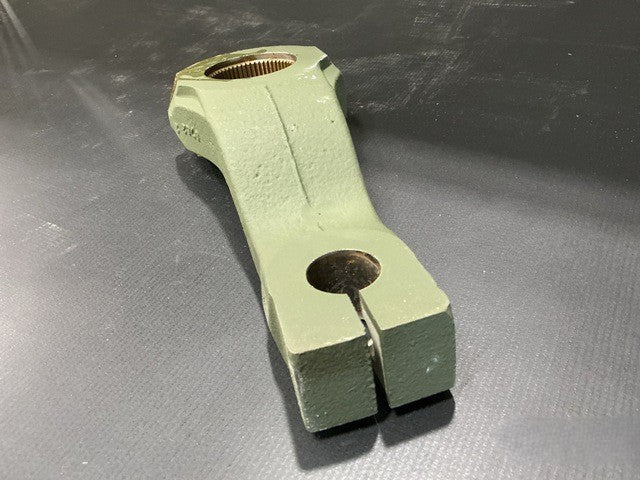

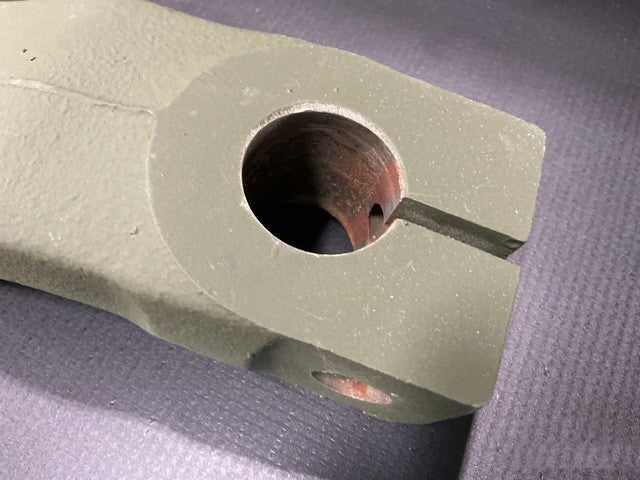

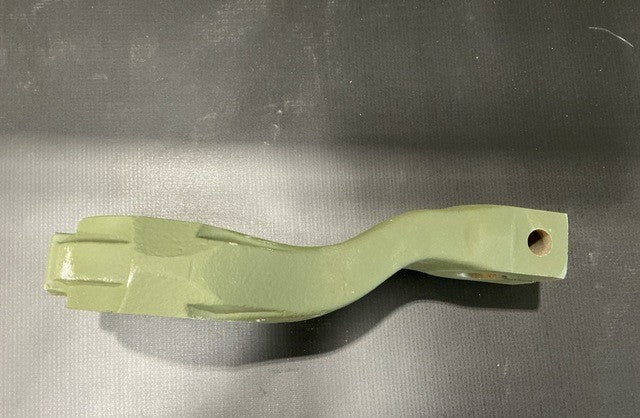

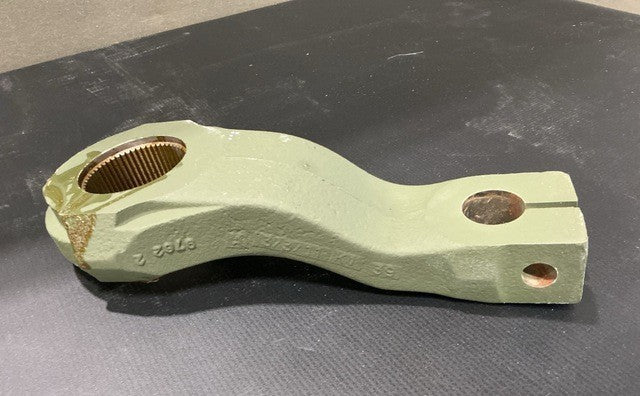

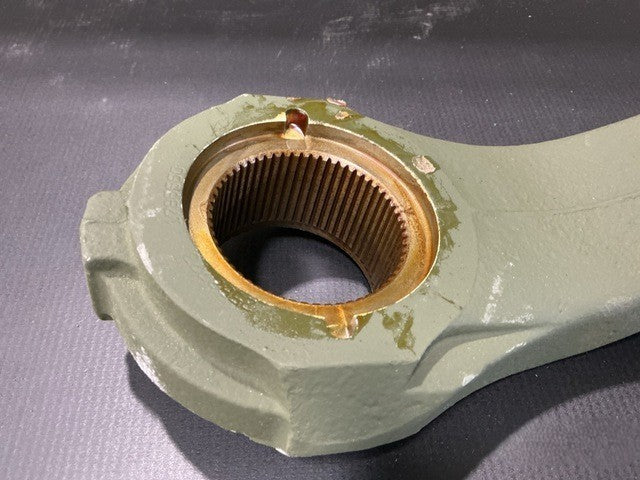

OSHKOSH CORP 1796660 Straight Steering Pitman Arm (NSN 2530-01-361-3975)

Straight steering pitman arm, 58-tooth sector shaft with 30° serration included angle, for the M1070 truck.

Part Information

  • Manufacturer: Oshkosh Corp
  • Part Number: 1796660
  • NSN: 2530-01-361-3975
  • End Item: M1070
  • CAGE Code: Oshkosh Corp

Specifications

  • Furnished Items: Counterbore Feature
  • Serration Included Angle: 30.0 deg
  • Teeth Quantity: 58
  • Design Type: Straight
  • Sector Shaft Mounting End Overall Width: 2.500 in nominal
  • Sector Shaft Mounting End Overall Thickness: 1.921 in nominal
  • Center to Center Distance Between Ball/Ball Stud Hole and Sector Shaft Bore: 8.000 in nominal
