MS28741-16-0921 Nonmetallic Hose Assembly (4720-01-219-2020)

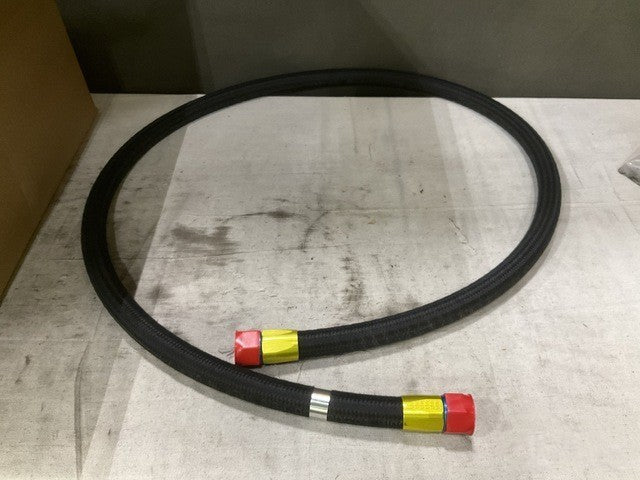

Nonmetallic hose assembly with threaded internal tube fitting at the first end, rated for fuel/oil hydrocarbon media.

Part Information

• Design Control Activity: Military Standards
• Part Number: MS28741-16-0921
• NSN: 4720-01-219-2020

Specifications

• Inside Diameter: 0.875 in nominal
• Outside Diameter: 1.234 in nominal
• Overall Length: 92.125 in nominal
• Minimum Inside Bending Radius: 7.380 in

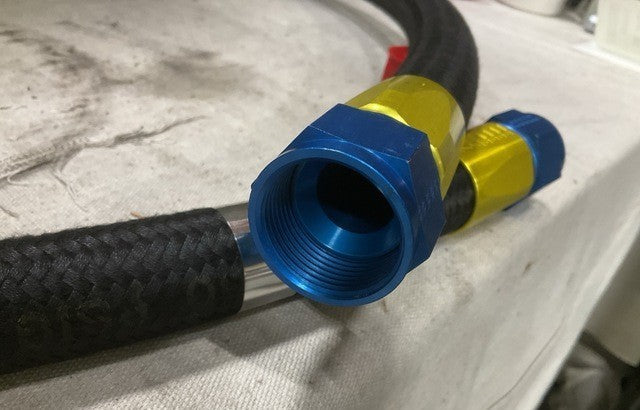

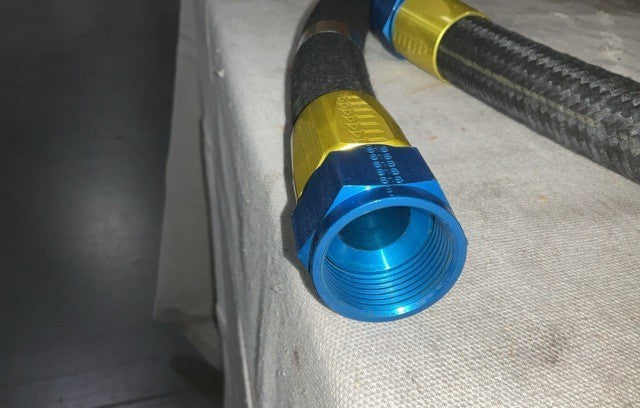

• First End Connection: Straight, threaded internal tube, 37° seat angle
• Thread: Class 3B, UN series, 12 threads/in, 1.312 in nominal size, right-hand
• Operating Pressure: 800 PSI max
• Burst Test Pressure: 3200 PSI
• Hydrostatic Test Pressure: 1600 PSI
• Temperature Rating: -40°F to 250°F
• Media: Fuel/Oil, Hydrocarbon
• Construction: First layer braided cotton cord; second layer braided wire; outer layer rubber impregnated cotton fabric
• Outer Covering: Mildew resistant and oil resistant
• Inside Surface: Smooth
• Specification/Standard: 96906-S28741
