HEMTT Tactical Oshkosh 126536A Hexagon Head Cap Screw WH1028TB 5305-01-185-8668

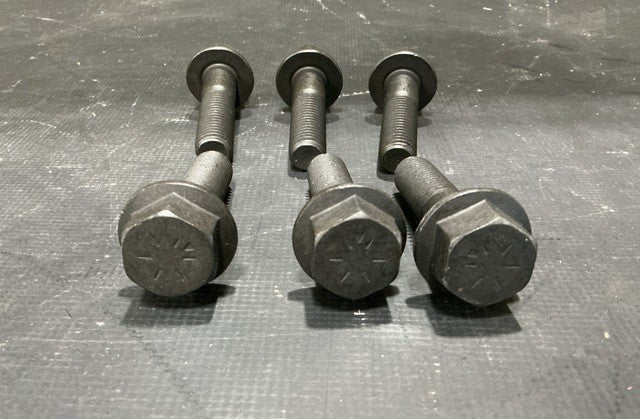

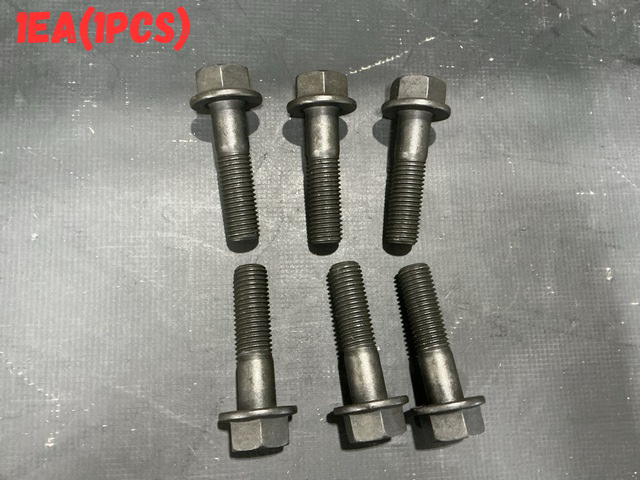

126536A Hexagon Head Cap Screw (5305-01-185-8668)

SAE J429 Grade 8 steel hexagon head cap screw, 3/4-10 UNC-2A thread, for HEMTT.

Part Information

• Design Control Activity: E.C.A Etablissement Central des
• Part Number: 126536A
• NSN: 5305-01-185-8668
• End Item: HEMTT

Specifications

• Thread Class: 2A
• Thread Direction: Right-hand
• Thread Series: Unified National Coarse (UNC)
• Nominal Thread Diameter: 0.750 in
• Threads Per Inch: 10
• Thread Length: 1.750 in nominal
• Fastener Length: 3.000 in nominal
• Head Height: 0.730 in nominal
• Width Between Flats: 1.120 in nominal
• Extended Washer Diameter: 1.590 in nominal
• Extended Washer Thickness: 0.110 in nominal
• Material: Steel, SAE J429 Grade 8
• Surface Treatment: Phosphate manganese or phosphate zinc, per MIL-IL-16232
