| OVERALL DEPTH |
4.430 INCHES NOMINAL |
| OVERALL HEIGHT |
9.620 INCHES NOMINAL |
| OVERALL DIAMETER |
4.750 INCHES NOMINAL |
| MOUNTING BASE LENGTH |
1.180 INCHES NOMINAL |
| MOUNTING BASE DIAMETER |
2.750 INCHES NOMINAL |
| LIGHT ADJUSTMENT METHOD |
BRACKET AND PIVOT |
| LIGHT ADJUSTMENT LIMITS |
30.0 DEGREES NOMINAL VERTICAL |
| LIGHT ADJUSTMENT LIMITS |
80.0 DEGREES NOMINAL HORIZONTAL |
| END ITEM IDENTIFICATION |
HEMTT FAMILY (HEAVY EXPANDED MOBILITY TACTICAL TRUCKS);2320-01-304-2277, TRUCK, PLS (PALLETIZED LOADING SYSTEM) |
| VOLTAGE RATING IN VOLTS |
24.0 DC NOMINAL |
| MOUNTING METHOD |
MAGNETIC |
| LENS TYPE AND QUANTITY |
1 FLAT, ROUND |
| LAMP PROTECTION DEVICE |
CLOSED END GUARD |

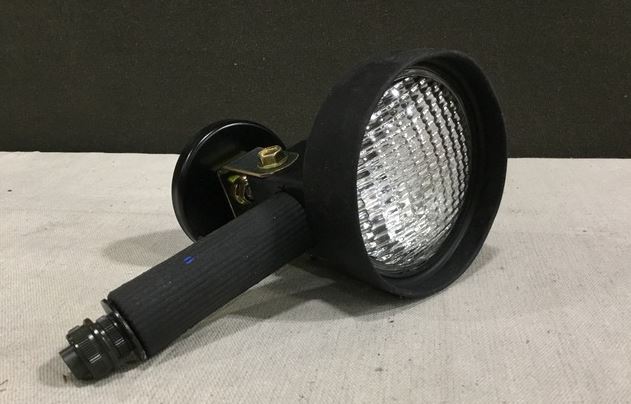

| PART NAME ASSIGNED BY CONTROLLING AGENCY |
LAMP, WORK |
| SPECIAL FEATURES |
LAMP POWER SWITCH IS A SEALED TOGGLE SWITCH |
| PROPRIETARY CHARACTERISTICS |
PACS |
| SHAPE |
RIGHT ANGLE |
| SPECIFICATION/STANDARD DATA |
81349-MIL-T-27/300 GOVERNMENT SPECIFICATION |
