HEAVY DUTY NATIVE PRIDE SPARES 12561435-389 HEXAGON HEAD CAP SCREW 5305016946526

HEAVY DUTY NATIVE PRIDE SPARES 12561435-389 HEXAGON HEAD CAP SCREW 5305016946526

$25.00 USD
$25.00 USD
Sale Sold out
Shipping calculated at checkout.

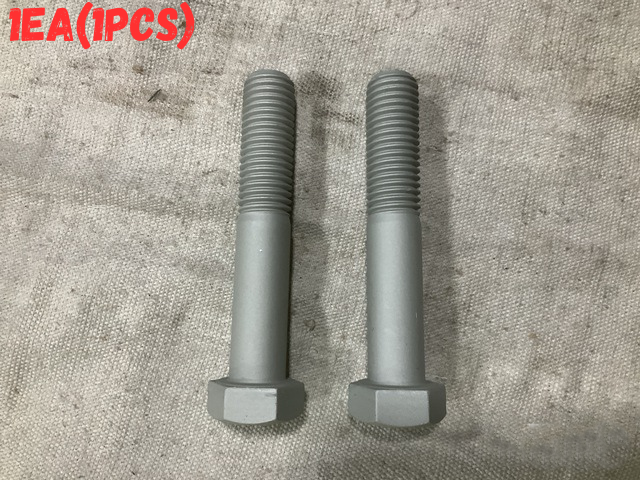

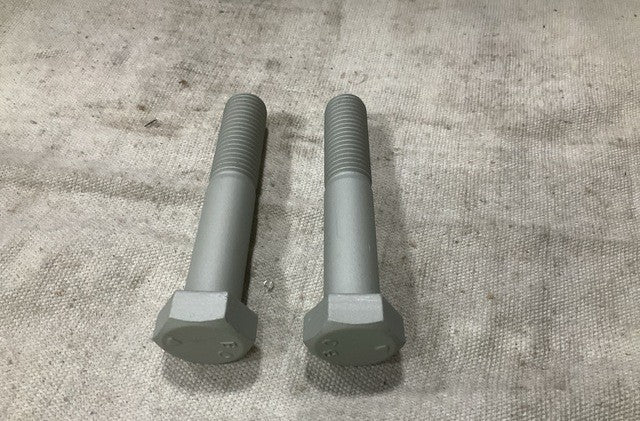

12561435-389 Hexagon Head Cap Screw (NSN 5305-01-694-6526)

Steel hexagon head cap screw, 0.750 in nominal thread diameter, UNC thread series.

Part Information

  • Design Control Activity: U S Army Tank Automotive Command
  • Part Number: 12561435-389
  • NSN: 5305-01-694-6526

Specifications

  • Thread Class: 2A
  • Thread Direction: Right-hand
  • Thread Length: 1.750 in minimum
  • Fastener Length: 4.250 in nominal
  • Head Height: 0.46875 in nominal
  • Width Between Flats: 1.125 in nominal
  • Nominal Thread Diameter: 0.750 in
  • Threads Per Inch: 10
  • Thread Series: Unified National Coarse (UNC)
  • Material: Steel (overall)
  • Special Features: IAW ANSI B18.2.1, except finish per Drawing 12469117
