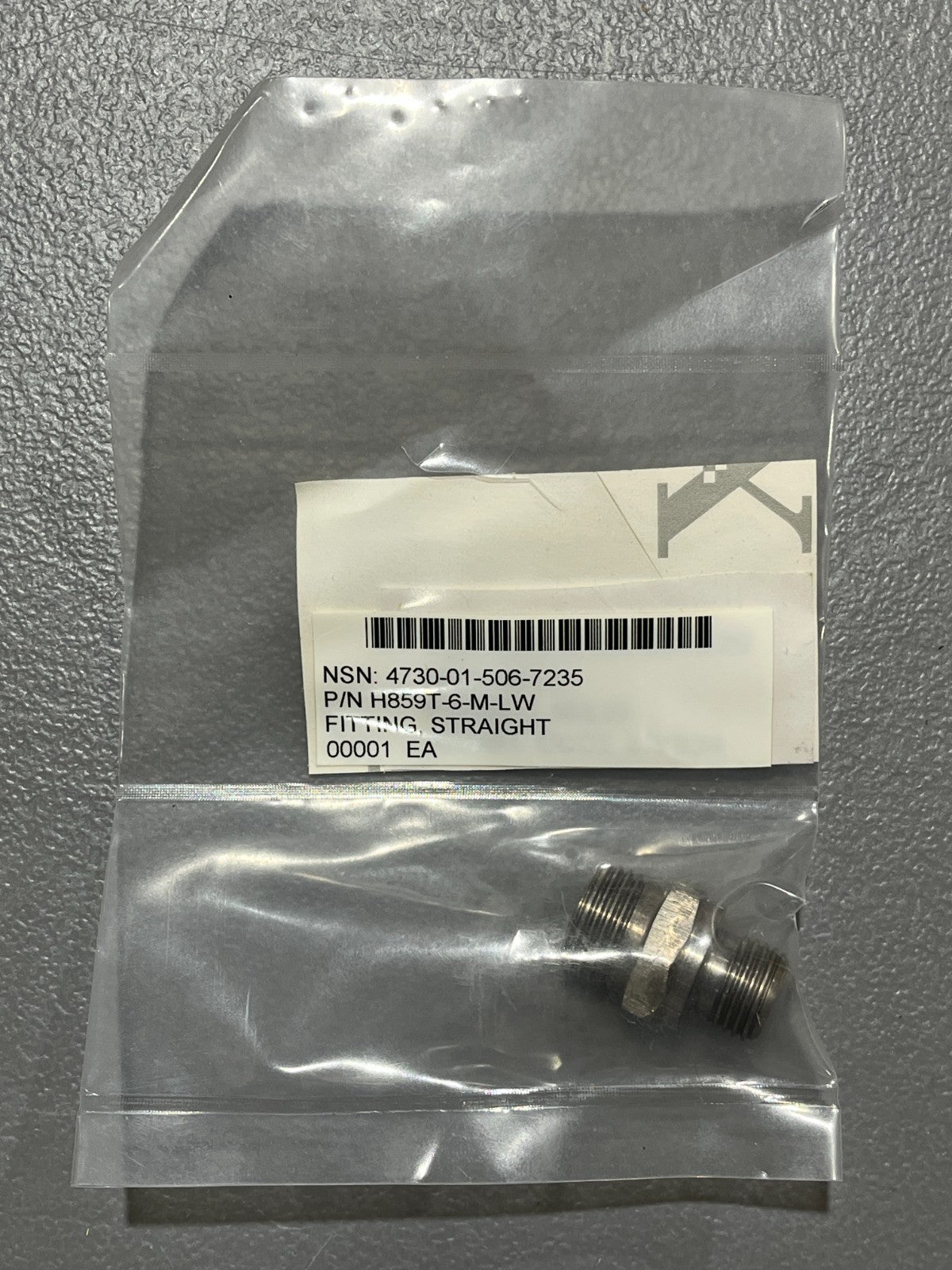

HEAVY DUTY GRUMMAN H859T-6-M-LW TUBE TO BOSS STRAIGHT ADAPTER 4730-01-506-7235

ADMIRAL VALVE LLC H859T-6-M-LW Male Connector Tube To Male Straight Thread - Body Only (4730-01-506-7235)

Nickel alloy straight adapter connecting a 0.375 in tube end to a 0.562 in boss end, rated to 6000 PSI maximum, with lockwire hole.

Part Information

• Manufacturer: Admiral Valve LLC
• Part Number: H859T-6-M-LW

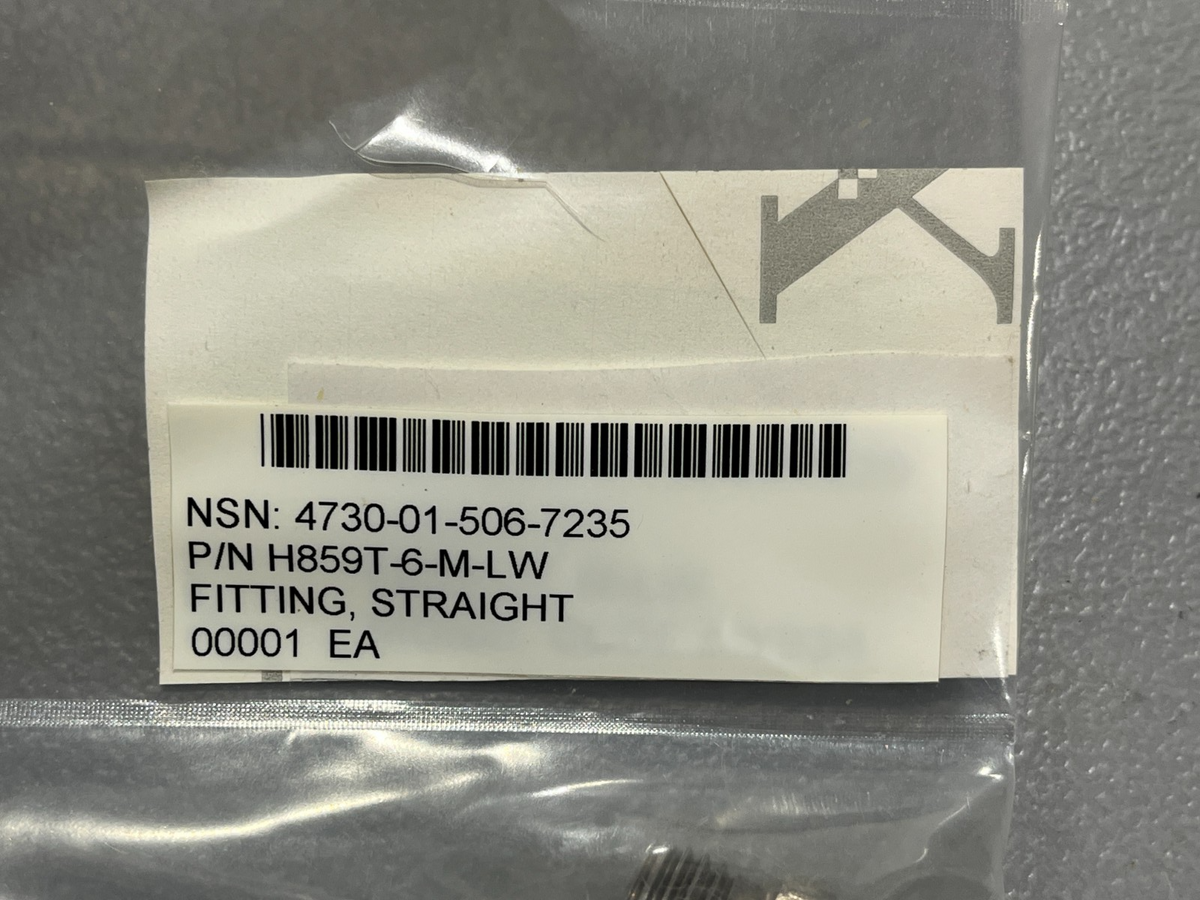

• NSN: 4730-01-506-7235

Specifications

• Material: Nickel Alloy (overall)
• Connection, First End: Threaded External Tube, UNS, 0.375 in nominal thread size, 18 threads per inch
• Connection, Second End: Threaded External Boss, UNF, 0.562 in nominal thread size
• Thread Class: 2A
• Nominal Tube OD Accommodated (First End): 0.375 in
• Nominal Overall Length: 1.187 in
• Operating Pressure, Maximum: 6000 PSI
• Operating Temperature Range: -20.0°F to 275.0°F

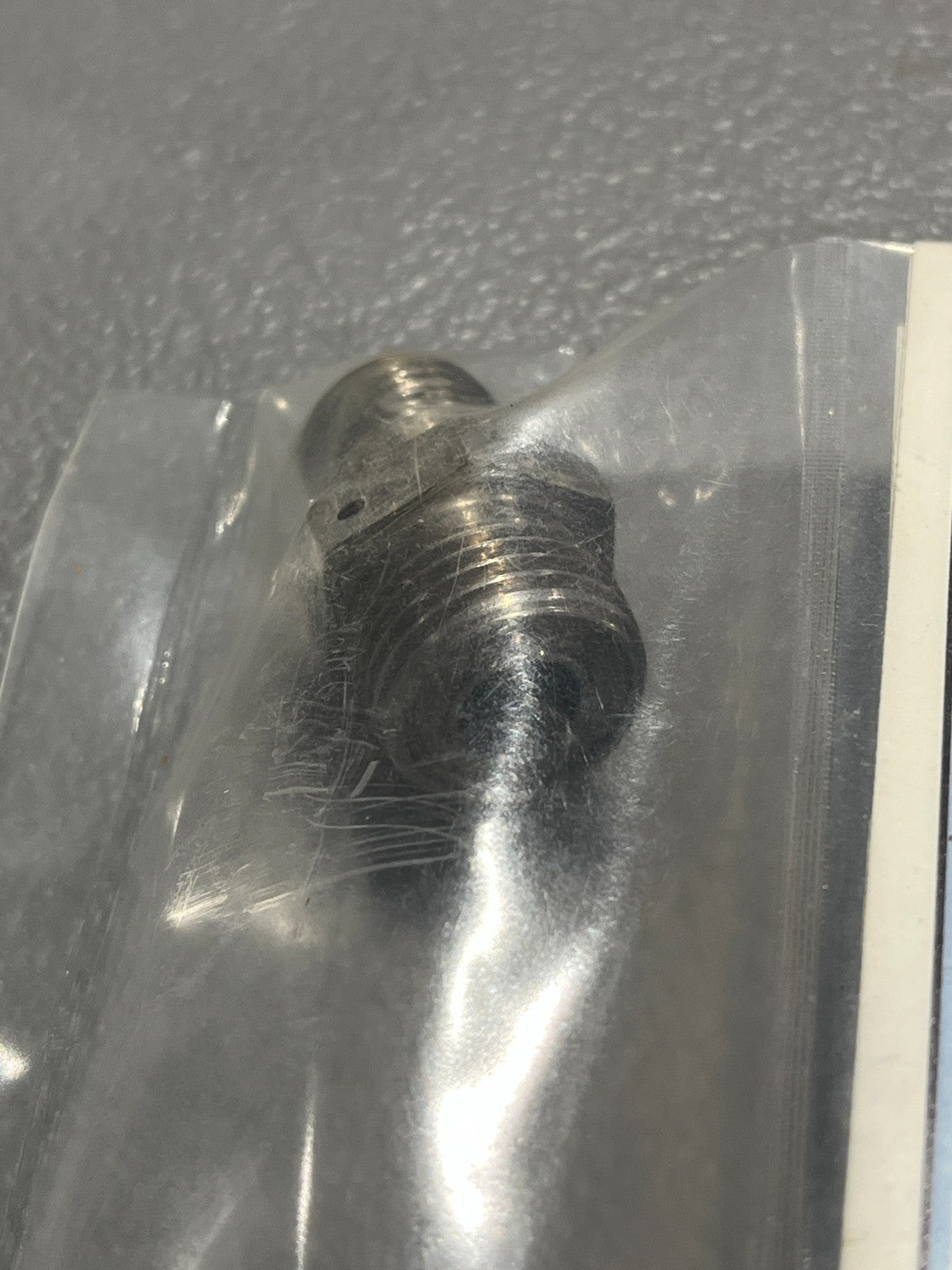

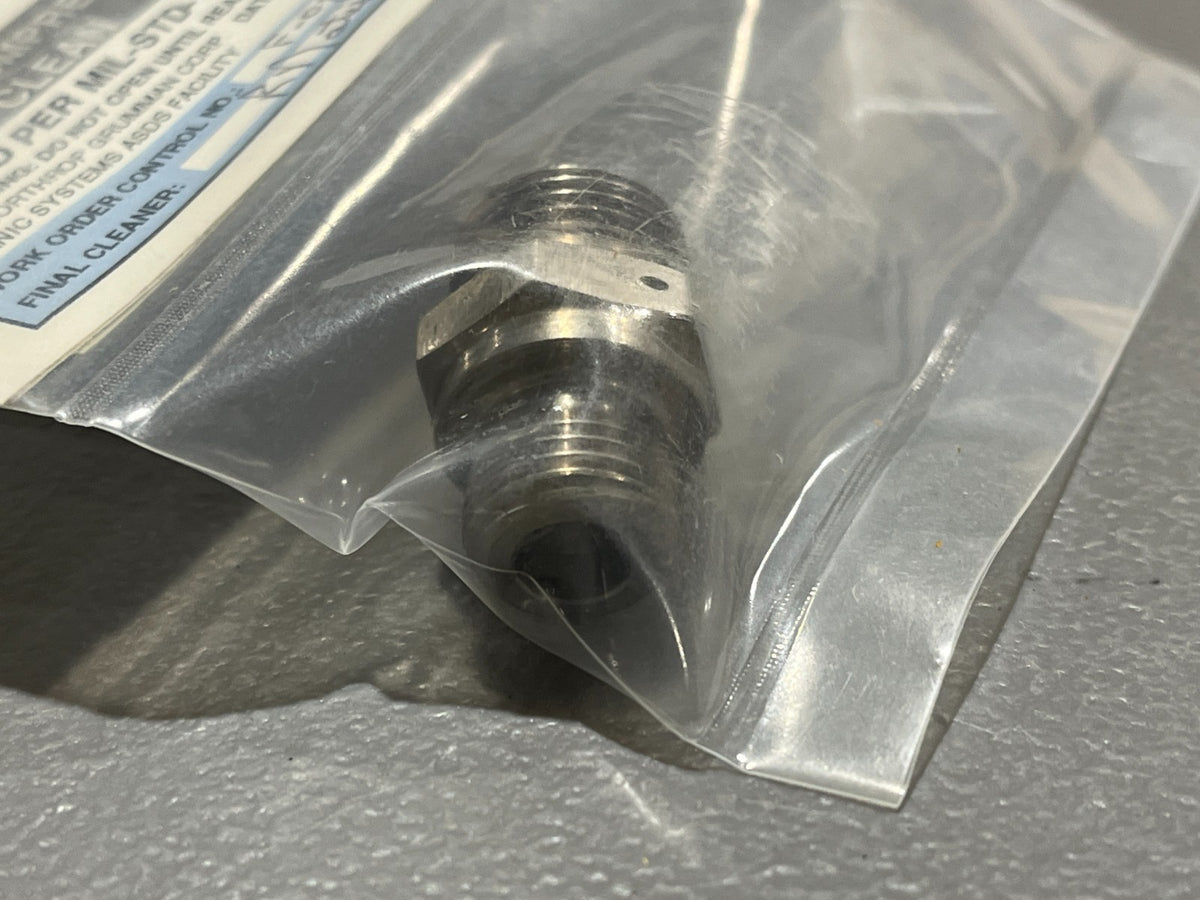

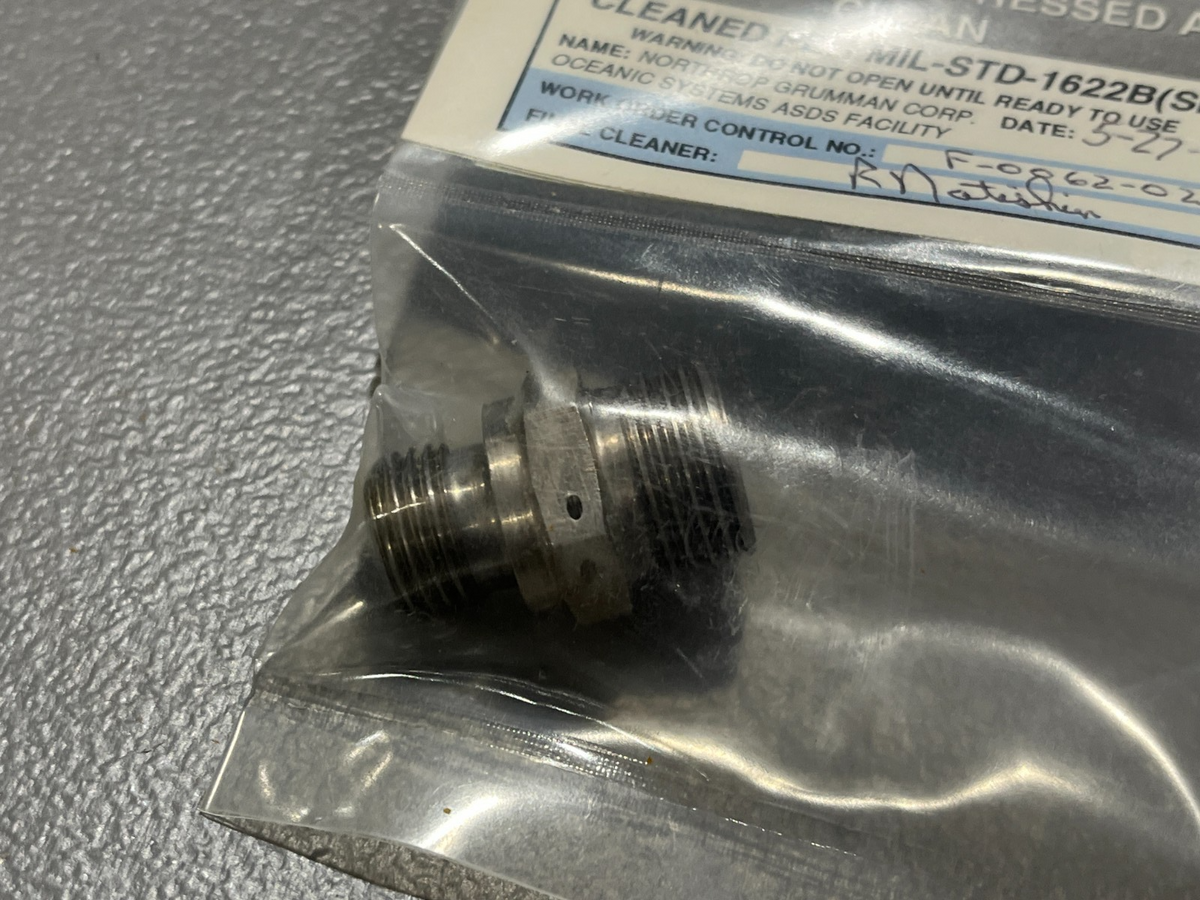

• Special Features: Lockwire hole included
