Heavy Duty Cima Machine & Tool 160A799PC5 Socket Head Cap Screw 5305-01-203-8355
Heavy Duty Cima Machine & Tool 160A799PC5 Socket Head Cap Screw 5305-01-203-8355
Regular price
$47.80 USD
Regular price
Sale price
$47.80 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5305-01-203-8355 Specs and cross-references for NSN 5305-01-203-8355 (opens in a new tab) ↗

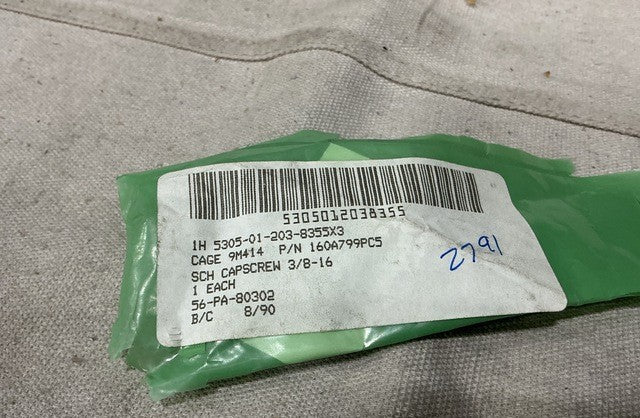

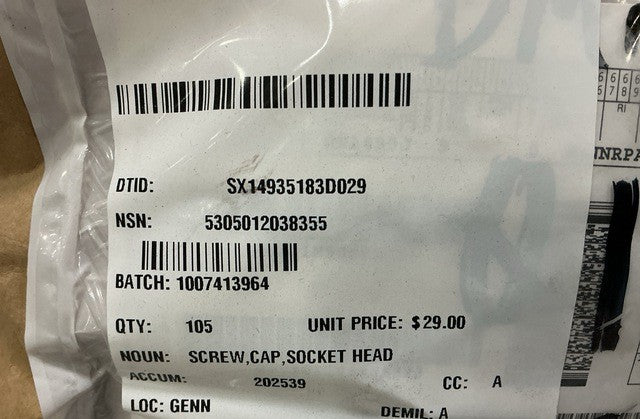

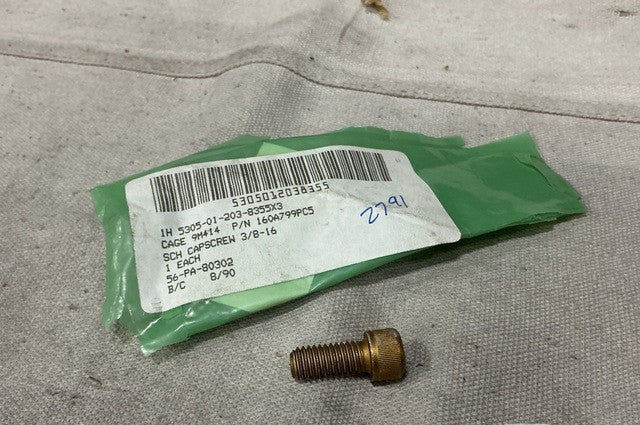

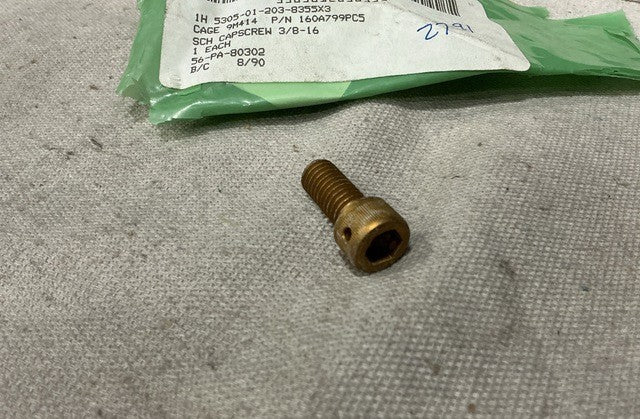

Curtiss-Wright Electro-Mechanical 160A799PC5 Socket Head Cap Screw (5305-01-203-8355)
Steel socket head cap screw, 0.375 in nominal thread diameter, 16 threads per inch, 0.875 in nominal length.
Part Information
- Manufacturer: Curtiss-Wright Electro-Mechanical
- Part Number: 160A799PC5
- NSN: 5305-01-203-8355
Specifications
- Thread Class: 2A
- Thread Direction: Right-hand
- Thread Series: Unified National Coarse (UNC)
- Nominal Thread Diameter: 0.375 in
- Threads Per Inch: 16
- Fastener Length: 0.875 in nominal
- Hole Quantity: 2
- Hole Type: Drilled
- Hole Diameter: 0.091 in min - 0.097 in max
- Material: Steel
- Surface Treatment: Cadmium and chromate, per FED SPEC QQ-416, Type 2, Class 3
