Heavy Duty Blessing Our World 3392AS626-3 Socket Head Cap Screw | NSN 5305-01-569-9553
Heavy Duty Blessing Our World 3392AS626-3 Socket Head Cap Screw | NSN 5305-01-569-9553
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5305-01-569-9553 Specs and cross-references for NSN 5305-01-569-9553 (opens in a new tab) ↗

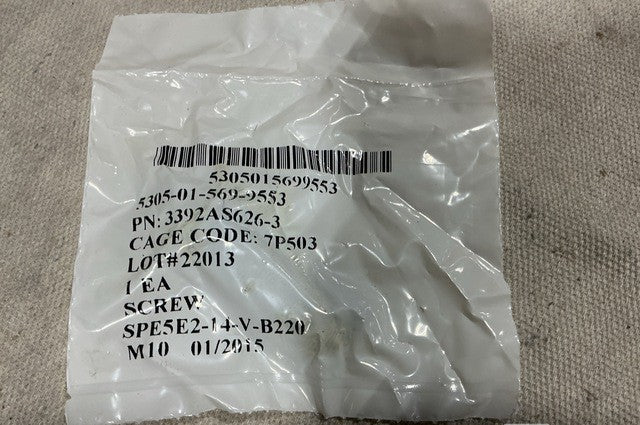

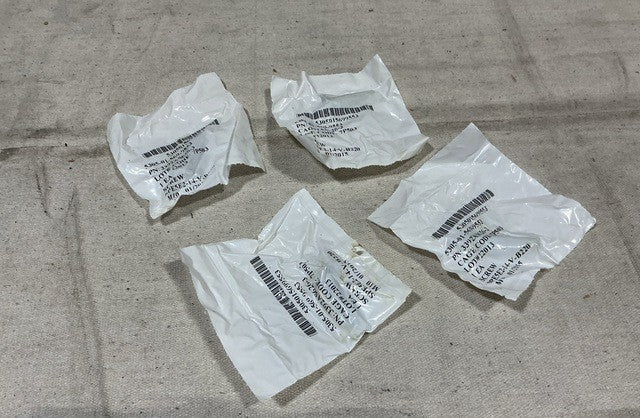

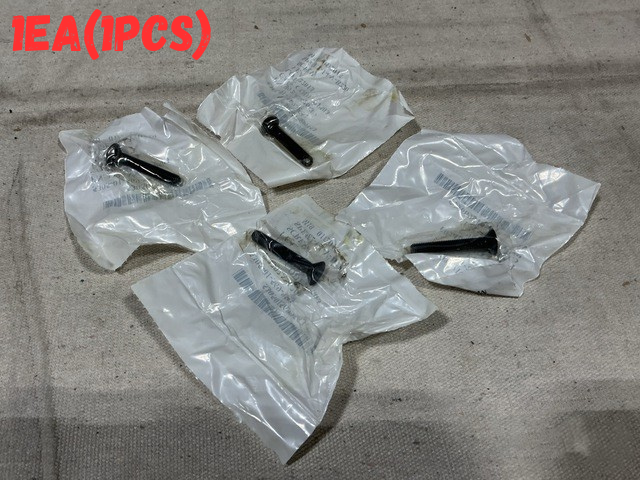

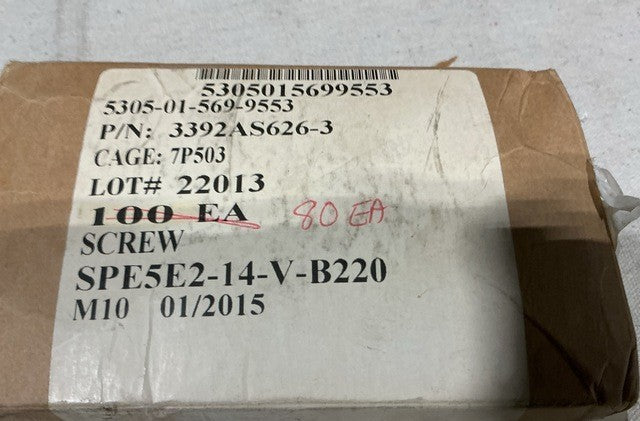

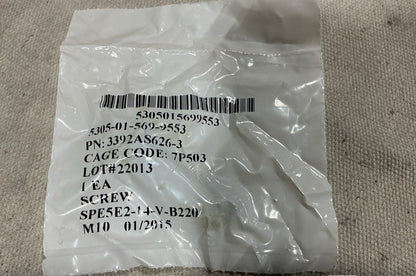

3392AS626-3 Socket Head Cap Screw (NSN 5305-01-569-9553)
Steel socket head cap screw, UNF thread series, right-hand thread class 2A.
Part Information
- Design Control Activity: Naval Air Systems Command
- Part Number: 3392AS626-3
- NSN: 5305-01-569-9553
- End Item: A/A49E-16 ARM SUBSYS
Specifications
- Thread Class: 2A
- Thread Direction: Right-hand
- Thread Series: UNF
- Nominal Thread Diameter: 0.250 in
- Threads per Inch: 28
- Thread Length: 1.469 in nominal
- Fastener Length: 1.630 in nominal
- Head Diameter: 0.531 in nominal
- Width Across Flats: 0.156 in nominal
- Material: Steel comp 303 or comp 304 or comp 316
- Surface Treatment: Oxide
- Color: Black
