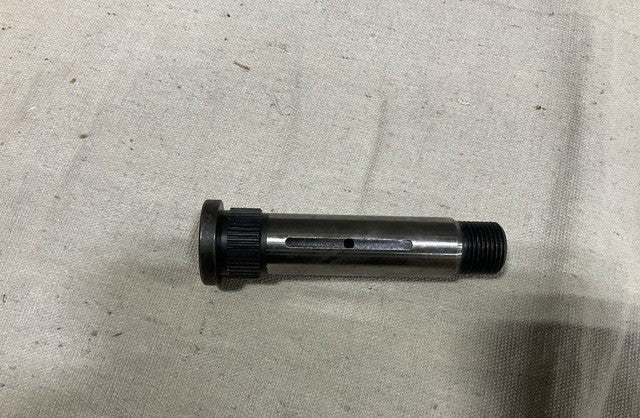

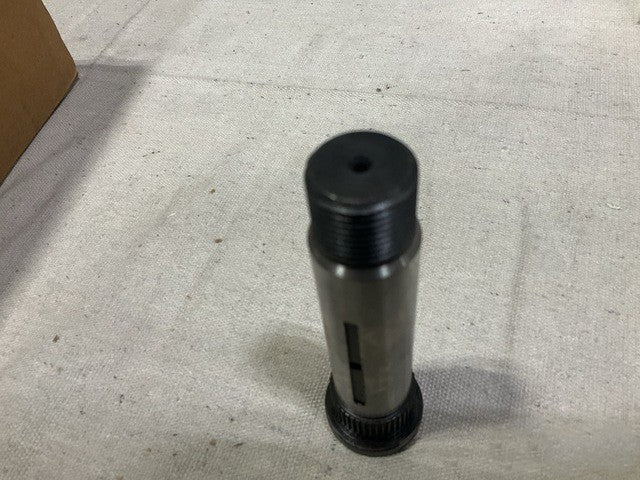

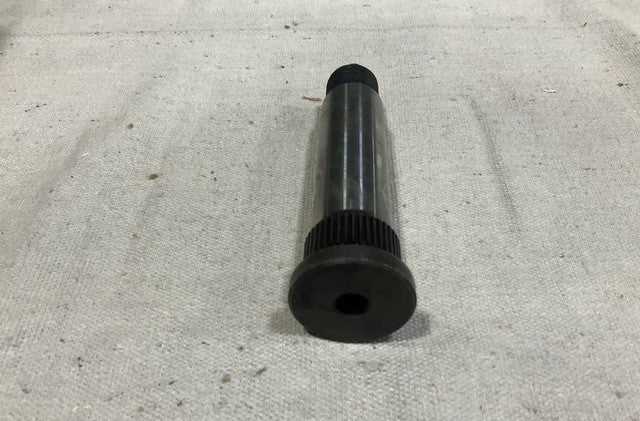

7392817 Shackle Bolt (5306-00-613-2012)

Alloy steel shackle bolt, grooved, per Federal Spec QQ-S-624.

Part Information

• Design Control Activity: U S Army Tank Automotive Command
• Part Number: 7392817
• NSN: 5306-00-613-2012
• CAGE Code: (TACOM)

Specifications

• Material: Steel, Alloy, Fed QQ-S-624 Spec
• Length: 4.750 IN.
• Shaft Diameter: 0.987 IN.
• Thread Size: 7/8-14 UNF-2A
• Head Size: 1.375 IN.
• Groove: 1/32 IN. by 45 DEG, grooved on shaft both sides 1/8 X 16 IN.
• External Involute Spline: 44 teeth
• Diametral Pitch: 40/80
• Pressure Angle: 30 DEG
• Pitch Diameter: 1.1000 IN.
• Base Circle Diameter: 0.9526 IN.
• True Involute Form Diameter: 1.0750 IN.
• Circular Tooth Thickness: 0.0386 IN. Min, 0.0402 IN. Max
