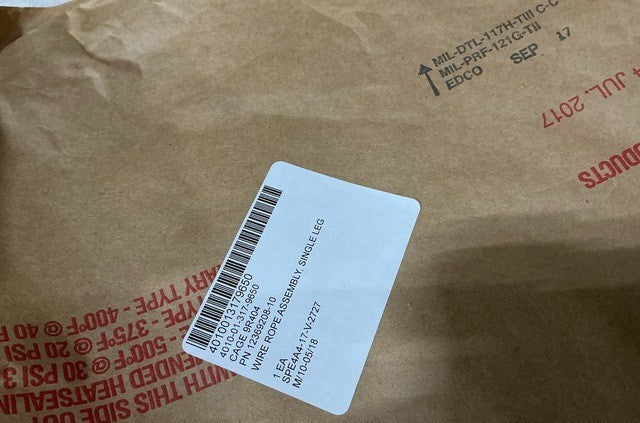

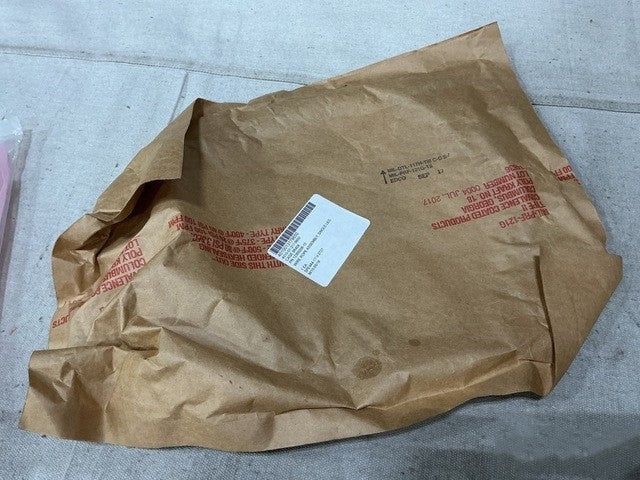

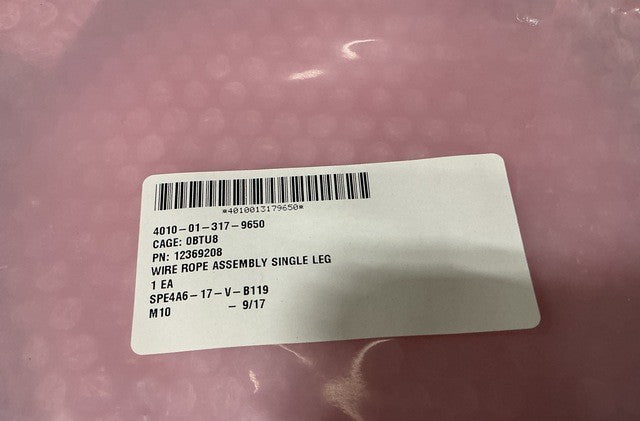

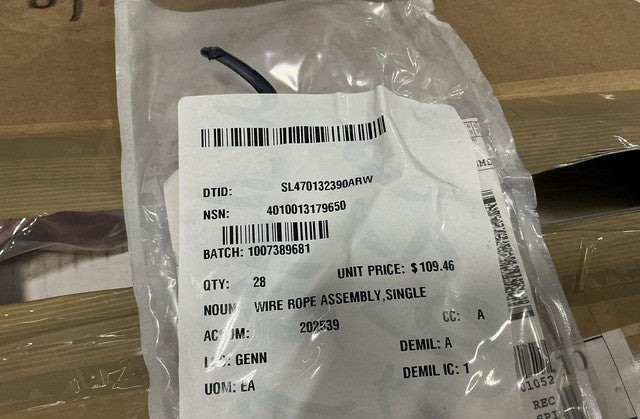

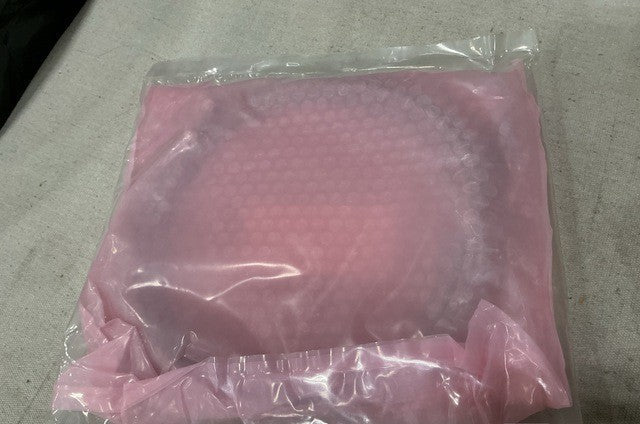

Heavy Duty 12369208 Single Leg Wire Rope Assembly 12369208-10 4010-01-317-9650

12369208-10 Single Leg Wire Rope Assembly (4010-01-317-9650)

Corrosion-resisting steel single leg wire rope assembly with terminal attachments on both ends, for the Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavelry Fighting Vehicle (M3, M3A1, M3A2).

Part Information

• Design Control Activity: U.S. Army Tank Automotive Command
• Part Number: 12369208-10
• NSN: 4010-01-317-9650
• End Item: Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavelry Fighting Vehicle (M3, M3A1, M3A2)

Specifications

• Overall Length: 11.150 ft nominal, 11.187 ft minimum
• Rope Diameter: 0.218 in nominal
• Core Construction: Independent wire rope, preformed, right regular lay
• Wire Rope Material: Steel, corrosion resisting - MIL-W-83420, Type 1, Class B
• Terminal Attachment (First End) Material: Steel Comp 303 or 305 - Fed Spec
• Terminal Attachment (Second End) Material: Steel Comp 303, 303SE, 302, 304, or 305
• Second End Thread: 0.375 in, 24 TPI, UNF, Class 2A, left-hand, 2.500 in length
• Surface Treatment: Passivate - QQ-P-35
