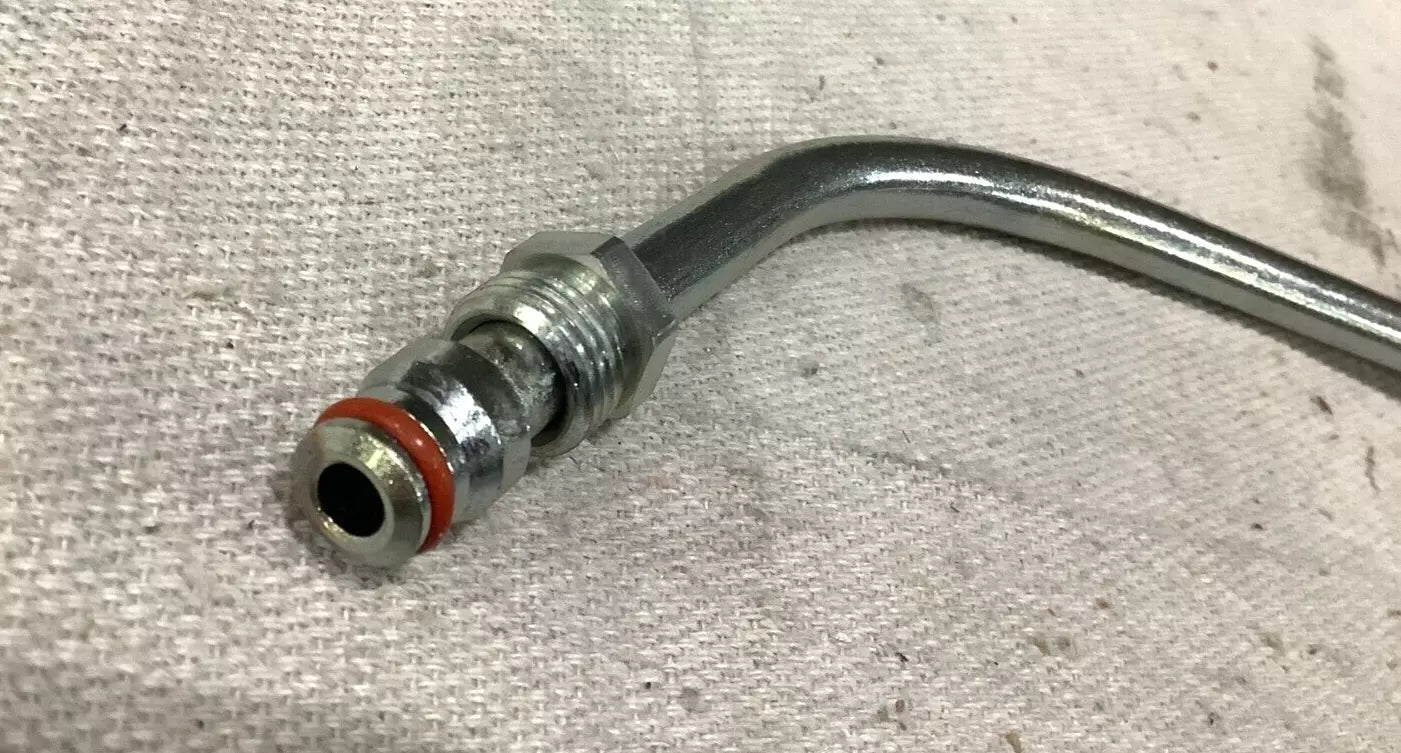

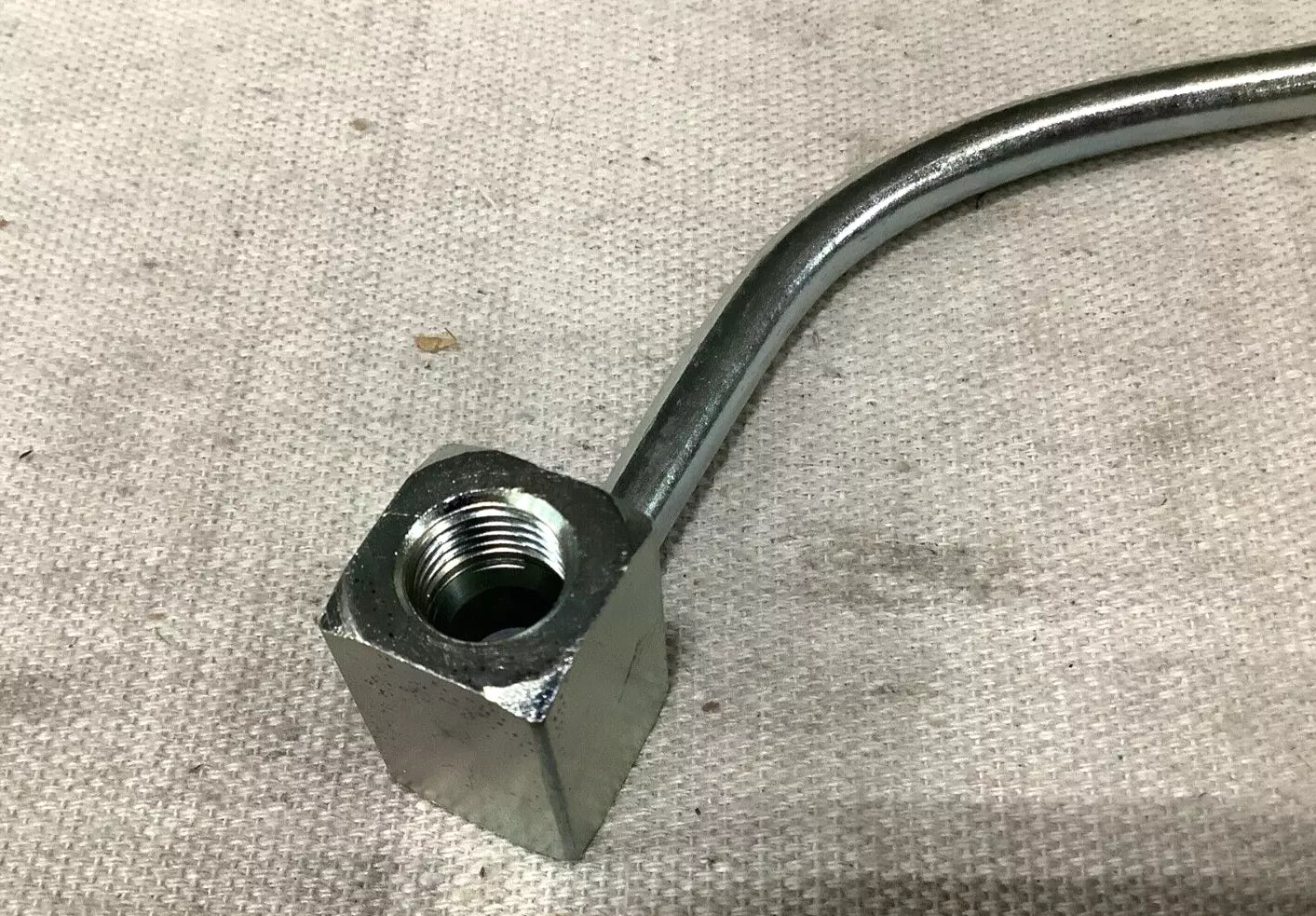

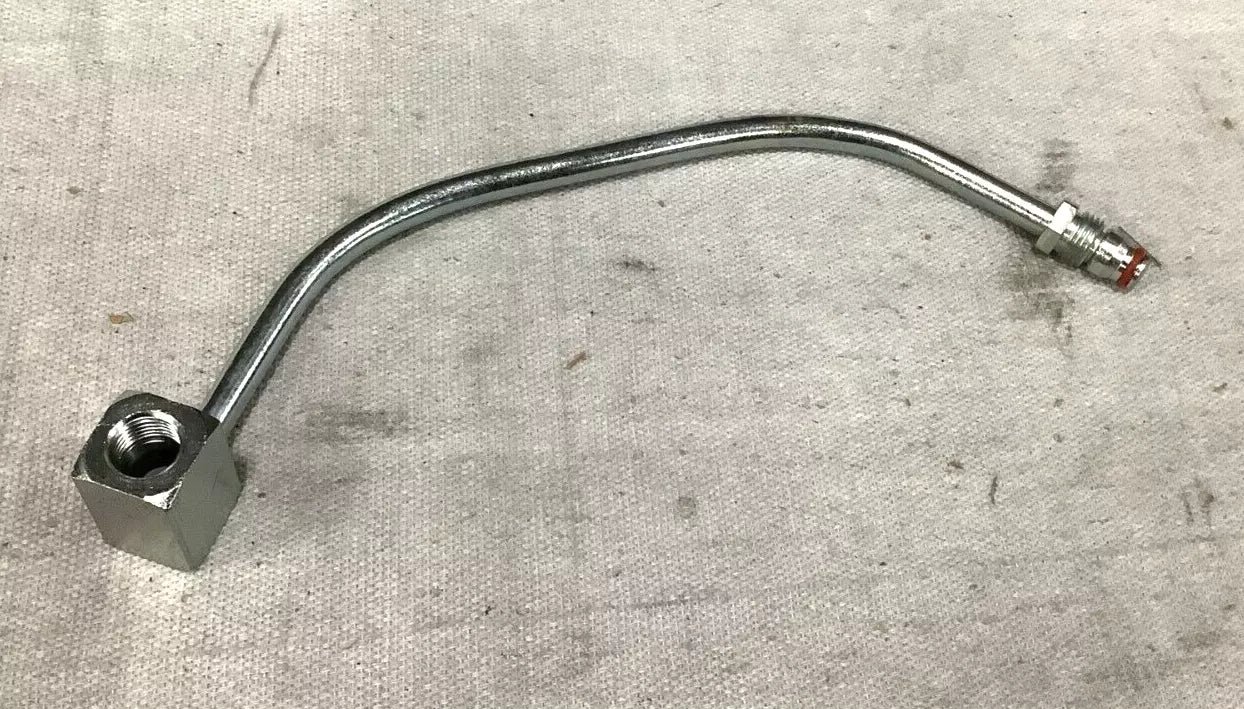

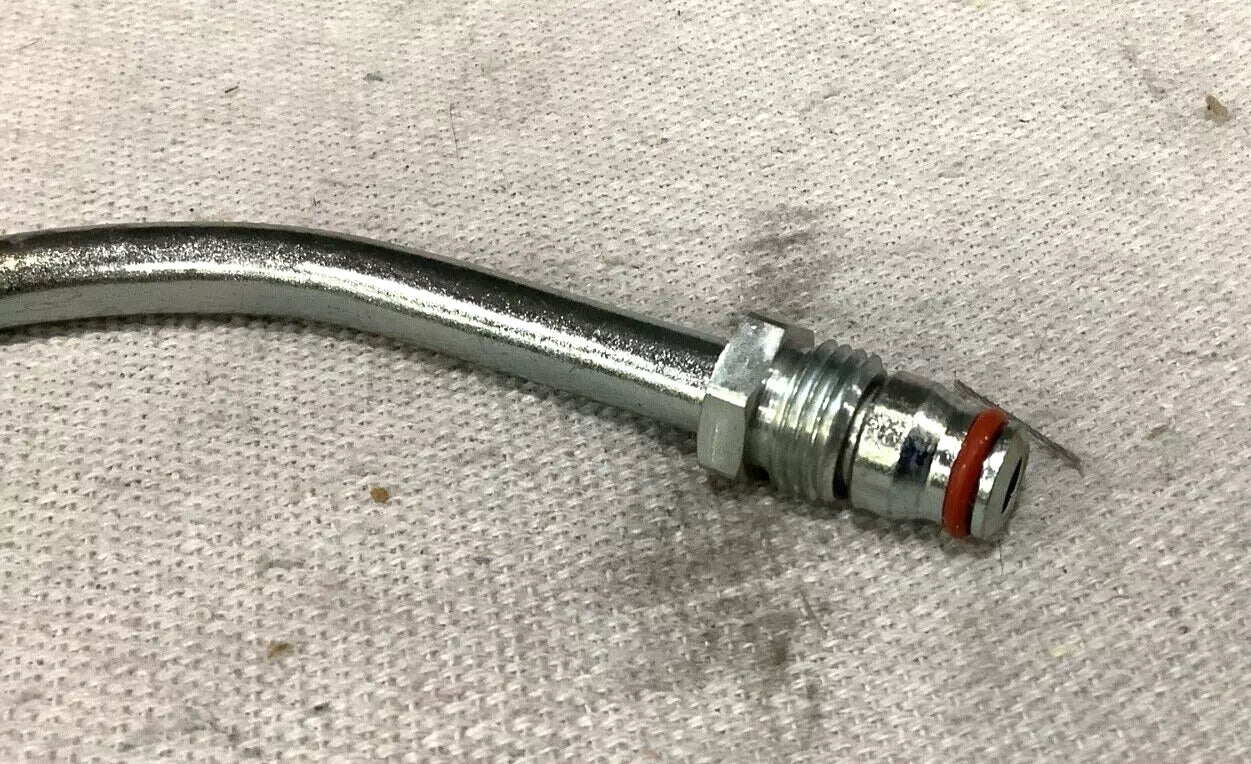

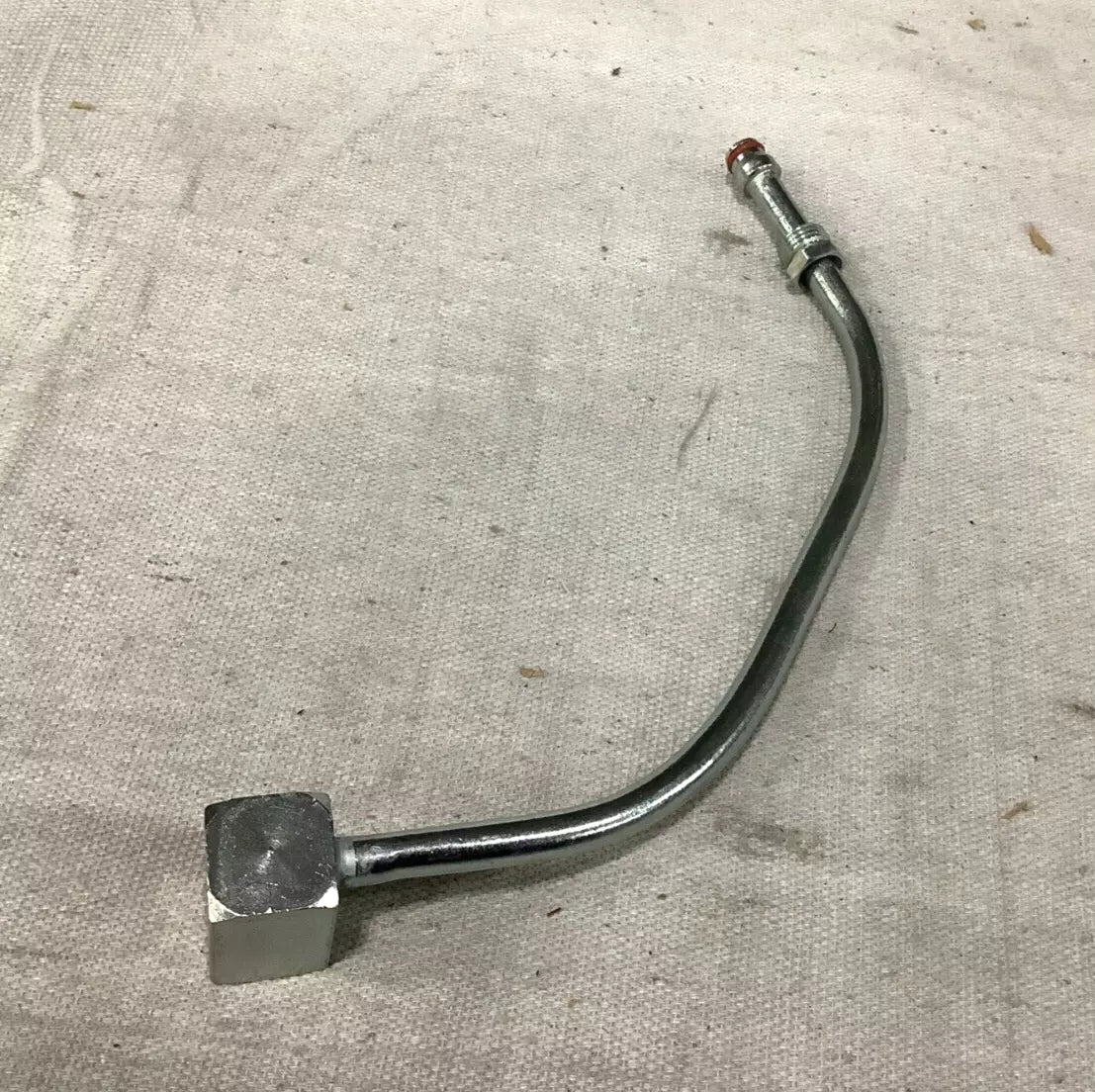

HALTEC HET PLS N-1374-R METAL TUBE ASSEMBLY 2032230 4710-01-425-2122

WALL THICKNESS

0.312 INCHES NOMINAL

THREAD CLASS

3A SECOND END

THREAD CLASS

3B FIRST END

THREAD DIRECTION

RIGHT-HAND FIRST END

THREAD DIRECTION

RIGHT-HAND SECOND END

MATING END QUANTITY

1 FIRST END

MATING END QUANTITY

1 SECOND END

END ITEM IDENTIFICATION

2320-01-318-9902 M1070 HET (HEAVY EQUIPMENT TRANSPORTER);2320-01-304-2277 AND 2320-01-304-2278 PLS (PALLETIZED LOADING SYSTEM)

TUBING MATERIAL

STEEL

END CONNECTION STYLE

GASKET SEAL SECOND END

END CONNECTION STYLE

PLAIN FIRST END

DESIGN FORM

PREBENT

TUBE OUTSIDE DIAMETER

0.028 INCHES NOMINAL

THREAD QUANTITY PER INCH

20 FIRST END

THREAD QUANTITY PER INCH

20 SECOND END

NOMINAL THREAD SIZE

0.500 INCHES FIRST END

NOMINAL THREAD SIZE

0.500 INCHES SECOND END

MATERIAL

COPPER ALLOY FIRST END

MATERIAL

COPPER ALLOY SECOND END

THREAD SERIES DESIGNATOR

UNF FIRST END

THREAD SERIES DESIGNATOR

UNF SECOND END
