Gps Receiver Aeroantenna AT2775-94R Antenna 013-1981-020 RA-2 5985-01-521-1775
Gps Receiver Aeroantenna AT2775-94R Antenna 013-1981-020 RA-2 5985-01-521-1775
Regular price
$740.87 USD
Regular price
Sale price
$740.87 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5985-01-521-1775 Specs and cross-references for NSN 5985-01-521-1775 (opens in a new tab) ↗

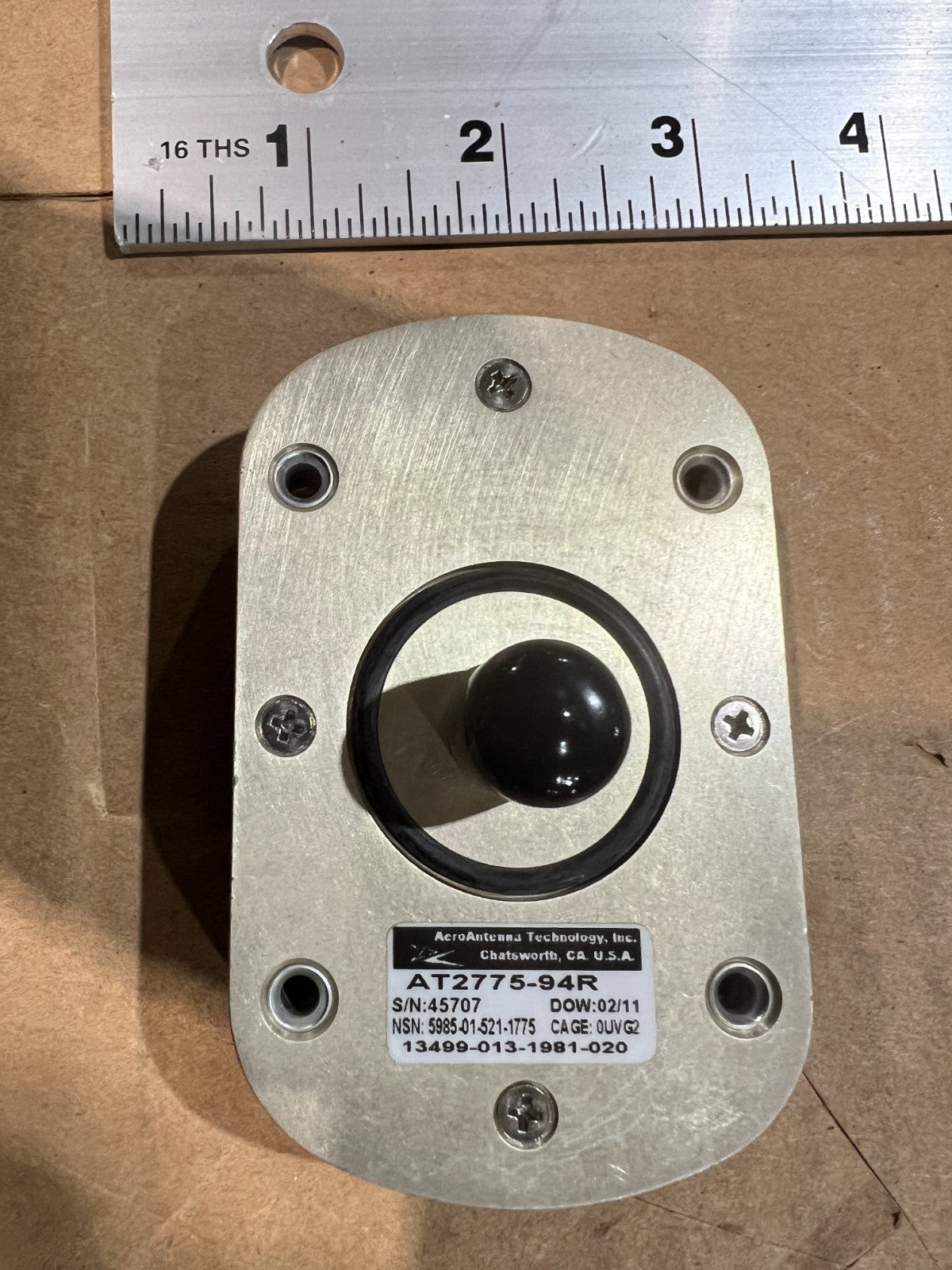

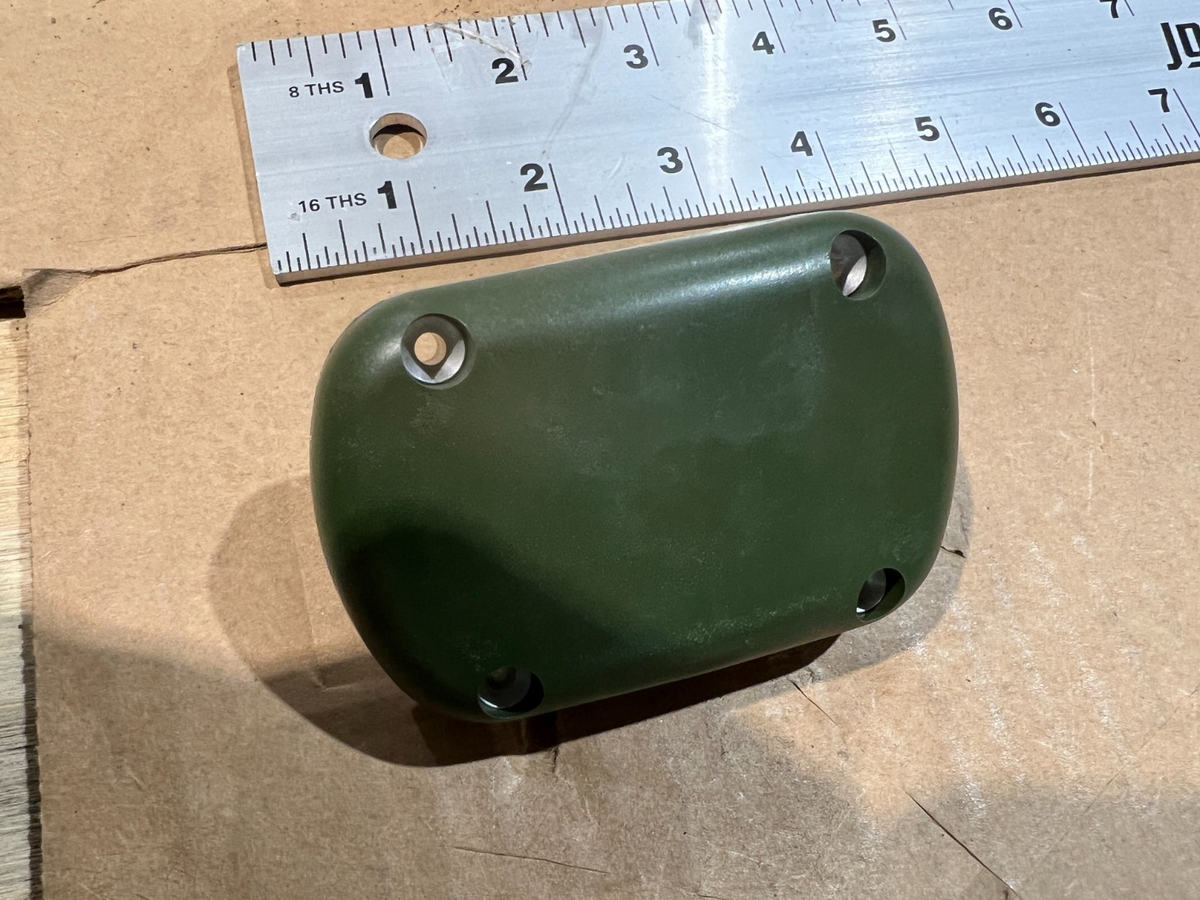

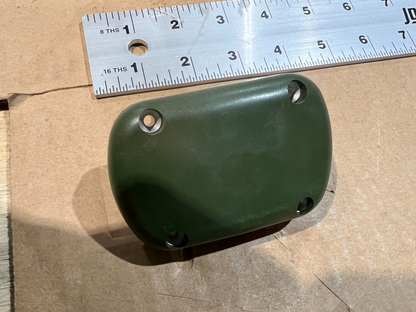

ROCKWELL COLLINS FRANCE 013-1981-020 GPS Antenna (5985-01-521-1775)
Active L1/L2 external GPS antenna with 3VDC operating power and aircraft mounting, circular array design, right circular polarization.
Part Information
- Manufacturer: Rockwell Collins France
- Part Number: 013-1981-020
- NSN: 5985-01-521-1775
- CAGE Code: (see ILS record)
Specifications
- Overall Length: 3.500 in max
- Overall Height: 1.420 in max
- Overall Width: 2.250 in max
- Coaxial Connector Series: TNC
- Connector End Design: Socket
- Electromagnetic Polarization: Right Circular
- Voltage Rating: DC 3.0V
- Design Type: Circular Array
- Terminal Type: Receptacle, Coaxial
- Special Features: Active L1/L2 External GPS Antenna, 3VDC Operating Power, Aircraft Mounting
