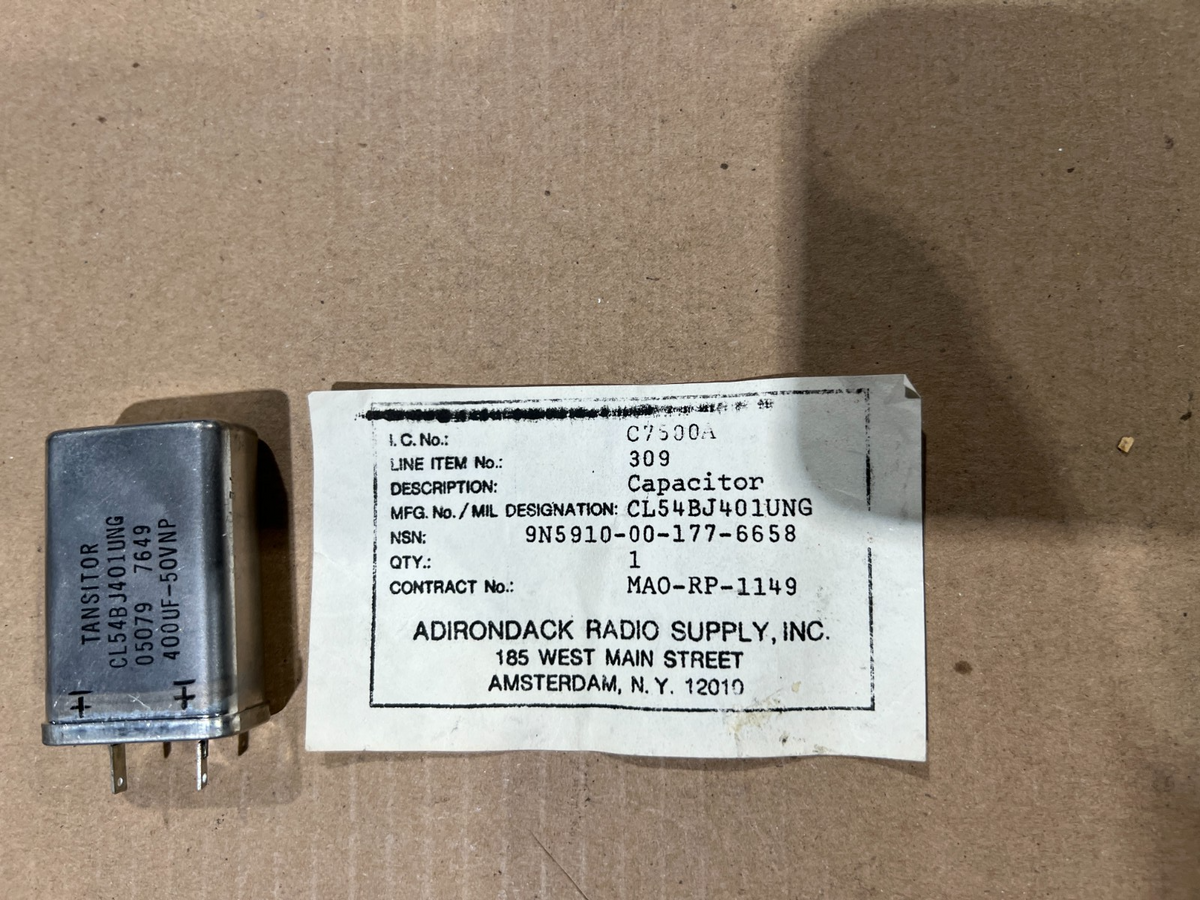

GENERAL PURPOSE MILC3965-12 ETCHED ELECTROLYTIC FIXED CAPACITOR 5910-00-177-6658

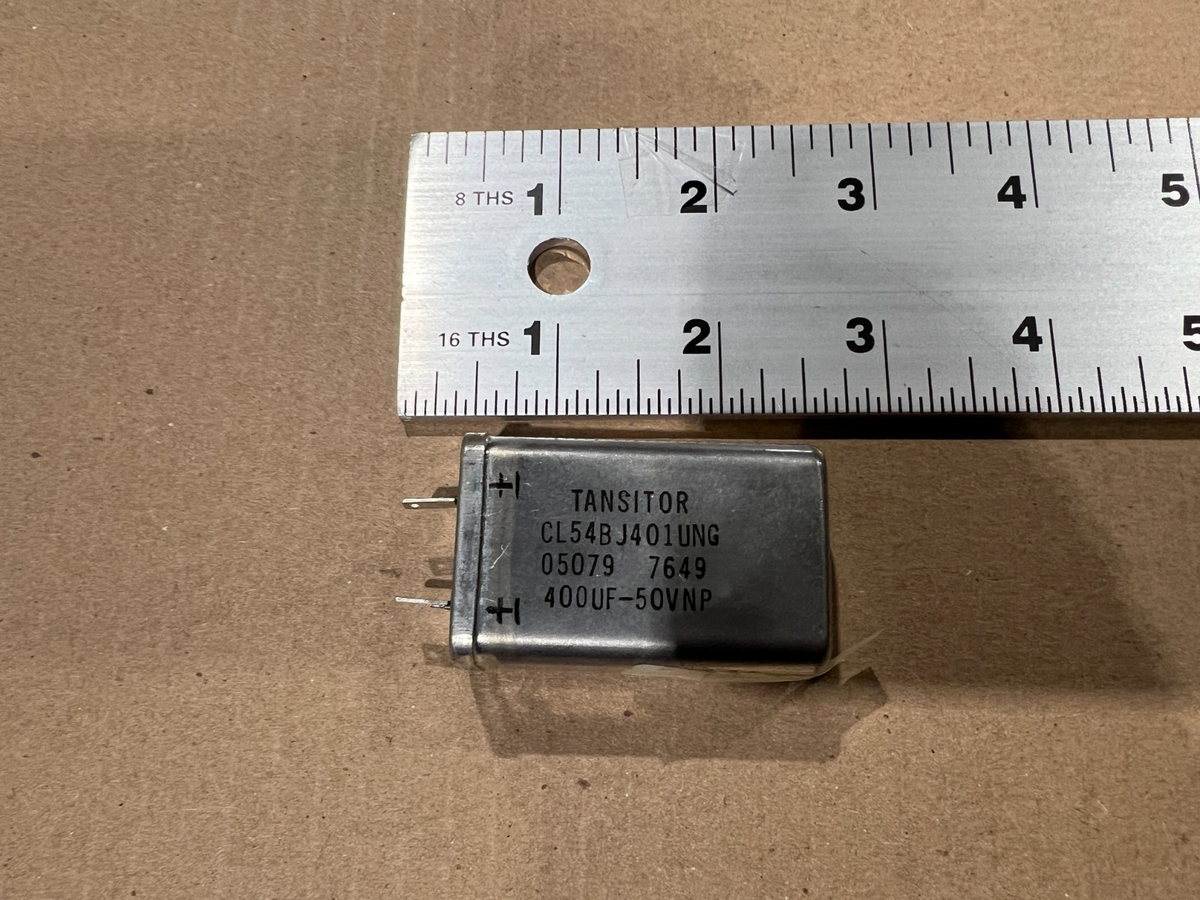

CL54BJ401UNG Electrolytic Fixed Capacitor (5910-00-177-6658)

Tantalum etched-foil electrolytic fixed capacitor, nonpolarized, hermetically sealed, rated 400 microfarads at 50 VDC.

Part Information

• Design Control Activity: Military Specifications
• Part Number: CL54BJ401UNG
• NSN: 5910-00-177-6658

Specifications

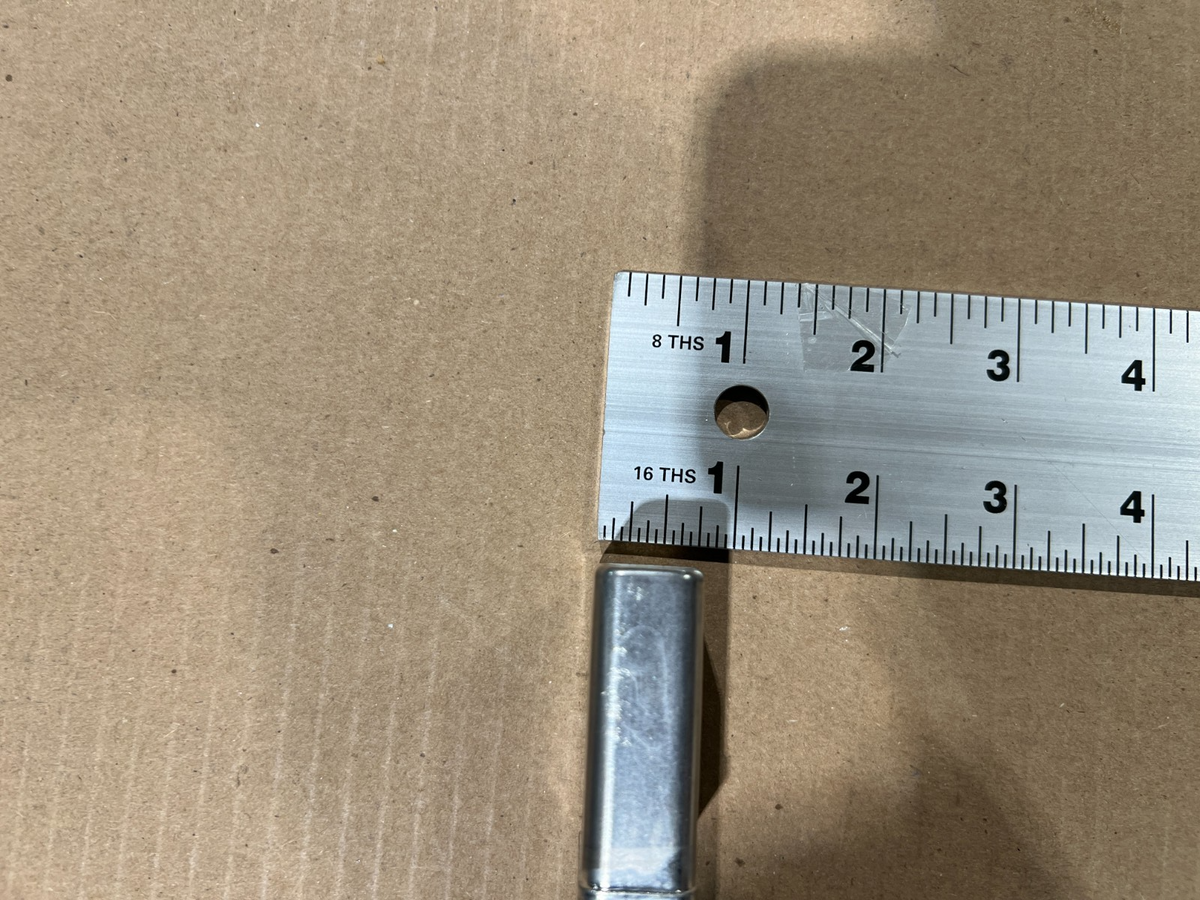

• Body Length: 1.378 in max
• Body Width: 0.783 in nominal
• Body Height: 2.000 in nominal
• Anode Type: Etched Foil
• Electrical Polarization: Nonpolarized
• Features: Hermetically Sealed Case
• Capacitance (Single Section): 400.000 microfarads
• Operating Temp: -55.0°C to 85.0°C
• DC Leakage at Max Operating Temp: 840.0 mA
• DC Leakage at Reference Temp: 84.000 µA
• Voltage Rating (Single Section): 50.0 VDC
• Tolerance Range (Single Section): -15.00% to 75.00%
• Capacitive Electrode Material: Tantalum
• Power Factor at Reference Temp: 20.0%

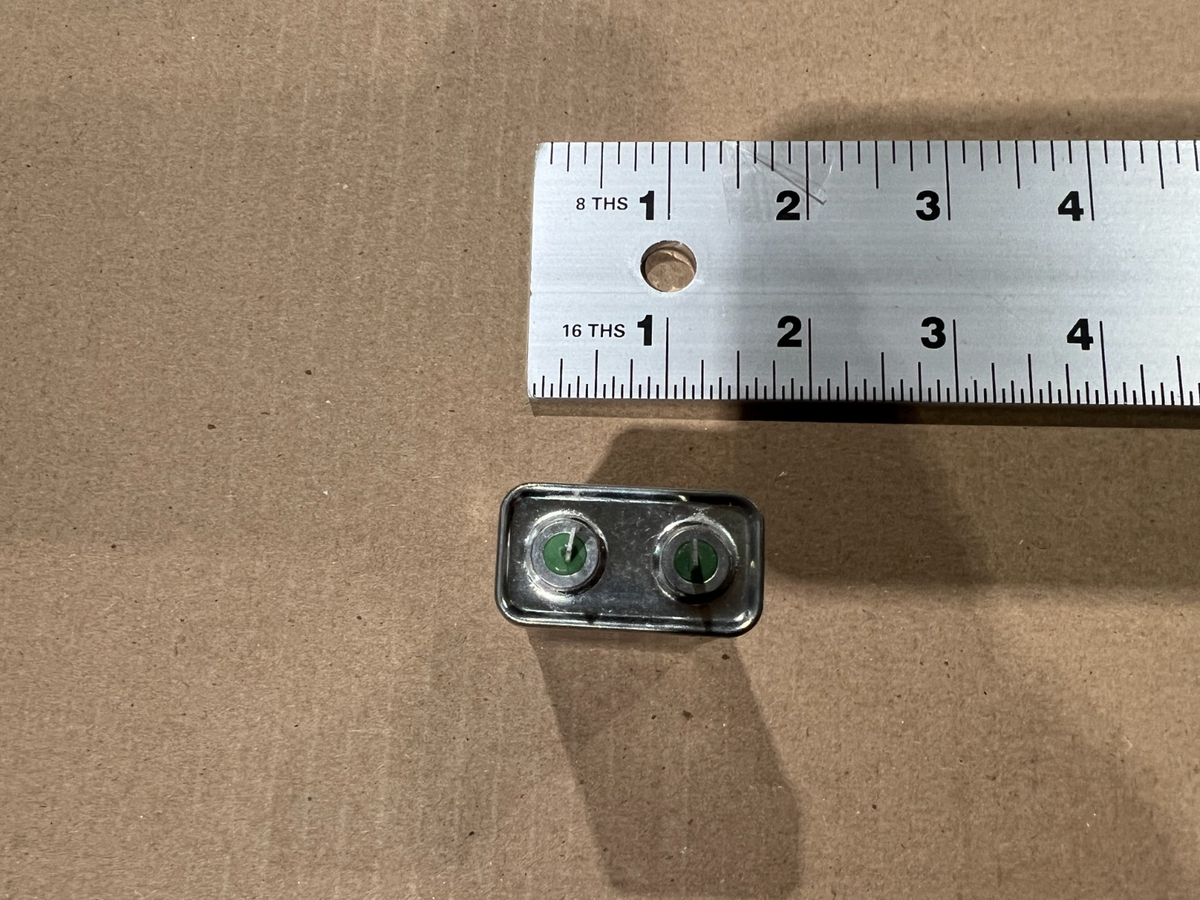

• Terminal Type/Quantity: Tab, Solder Lug (2)

Technical References

• MIL-C-3965 (81349-ILC3965)
