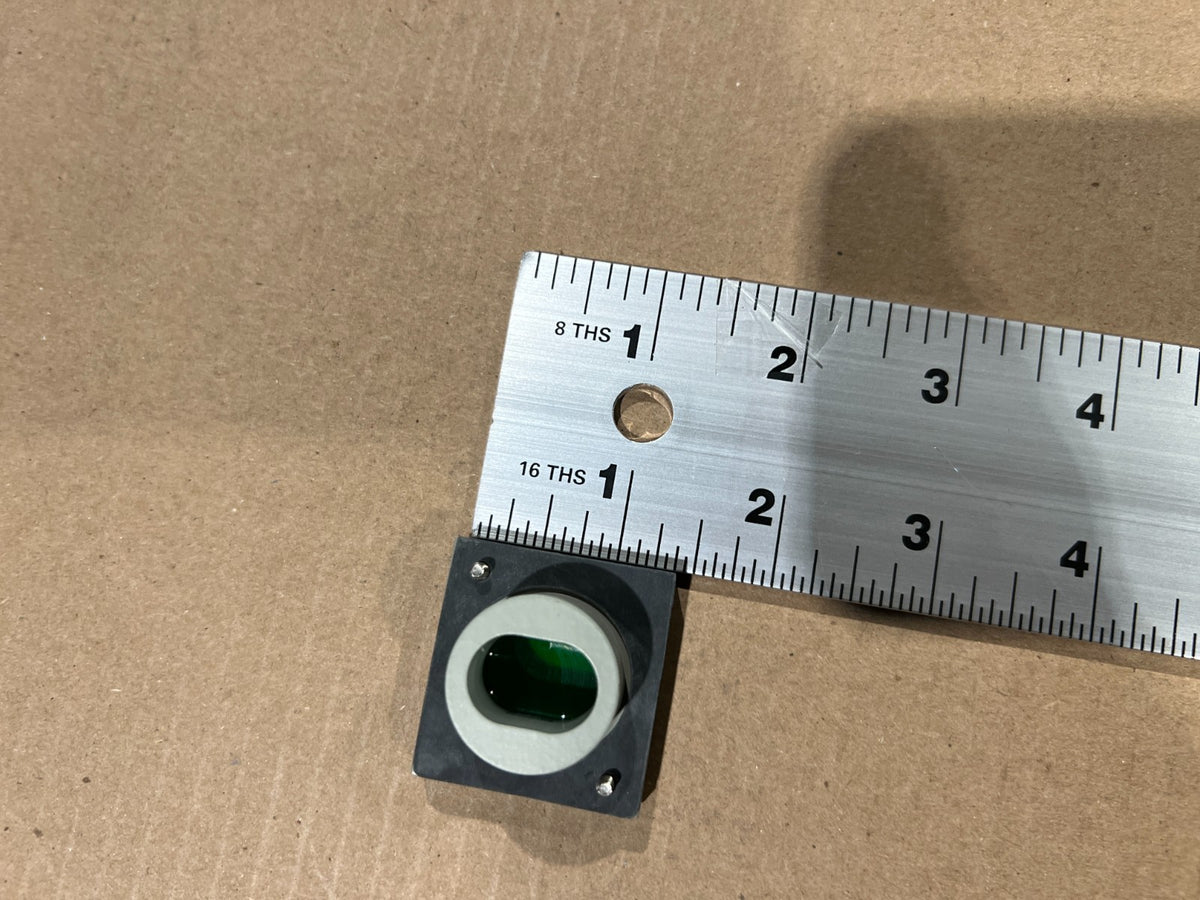

  • Light Lens MIL-L-3661 NSN 6210-00-160-9069 - photo 2

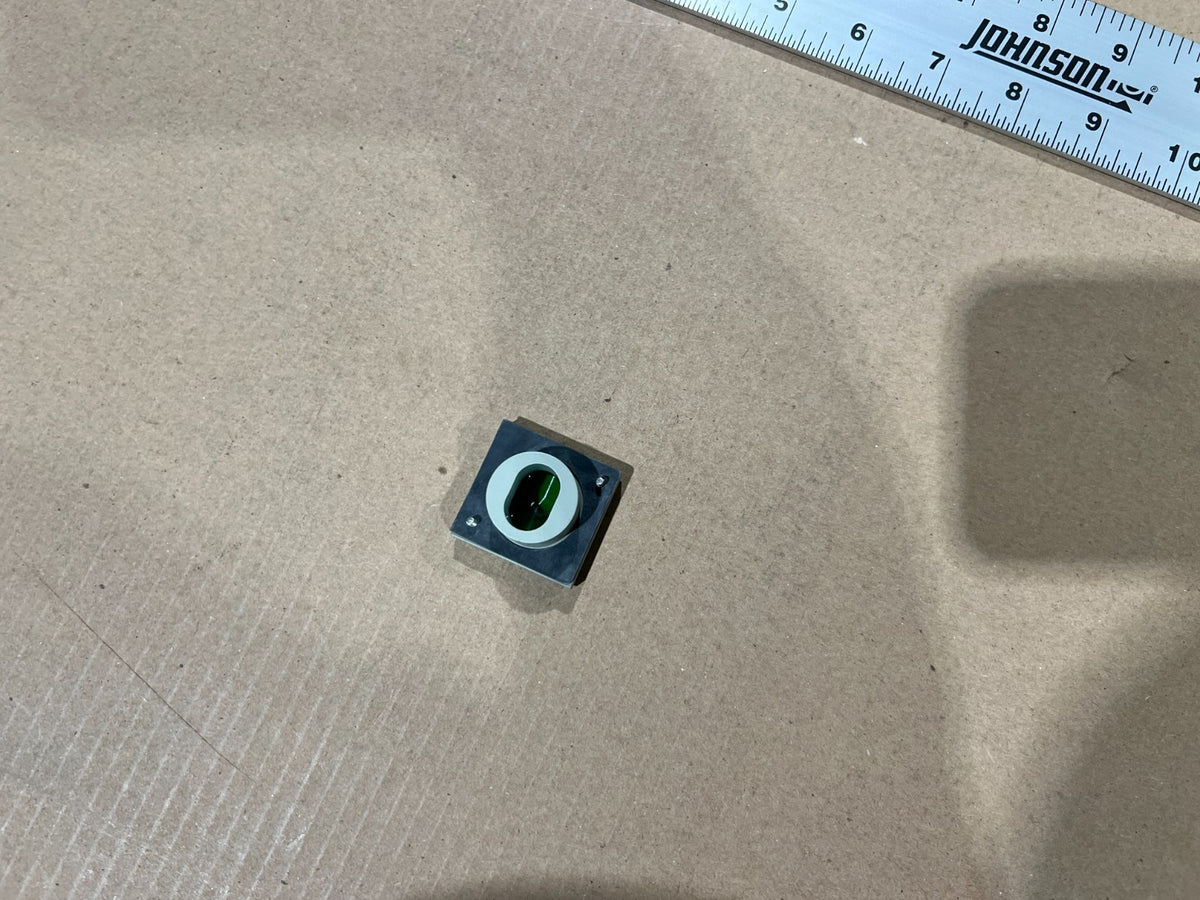

  • Light Lens MIL-L-3661 NSN 6210-00-160-9069 - photo 3

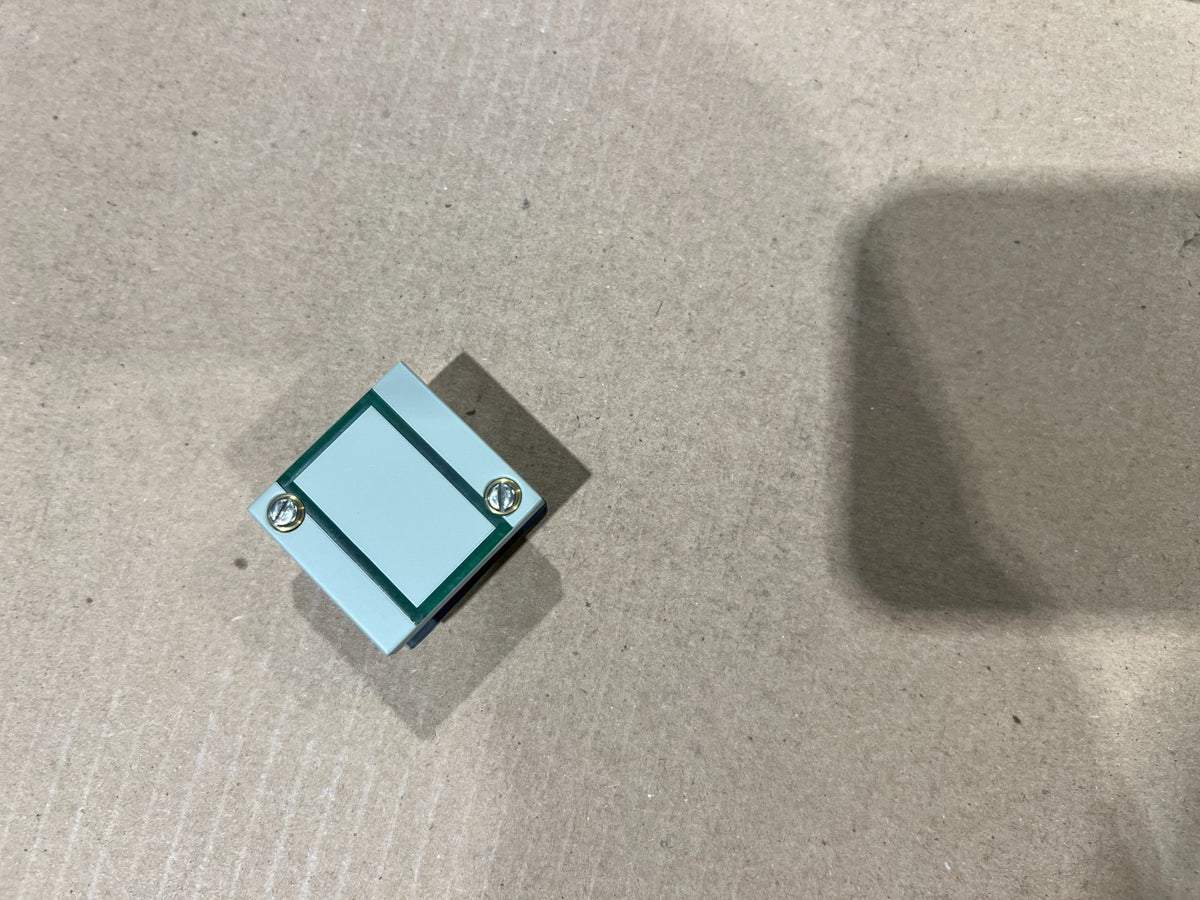

  • Light Lens MIL-L-3661 NSN 6210-00-160-9069 - photo 4
1 4

SECO Parts and Equipment

GENERAL PURPOSE MIL-L-3661 LIGHT LENS MIL-L-3661/58 LC44GN3 6210-00-160-9069 USA

GENERAL PURPOSE MIL-L-3661 LIGHT LENS MIL-L-3661/58 LC44GN3 6210-00-160-9069 USA

$66.80 USD
$66.80 USD
Sale Sold out
Shipping calculated at checkout.

NSN 6210-00-160-9069 Specs and cross-references ↗

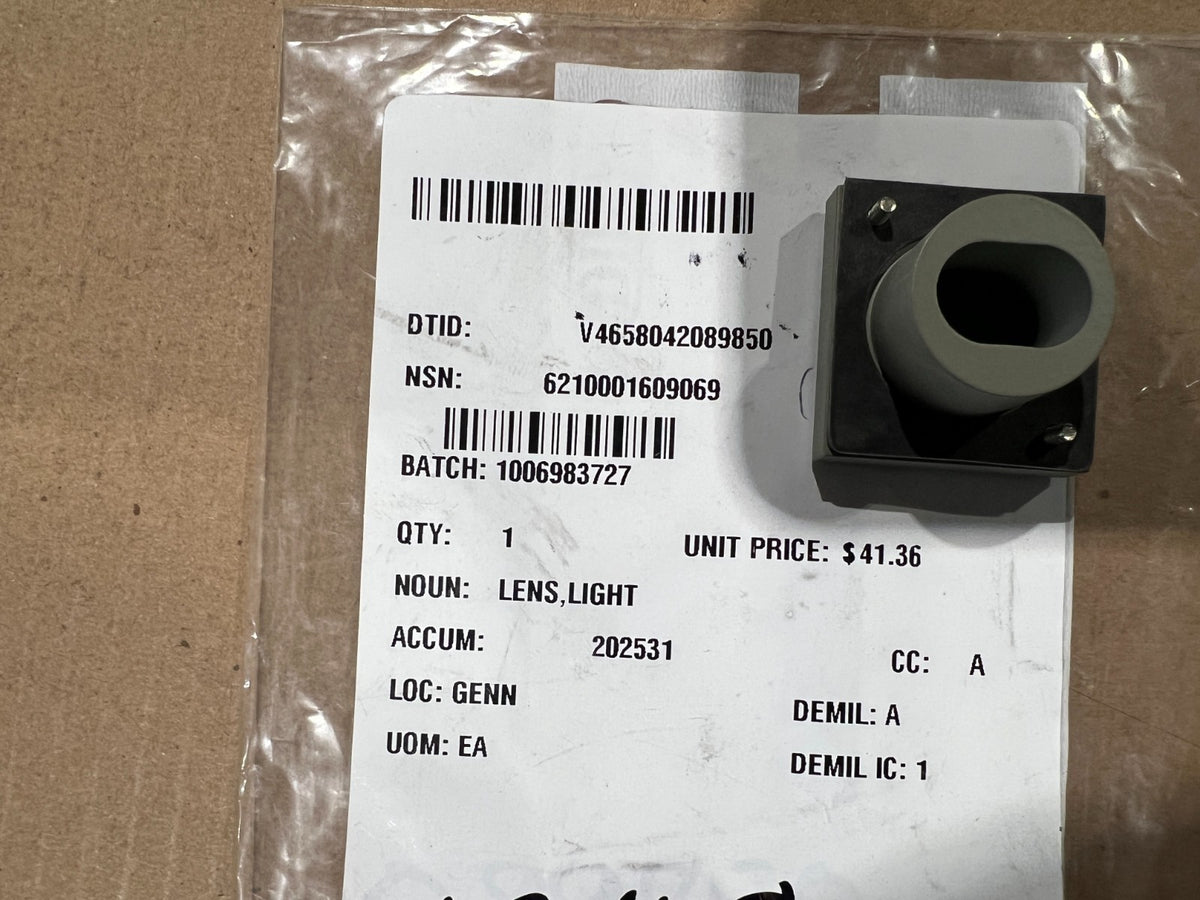

LC44GN3 Light Lens (NSN 6210-00-160-9069)

Plastic light lens, gray, rectangular face, per MIL-L-3661/58 type LC44GN3.

Part Information

  • Design Control Activity: Military Specifications
  • Part Number: LC44GN3
  • NSN: 6210-00-160-9069

Specifications

  • Overall Length: 0.812 in nominal
  • Overall Height: 1.500 in nominal
  • Effective Length: 0.250 in nominal
  • Effective Width: 1.438 in nominal
  • Mounting Device Quantity: 2
  • Mounting End Diameter: 0.990–1.000 in
  • Mounting Method: Screw
  • Light Transmission Design: Transparent lens
  • Inscription: Symbol for a rectangle
  • Face Color: Gray/Grey
  • Lens Color: Gray/Grey
  • Inscription Color: Green
  • Inscription Background Color: Gray/Grey
  • Lens Material: Plastic
  • Face Surface Condition: Painted
  • Back Surface Condition: Smooth
