Gems Sensor XM-55050-39-0510-I-L-50 Liquid Quantity Transmitter 6680-01-272-7076

SETRA SYSTEMS, INC. XM-55050-39-0510-I-L-50 Liquid Transmitter (6680-01-272-7076)

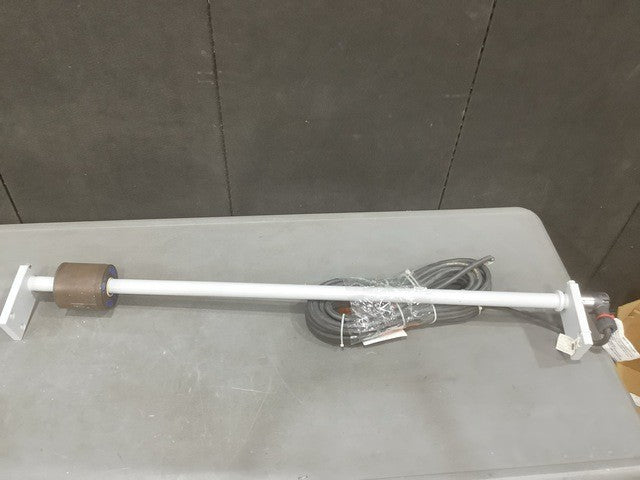

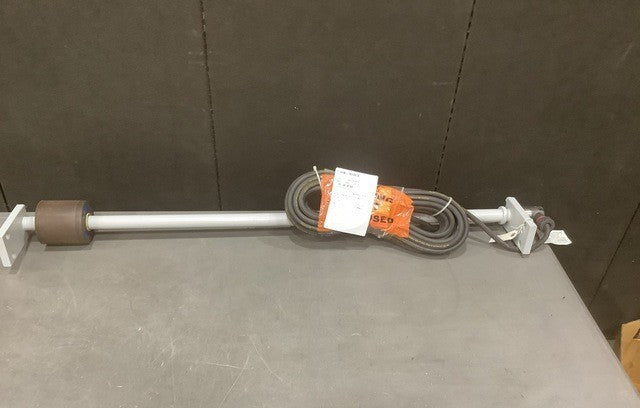

Float-actuated liquid quantity transmitter, DC voltage output, rubber float, 45.75 in nominal overall length.

Part Information

• Manufacturer: Setra Systems, Inc.
• Part Number: XM-55050-39-0510-I-L-50
• NSN: 6680-01-272-7076

Specifications

• Terminal Quantity: 4
• Overall Length: 45.750 in nominal
• Current Type: DC
• Attachment Feature Quantity: 2
• Actuation Method: Float
• Voltage Rating: 10.0 - 12.0 V
• Electrical Connection Quantity: 1
• Electrical Connection Identifying Number: Part No. 36468
• Mounting Method: Bracket(s)
• Resistance: 5.100 ohms per inch of indication
• Pressure Rating: 0.000 - 400.000 PSI
• Float Effective Travel: 40.750 in nominal
• Connector Controlling Agency: Cannon Electric
• Terminal Type: Stud
• Float Material: Rubber Butadiene-Acrylonitrile Class NBR
• Media For Which Designed: Interface
