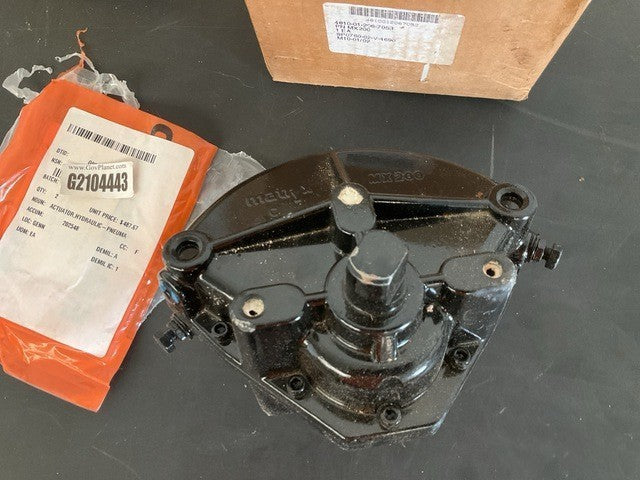

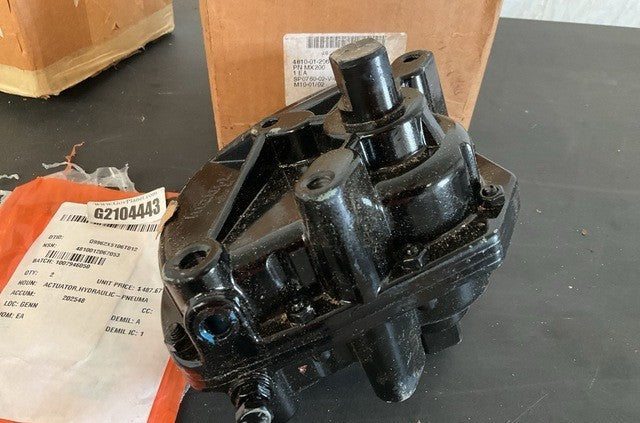

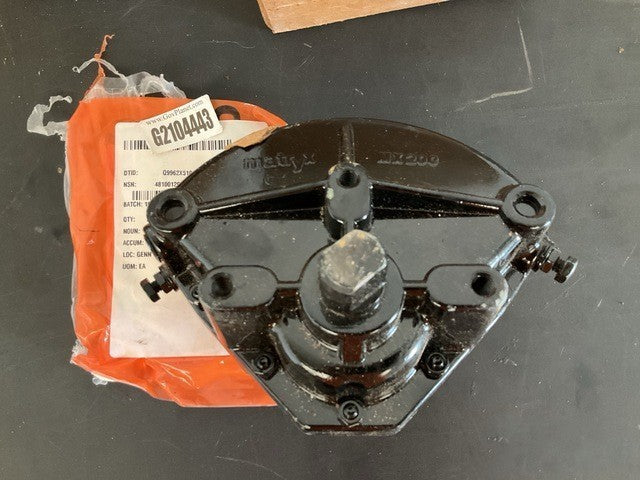

Matryx MX200 Double-Acting Vane Pneumatic Actuator (NSN 4810-01-206-7053)

PRODUCT OVERVIEW:
The Matryx MX200 is a high-performance, double-acting vane-type pneumatic actuator engineered for smooth, reliable quarter-turn valve operation. Designed with a lightweight die-cast aluminum housing and a single internal moving part (the vane), the MX200 delivers exceptional torque output without the risk of spring drift.

This military-grade component carries National Stock Number NSN 4810-01-206-7053 and is widely utilized in industrial fluid management, commercial HVAC control systems, and defense/aerospace applications (including Galaxy C-5 system ground support and valve control assemblies).

KEY FEATURES:
* Direct High-Torque Vane Design: Uses a single moving vane to transmit power directly to the drive shaft, eliminating gear slop, wear points, and mechanical backlash.
* Dual External Travel Stops: Features built-in travel stops allowing stroke angle adjustment of up to ±10° at both ends of rotation for precise valve positioning.
* Corrosion-Resistant Housing: Heavy-duty die-cast aluminum body finished with a durable alkyd enamel coating for maximum environmental protection.
* Consistent Operating Torque: Eliminates "spring drift" associated with standard spring-return actuators, ensuring steady position control even under pressure fluctuations.
* Smooth Operation: Fitted with Buna-N O-rings, integral nylon paddle bearings, and bronze bushings to minimize internal friction and maximize seal life.

TECHNICAL SPECIFICATIONS:
* Manufacturer: Matryx / Xomox (Crane Process Flow Technologies)
* Model Series: MX200 (Double-Acting Vane)
* NSN: 4810-01-206-7053
* Operating Pressure Range: 40 to 120 PSIG
* Operating Temperature: 0°F to 225°F (-18°C to 107°C)
* Air Port Size: 1/4" NPT (4 ports)
* Mounting Pattern: Standard ISO / Commercial 3-Bolt pattern (3/8"-16 threads)
* Housing Material: Die-Cast Aluminum
