FMTV SERIES MILITARY TRUCKS 12422211 GREEN ANGLE BRACKET 5340-01-470-7074 USA
FMTV SERIES MILITARY TRUCKS 12422211 GREEN ANGLE BRACKET 5340-01-470-7074 USA
Regular price
$25.60 USD
Regular price
Sale price
$25.60 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5340-01-470-7074 Specs and cross-references for NSN 5340-01-470-7074 (opens in a new tab) ↗
AMZ ALABAMA INC. 12422211 Angle Bracket (5340-01-470-7074)

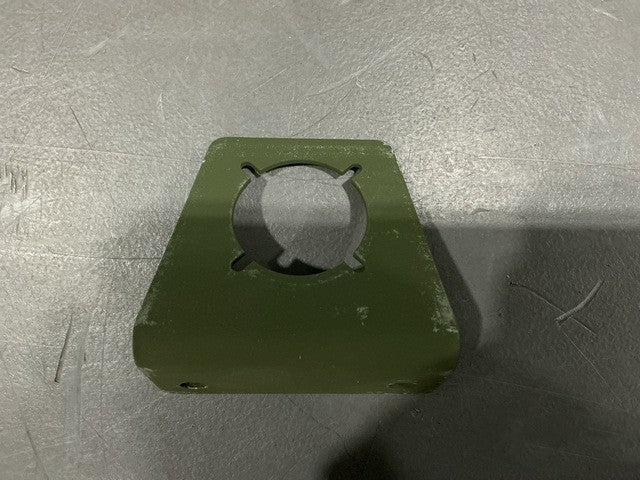

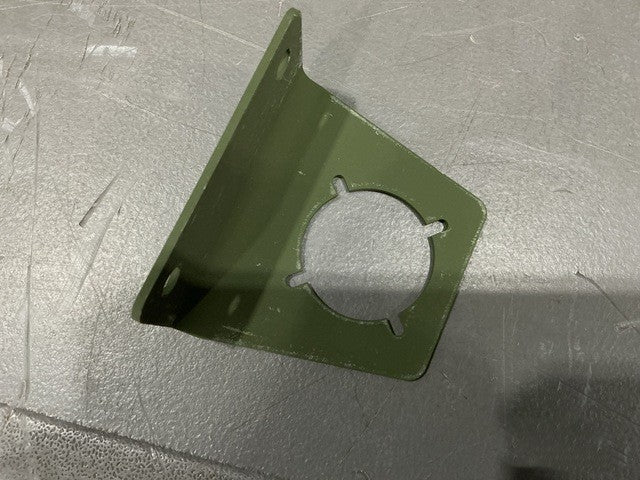

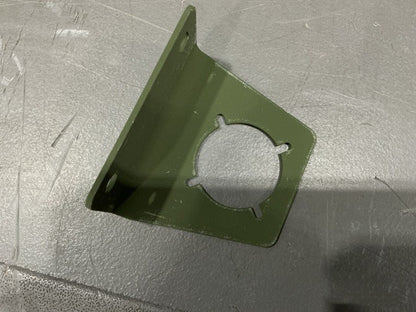

Steel angle bracket for FMTV Series Military Trucks.
Part Information
- Manufacturer: AMZ Alabama Inc.
- Part Number: 12422211
- NSN: 5340-01-470-7074
- End Item: FMTV Series Military Trucks
Specifications
- Material: Steel Comp 1009
- First Leg Length: 34.0–38.0 mm
- Second Leg Length: 61.0–65.0 mm
- First Leg Width: 74.0–78.0 mm
- Second Leg Width: 74.0–78.0 mm
- First Leg Thickness: 0.0747 in nominal
- Second Leg Thickness: 0.0747 in nominal
- Special Features: Center hole on second leg; four extended keys equally spaced on diameter
- Material Document: AST-A366 or AST-A569
Fits
This NSN is listed in the U.S. Army repair parts manuals for:
- FMTV 2-1/2 ton LMTV: M1078, M1079, M1080, M1081 and variants (TM 9-2320-365-24P)
- FMTV 5-ton MTV: M1083, M1084, M1085, M1086, M1088 and variants (TM 9-2320-366-24P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
