Fmtv Lmtv M1078 12420047 Lower Right Transmission Angle Bracket | NSN 5340-01-394-2395
Fmtv Lmtv M1078 12420047 Lower Right Transmission Angle Bracket | NSN 5340-01-394-2395
Regular price
$194.72 USD
Regular price
Sale price
$194.72 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5340-01-394-2395 Specs and cross-references for NSN 5340-01-394-2395 (opens in a new tab) ↗

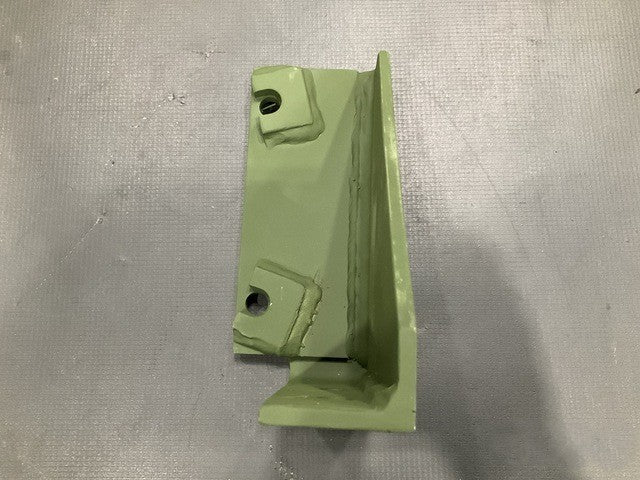

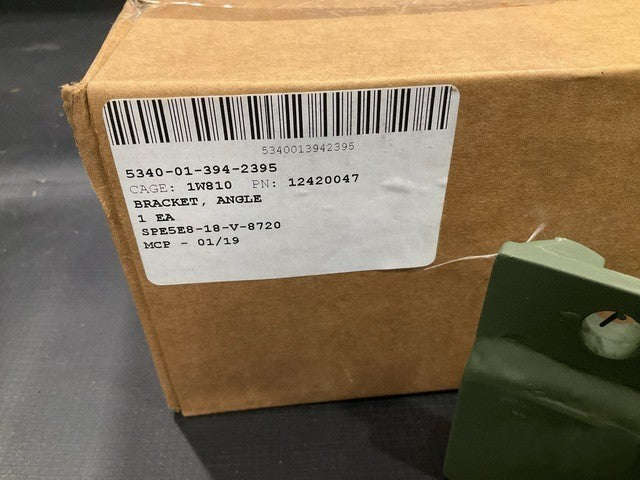

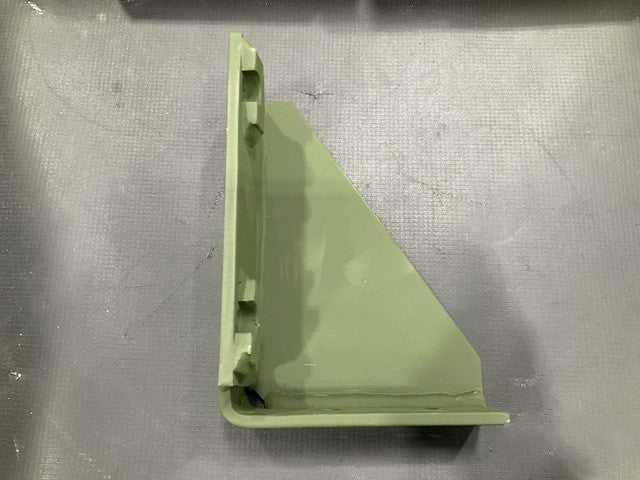

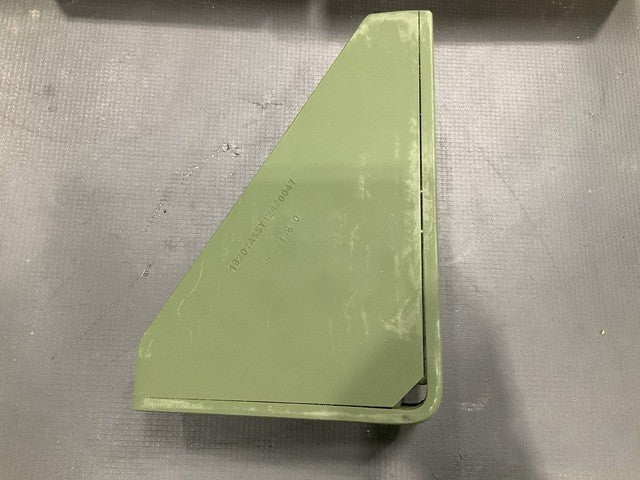

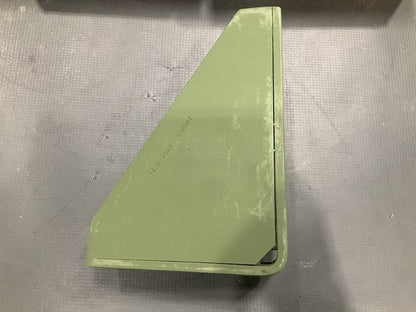

12420047 Lower Right Transmission Angle Bracket (NSN 5340-01-394-2395)
Steel angle bracket, first leg 7.800 in nominal, second leg 5.540 in nominal, for the FMTV LMTV M1078.
Part Information
- Design Control Activity: U.S. Army Tank Automotive Command
- Part Number: 12420047
- NSN: 5340-01-394-2395
- End Item: FMTV LMTV M1078
Specifications
- Material: Steel Comp 1009
- Material Document: AST-A569
- Mounting Hole Type: Plain
- First Leg Length: 7.800 in nominal
- First Leg Width: 2.000 in nominal
- First Leg Thickness: 0.250 in nominal
- First Leg Hole Diameter: 0.559-0.570 in
- First Leg Angle: 0.250 radians nominal
- Second Leg Length: 5.540 in nominal
- Second Leg Width: 3.280 in nominal
- Second Leg Thickness: 0.250 in nominal
- Second Leg Hole Diameter: 0.497-0.508 in
- Second Leg Relationship to First Leg: Not Identical
Fits
This NSN is listed in the U.S. Army repair parts manuals for:

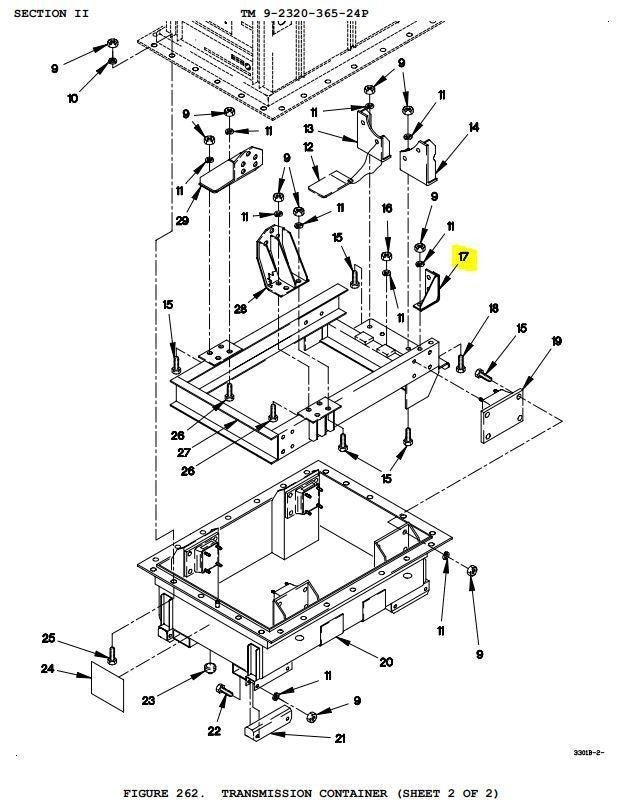

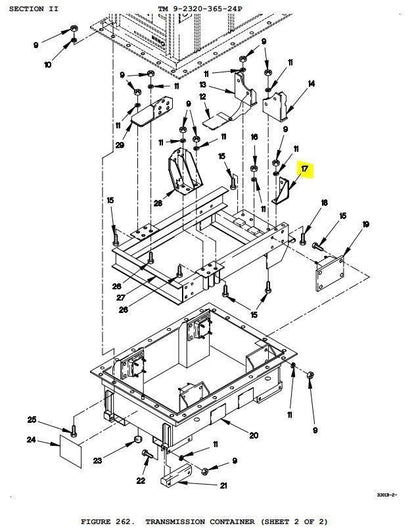

- FMTV 2-1/2 ton LMTV: M1078, M1079, M1080, M1081 and variants (TM 9-2320-365-24P)
- FMTV 5-ton MTV: M1083, M1084, M1085, M1086, M1088 and variants (TM 9-2320-366-24P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
