Fmtv Light Tactical Truck 12422867 Halogen Headlight Assembly | NSN 6220-01-502-1852
Fmtv Light Tactical Truck 12422867 Halogen Headlight Assembly | NSN 6220-01-502-1852
Regular price
$126.20 USD
Regular price
Sale price
$126.20 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 6220-01-502-1852 Specs and cross-references for NSN 6220-01-502-1852 (opens in a new tab) ↗

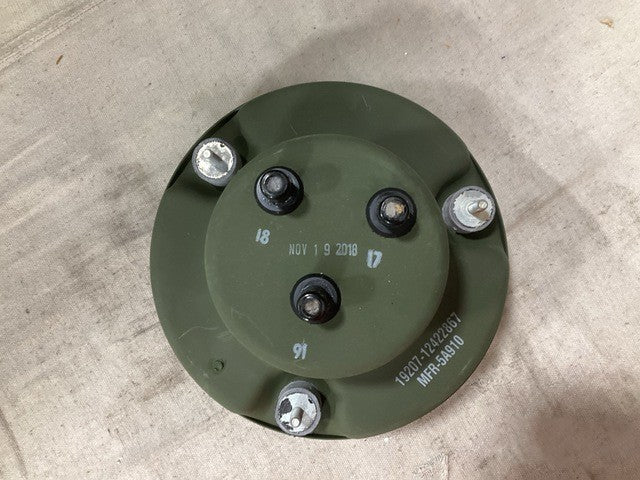

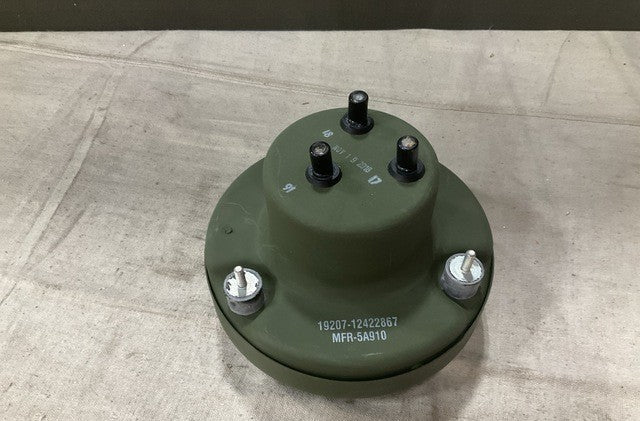

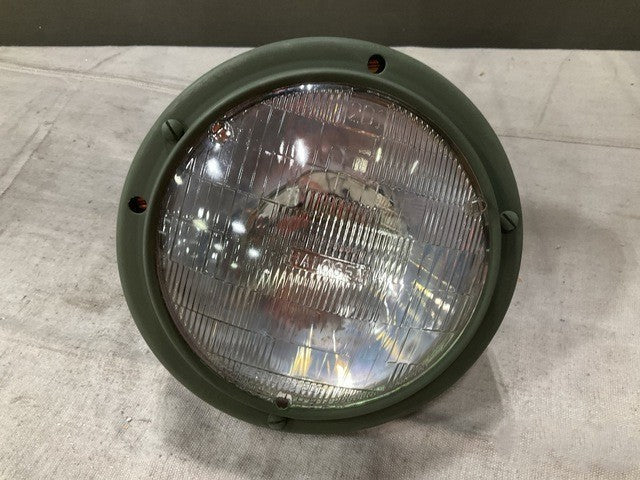

12422867 Halogen Headlamp Assembly 7 Inch Flush Mounted (NSN 6220-01-502-1852)
Halogen headlamp assembly, 7 inch flush mounted, steel body, for the FMTV.
Part Information
- Design Control Activity: U S Army Tank Automotive Command
- Part Number: 12422867
- NSN: 6220-01-502-1852
- End Item: FMTV
Specifications
- Overall Diameter: 7.000 inches nominal
- Lamp Base Type Accommodated: Three contact lugs
- Mounting Method: Screw
- Lamp Type Accommodated and Quantity: Incandescent, 1
- Material: Body - Steel
- Shape: Round
Fits
This NSN is listed in the U.S. Army repair parts manuals for:
- FMTV 2-1/2 ton LMTV: M1078, M1079, M1080, M1081 and variants (TM 9-2320-365-24P)
- FMTV 5-ton MTV: M1083, M1084, M1085, M1086, M1088 and variants (TM 9-2320-366-24P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
