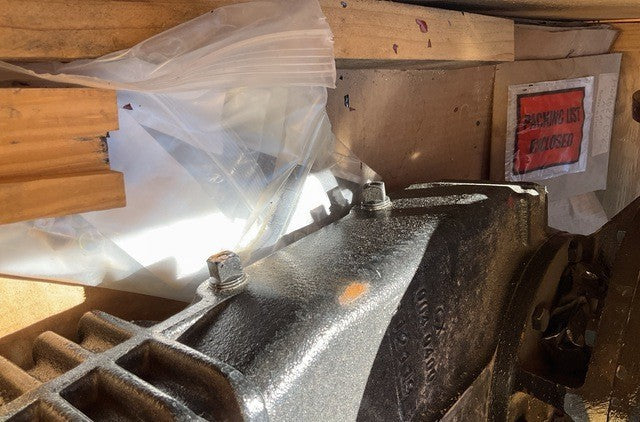

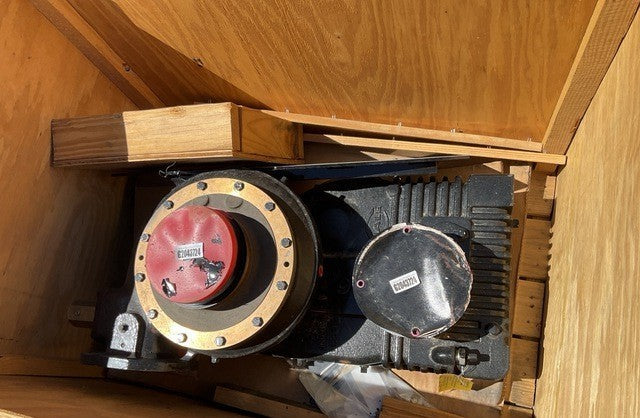

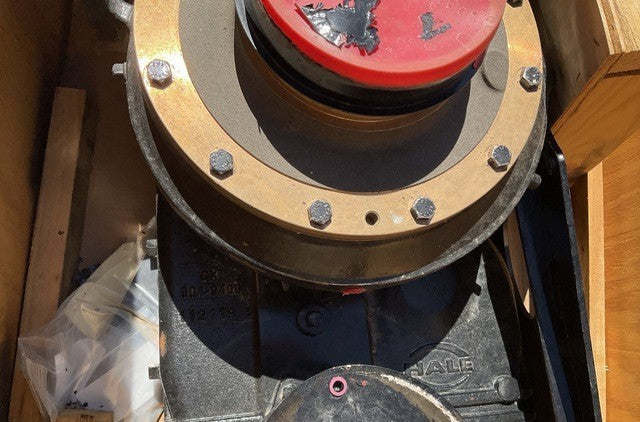

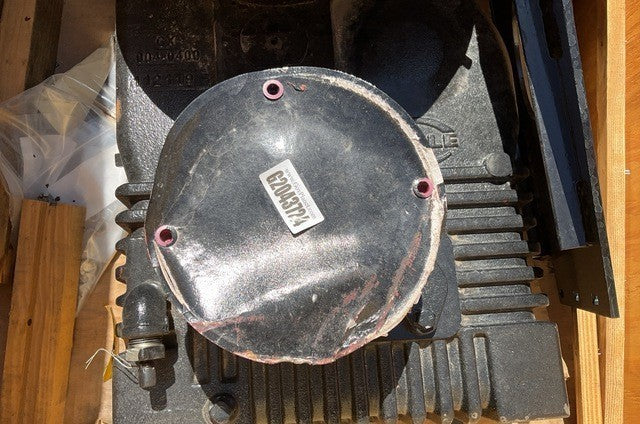

FIRE/CRASH P23 Truck Hale DSD150-15L Centrifugal Pump 600393 4320-01-418-6204
FIRE/CRASH P23 Truck Hale DSD150-15L Centrifugal Pump 600393 4320-01-418-6204
Regular price
$46,300.43 USD
Regular price
Sale price
$46,300.43 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 4320-01-418-6204 Specs and cross-references for NSN 4320-01-418-6204 (opens in a new tab) ↗
HALE PRODUCTS, INC. 501-2630-10-0 Centrifugal Pump (4320-01-418-6204)
Hale centrifugal pump, single stage, mixed flow design, for the FIRE/CRASH P23 Truck.
Part Information
- Manufacturer: Hale Products, Inc.
- Part Number: 501-2630-10-0
- NSN: 4320-01-418-6204
- End Item: FIRE/CRASH P23 Truck
Specifications
- Stage Quantity: 1
- Intake Connection: 1, Round Flange
- Discharge Connection: 1, Round Flange
- Drive Connection Type: Flexible Coupled
- Maximum Discharge Flow Rate: 2040 GPM
- Discharge Pressure: 160 PSIG
- Pumping Element Operating Position: Vertical
- Pump Rotation Direction: Counterclockwise
- Centrifugal Pump Design: Mixed Flow

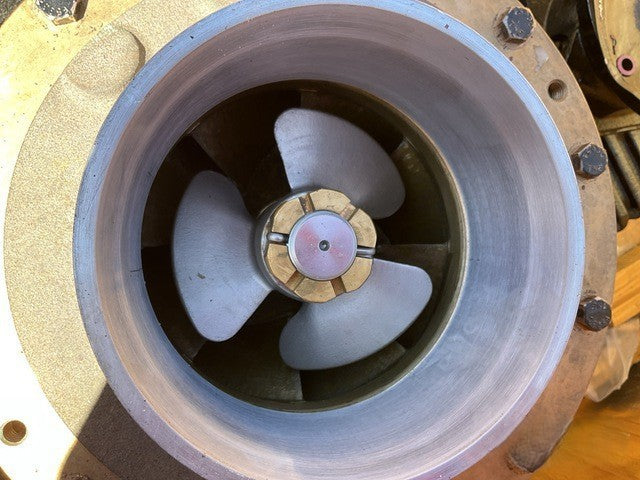

- Impeller Quantity: 1
- Special Features: Pump gear transmission included; thermal relief valve set to open between 150-170°F
- Media For Which Designed: Foam and water, fresh
