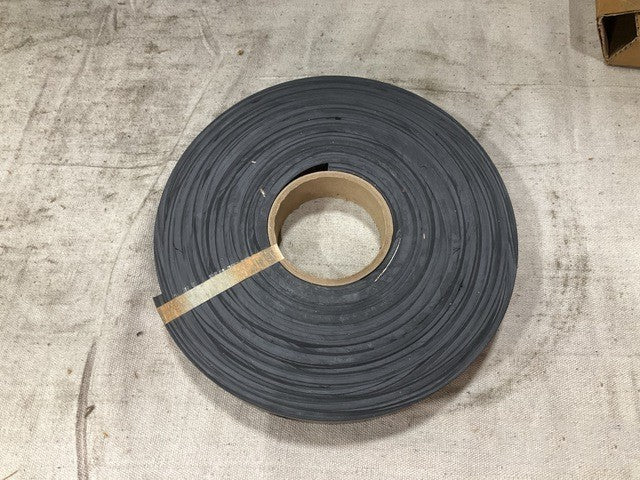

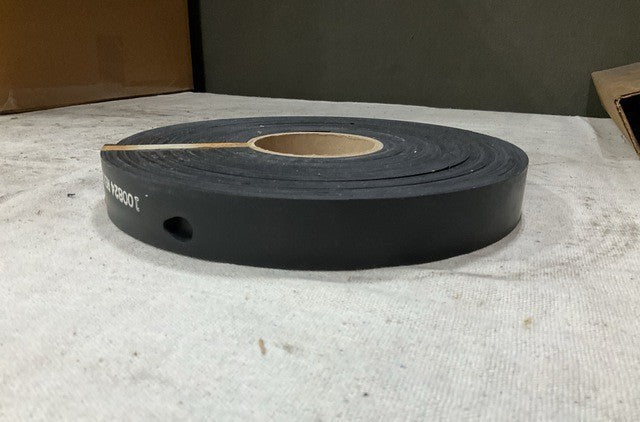

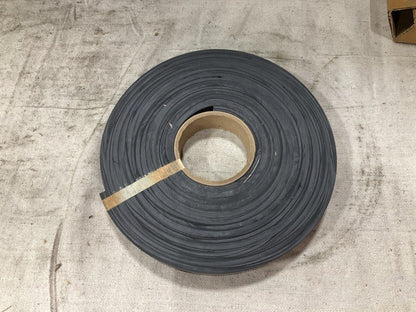

1670AS151 Chloroprene Rubber Gasket (5330-01-200-7020)

Rubber chloroprene gasket, 6 bolt holes, weather and low temperature resistant.

Part Information

• Design Control Activity: Naval Air Systems Command
• Part Number: 1670AS151
• NSN: 5330-01-200-7020

Specifications

• Hole Diameter (location not otherwise specified): 0.500 in nominal
• Overall Length: 264.000 in nominal
• Overall Width: 1.250 in nominal
• Bolt Hole Centerline to Nearest Edge Distance: 0.625 in nominal
• Cross-Sectional Thickness: 0.250 in nominal
• Bolt Hole Quantity: 6
• Hardness Rating: Shore Durometer A-2, 60.0 nominal
• Operating Medium: Oil, petroleum base or ozone
• Special Features: Weather and low temperature resistant; 16 slots equally spaced 17.000 in apart along length, not on centerline
• Material: Rubber chloroprene, Class CR
• Material Document and Classification: MIL-R-6855, CL 2, Grade 60
