DROPSIDE 2 1/2-TON 6X6 TRUCKS 11647908 BRACKET MOUNTING PLATE 2530-00-001-9228
DROPSIDE 2 1/2-TON 6X6 TRUCKS 11647908 BRACKET MOUNTING PLATE 2530-00-001-9228
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 2530-00-001-9228 Specs and cross-references for NSN 2530-00-001-9228 (opens in a new tab) ↗

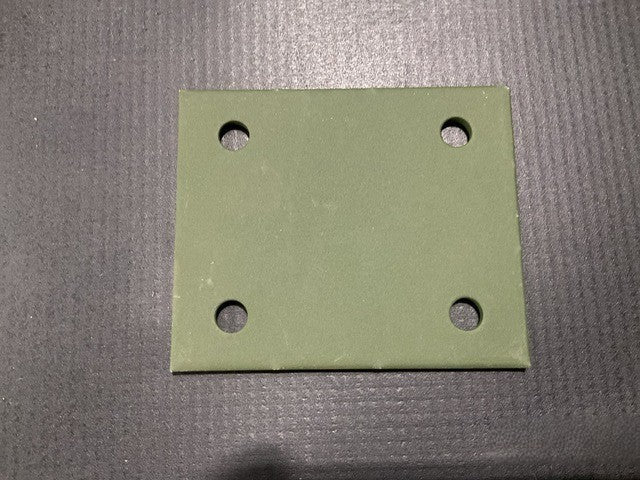

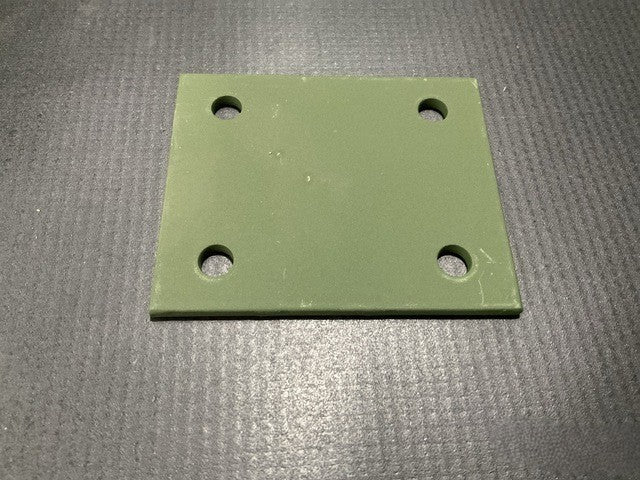

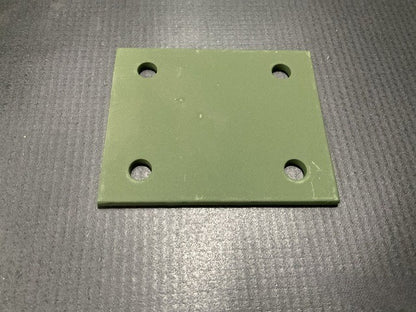

11647908 Mounting Bracket Plate (2530-00-001-9228)
Low carbon steel mounting bracket plate, rectangular, four mounting holes, for Dropside 2 1/2-Ton 6x6 Trucks.
Part Information
- Design Control Activity: U S Army Tank Automotive Command
- Part Number: 11647908
- NSN: 2530-00-001-9228
- End Item: Dropside 2 1/2-Ton 6x6 Trucks
Specifications
- Material: Low carbon steel, 0.118 in. thick
- Finish: OD enamel
- Shape: Rectangular, four mounting holes, 0.280 in. dia
- Overall Dimensions: 2.500 in. W x 3.000 in. L
Fits
This NSN is listed in the U.S. Army repair parts manuals for:
- M35 2-1/2 ton series: M34, M35, M35A1, M35A2, M35A2C, M36A2, M185 series (TM 9-2320-209-20P)
- M35A2 / M44A2 2-1/2 ton series: M35A2, M35A2C, M36A2, M49A2C, M50A3, M109A3, M185A3 (TM 9-2320-361-24P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
