BRADLEY BFVS 12384730 RIGHT-HAND MANUAL CONTROL HANDLE 12472301 5340-01-372-4164

12384730 Manual Control Handle (5340-01-372-4164)

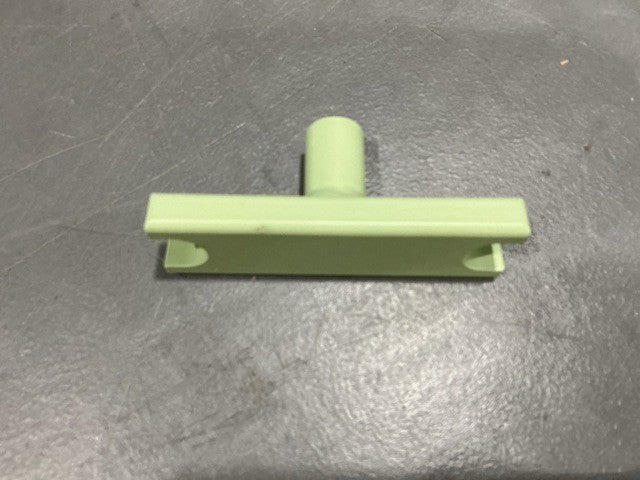

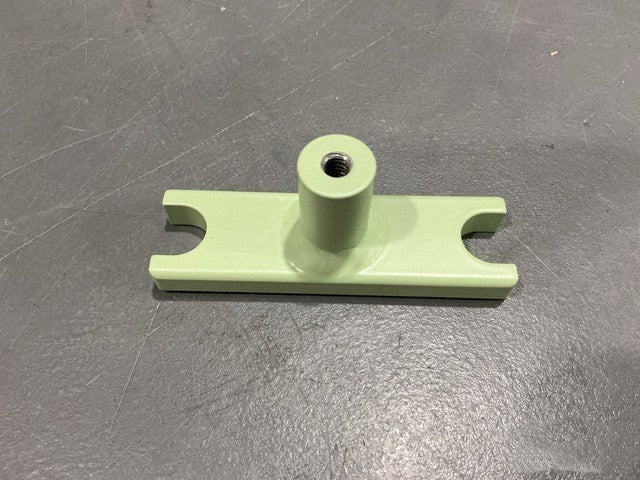

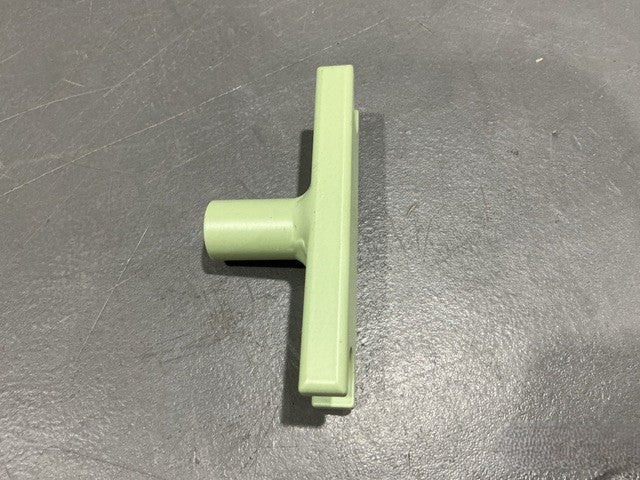

Aluminum alloy manual control handle with right-hand threaded shaft mounting, for the BRADLEY BFVS.

Part Information

• Design Control Activity: U.S. Army Tank Automotive Command
• Part Number: 12384730
• NSN: 5340-01-372-4164
• End Item: BRADLEY BFVS

Specifications

• Thread Class: 2B
• Thread Direction: Right-hand
• Thread Length: 1.120 in. nominal
• Mounting Method: Threaded shaft
• Thread Quantity: 20 per inch
• Nominal Thread Size: 0.250 in.
• Thread Series: Unified National Coarse (UNC)
• Material: Aluminum alloy 5083 or 5086
• Material Spec: QQ-A-250/6 H111 or H321, or QQ-A-200/4 H111, or QQ-A-250/7 H32 or H111, or QQ-A-200/5 H111
• Surface Treatment: Plastic epoxy and plastic polyamide per MIL-C-22750 TY 1
