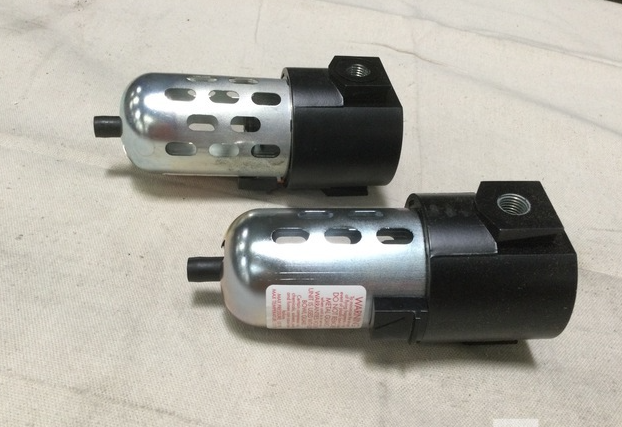

BOSCH PF007900-00010 FILTER R432016077 4330-01-319-3546 P15

BOSCH PF007900-00010 FILTER R432016077 4330-01-319-3546 P15

$48.95 USD
$48.95 USD
Sale Sold out
Shipping calculated at checkout.
MOUNTING TYPE INLET CONNECTION AND OUTLET CONNECTION LINE
FILTRATION RATING IN MICRONS 5.0 NOMINAL
DROP PRESSURE 20.0 POUNDS PER SQUARE INCH
DESIGN TYPE REUSABLE
TEMP RATING 125.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED DRAIN PLUG
FILTERING ELEMENT QUANTITY 1
MAXIMUM OPERATING PRESSURE 150.0 POUNDS PER SQUARE INCH
FILTERING MEDIA DESIGN ANY ACCEPTABLE SINGLE FILTERING MEDIA RESPONSE
FIRST INTAKE CONNECTION TYPE THREADED INTERNAL PIPE HEAD
FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION IDENTICAL TO FIRST INTAKE CONNECTION
FIRST INTAKE THREAD SERIES DESIGNATOR NPT
FIRST INTAKE NOMINAL THREAD SIZE 0.250 INCHES
FIRST INTAKE THREAD DIRECTION RIGHT-HAND
FILTERING SYSTEM FOR WHICH DESIGNED FULL FLOW
MATERIAL FIBER FILTERING MEDIUM
MATERIAL METAL BODY
MATERIAL PLASTIC SEDIMENT BOWL
MEDIA FOR WHICH DESIGNED AIR
STYLE DESIGNATOR HIGH PRESSURE THREADED BODY
