BFVS BRADLEY FIGHTING 12292593-1 BEARING AND BUSHING INSERTER 5120-01-115-3093

12292593-1 Bearing And Bushing Inserter (5120-01-115-3093)

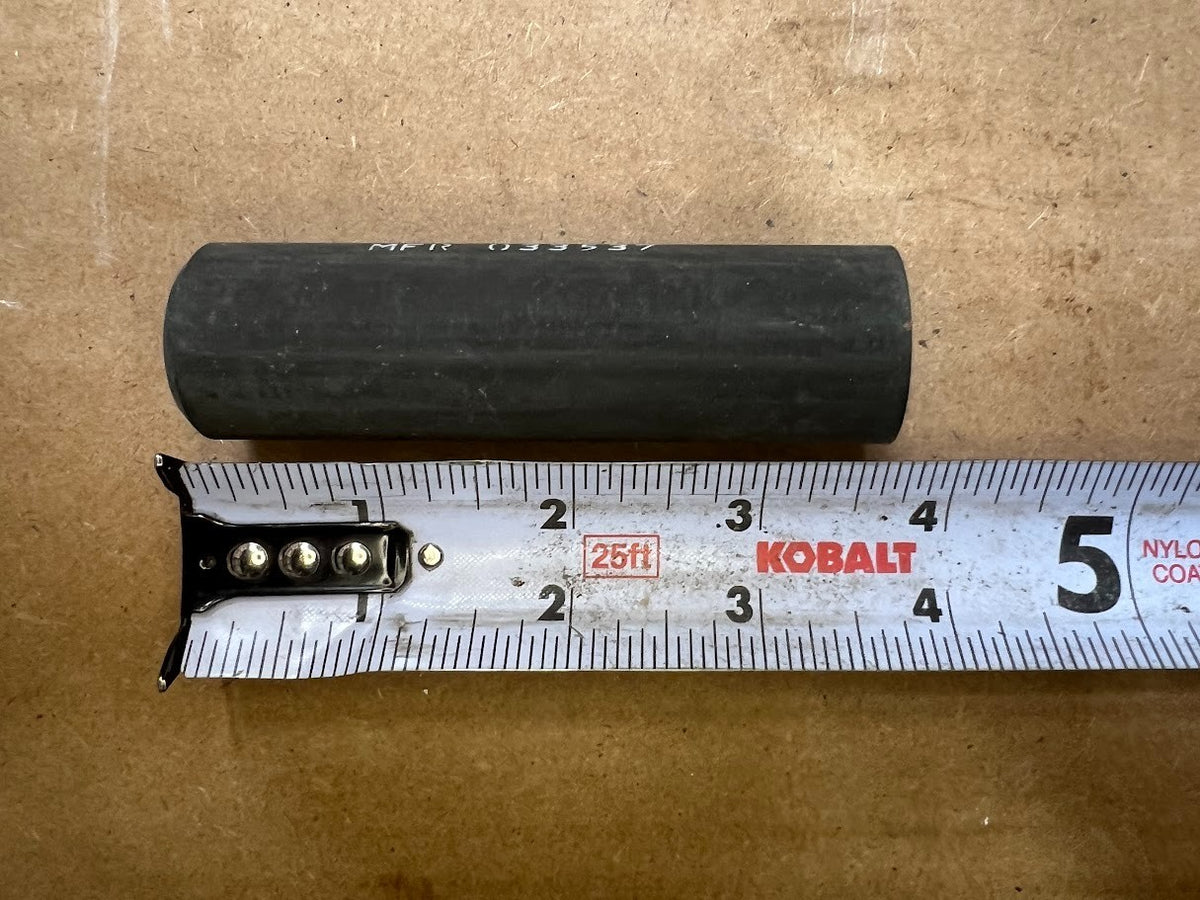

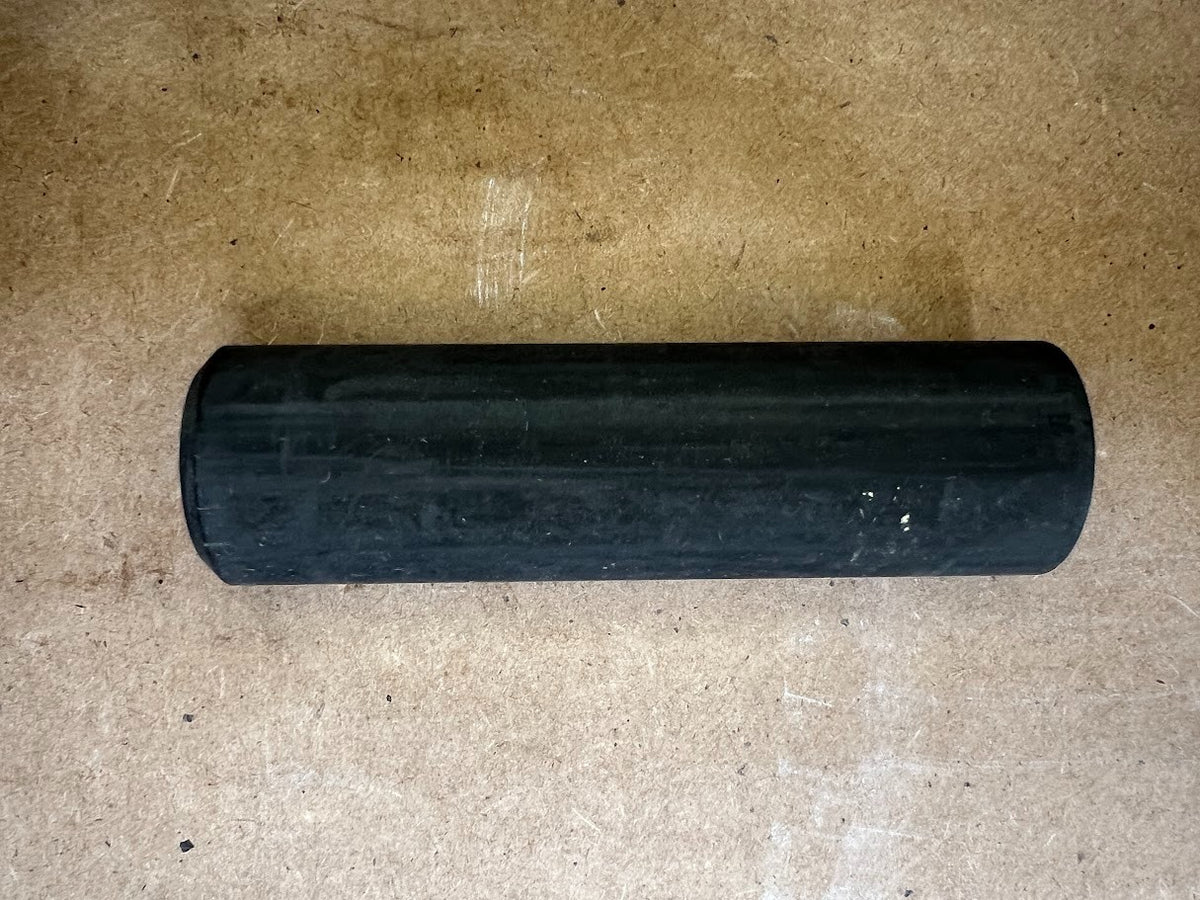

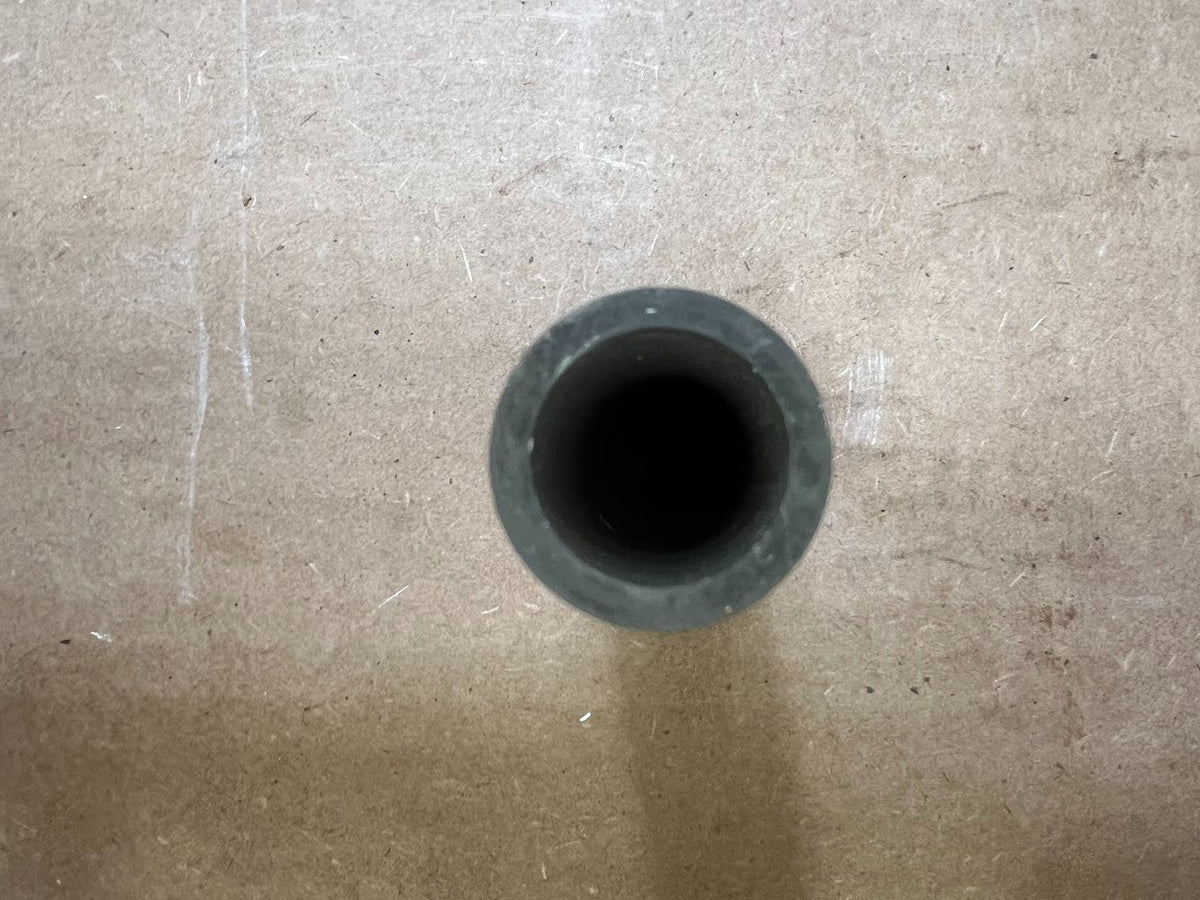

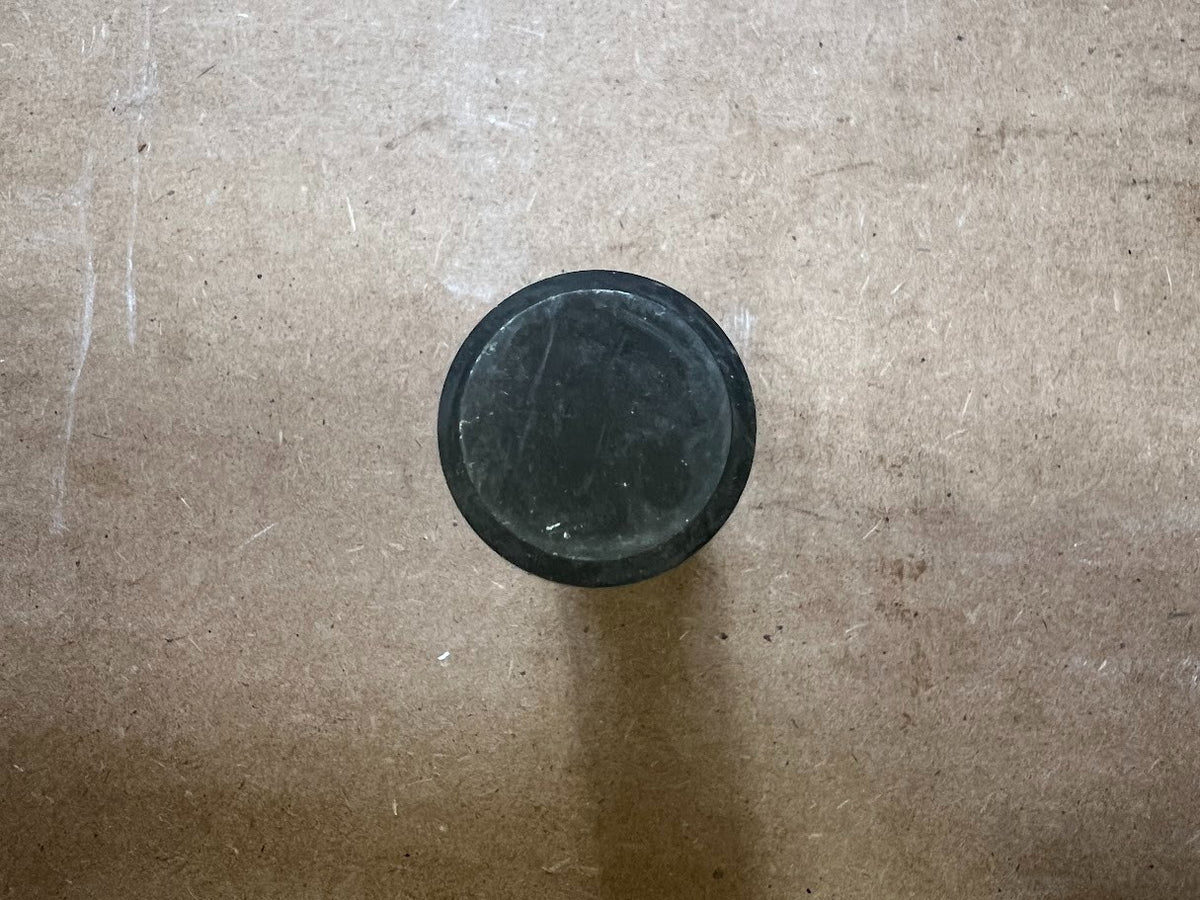

Steel bearing and bushing inserter with pilot drive end for impact installation, for the Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavalry Fighting Vehicle (M3, M3A1, M3A2).

Part Information

• Design Control Activity: U S Army Tank Automotive Command
• Part Number: 12292593-1
• NSN: 5120-01-115-3093
• End Item: Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavalry Fighting Vehicle (M3, M3A1, M3A2)

Specifications

• Material: Steel
• Shape: Round With Flat
• Operation Method: Impact
• Drive End Type: Pilot
• Pilot Diameter: 0.765 in nominal
• Pilot Length: 2.120 in nominal
• Diameter: 1.000 in nominal
• Overall Length: 3.500 in nominal
• Special Features: Phosphate coat MIL-C-16232, Type M, Class 2; heat treat to Rockwell C 24-28, MIL-H-6875 prior to finish machining
