ASSAULT BREACHER L-3 COMMUNICATIONS E9AR108-011 ANGLE BRACKET 5340-01-433-2749

RENK America LLC E9AR108-011 Angle Bracket (NSN 5340-01-433-2749)

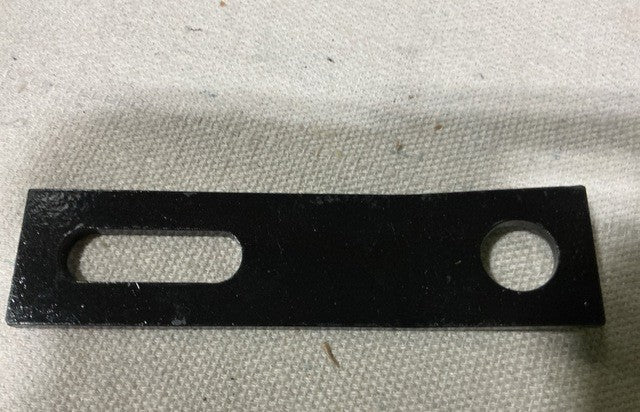

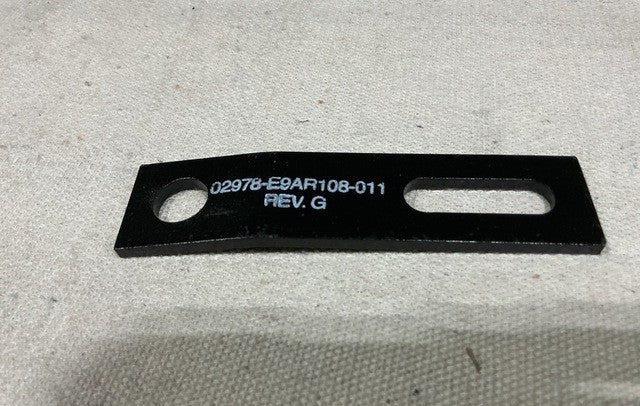

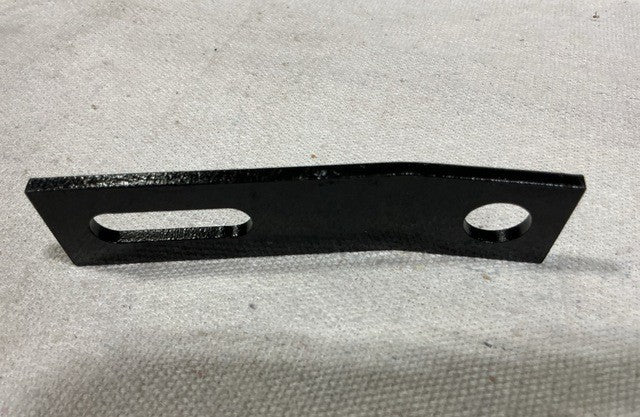

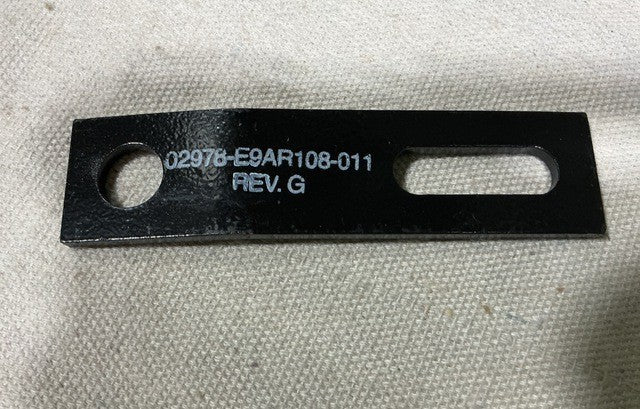

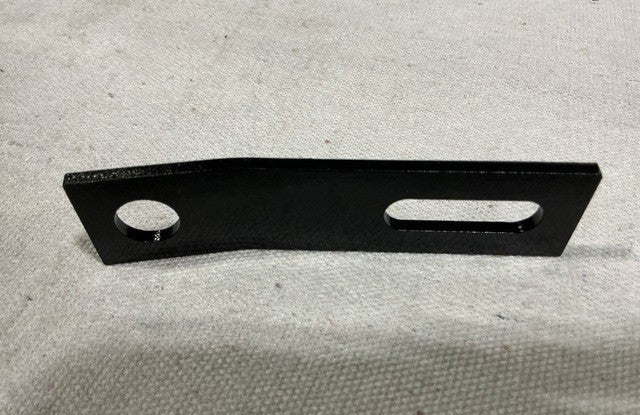

Steel comp 4130 angle bracket with enamel finish, for the ASSAULT BREACHER.

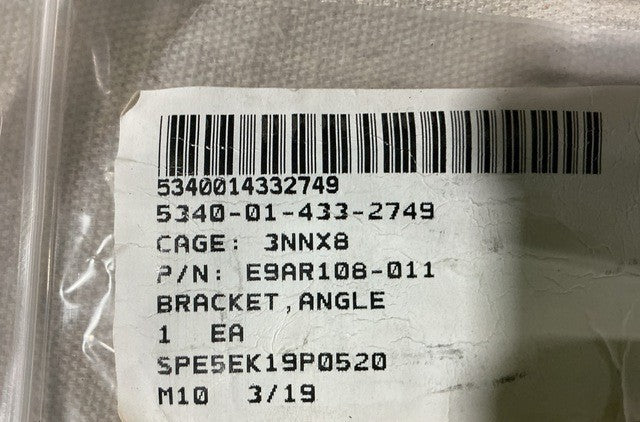

Part Information

• Manufacturer: RENK America LLC
• Part Number: E9AR108-011
• NSN: 5340-01-433-2749
• End Item: ASSAULT BREACHER

Specifications

• Material: Steel Comp 4130
• Material Spec: MIL-S-18729 Cond N
• Surface Treatment: Enamel
• Surface Treatment Spec: TT-E-489
• First Leg Length: 1.250 in nominal
• Second Leg Length: 2.750 in nominal
• First Leg Width: 1.000 in nominal
• Second Leg Width: 1.000 in nominal
• First Leg Hole Diameter: 0.490–0.510 in
• First Leg Thickness: 0.127–0.134 in
• Second Leg Thickness: 0.127–0.134 in
• First Leg Angle: 170.0° nominal
• Mounting Hole Type: Plain
