AN/WLD-1 Rms Tyco Electronics 342A058-25/86-0 Insulation Sleeving | NSN 5970-01-527-8833

TE Connectivity Corporation 342A058-25/86-0 45 Degree Side-Breakout Transition (NSN 5970-01-527-8833)

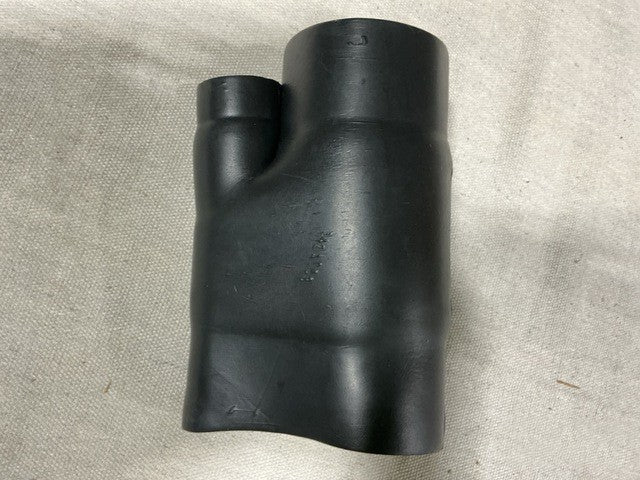

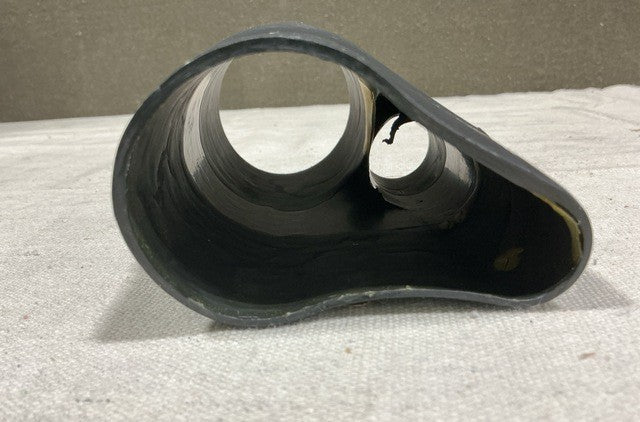

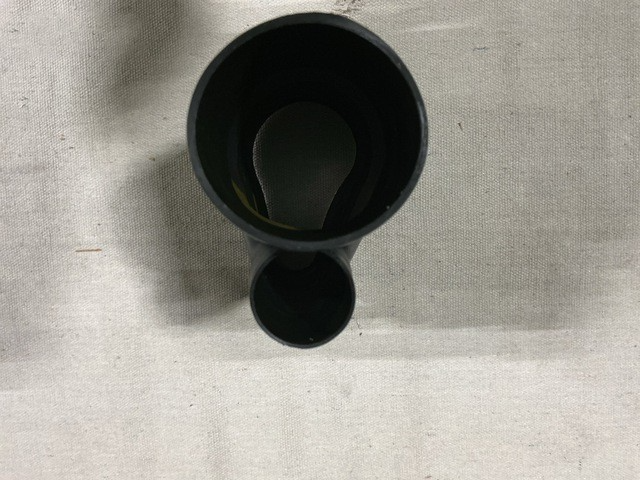

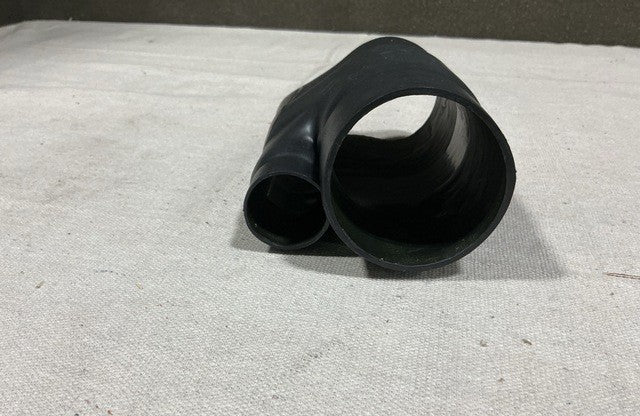

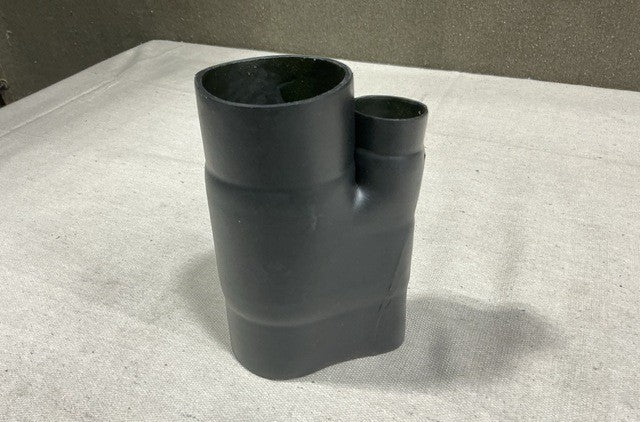

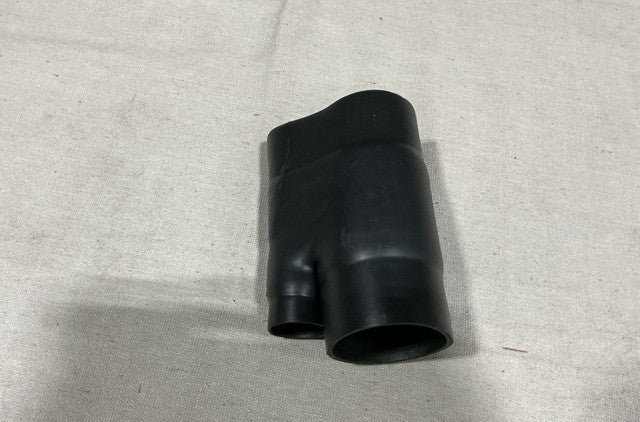

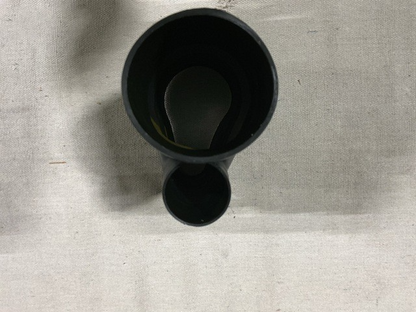

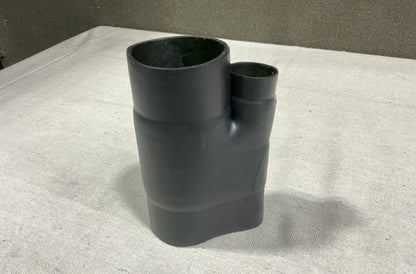

Heat-shrinkable insulation sleeving, molded 45° side-breakout transition, for the AN/WLD-1 RMS Mine Hunting System.

Part Information

• Manufacturer: TE Connectivity Corporation
• Part Number: 342A058-25/86-0
• NSN: 5970-01-527-8833
• End Item: AN/WLD-1 RMS

Specifications

• Temp Rating: -55.0°C to 300.0°C
• Environmental Protection: Fluid Resistant
• Main Body Inside Diameter (After Recovery, Max): 1.060 in
• Main Body Inside Diameter (As Supplied, Min): 2.130 in
• First Branch Inside Diameter (After Recovery, Min): 0.540 in
• First Branch Inside Diameter (As Supplied, Min): 1.000 in
• Main Body Overall Length (After Recovery, Nominal): 8.010 in
• Angle Between Main Body and First Branch Centerlines: 45.0°
• Heat Shrinkage Rating: 50.0%
• Material: Thermoplastic coating, plastic, elastomer RT-1325
• Features: Adhesive coating
• Flexibility: Flexible
• Color: Black
