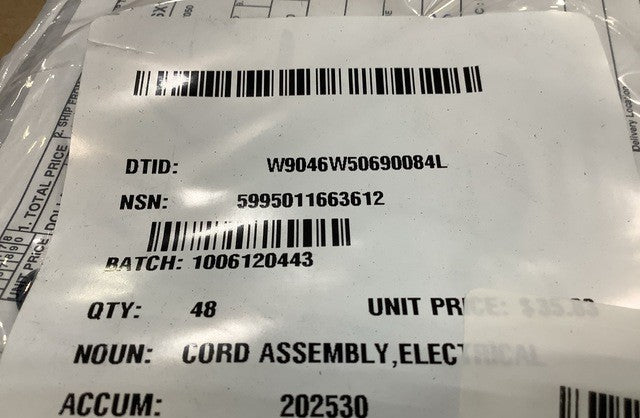

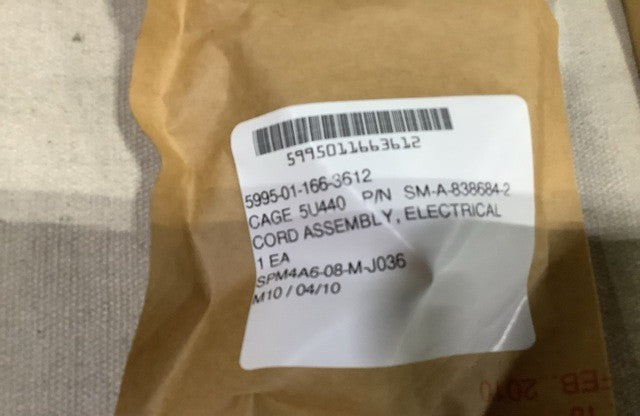

AN/TTC-39 Walker Associates SM-A-838684-2 Electrical Cord ASSY | NSN 5995-01-166-3612

TE Connectivity Networks 4-23525-0020 Electrical Cord Assembly (NSN 5995-01-166-3612)

Electrical cord assembly, 10.9 inches overall length, 2-conductor 28 AWG stranded copper with tin-plated conductors, terminated both ends with telephone plugs, for the AN/TTC-39.

Part Information

• Manufacturer: TE Connectivity Networks, Inc.
• Part Number: 4-23525-0020
• NSN: 5995-01-166-3612
• End Item: AN/TTC-39

Specifications

• Overall Length: 10.900 inches
• Cross Section Outside Diameter: Nominal 0.220 inches
• Termination Type: Both ends, all conductors - plug telephone
• Conductor Quantity: 2
• Conductor Form: Stranded (all conductors)
• Round Conductor Size: AWG 28 (all conductors)
• Core Conductor Material: Copper
• Surface Treatment: Tin (core conductor, all conductors)
