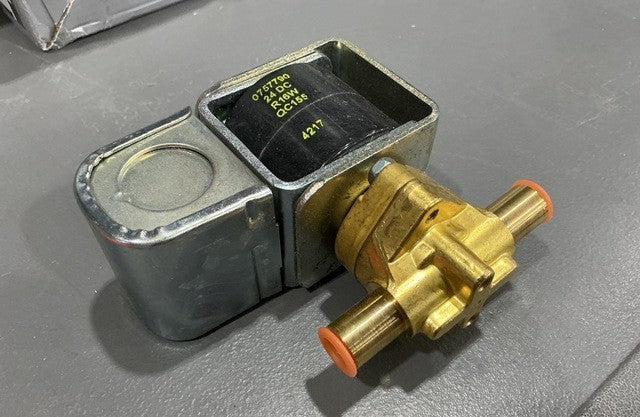

PARKER-HANNIFIN 71217A74790 Solenoid Valve (4810-00-190-7941)
Diaphragm-type solenoid valve, normally open, for the AN/TRC-170 radio set.
Part Information
- Manufacturer: Parker-Hannifin Corp
- Part Number: 71217A74790
- NSN: 4810-00-190-7941
- End Item: AN/TRC-170
Specifications
- Aperture Diameter: 0.250 in nominal
- Flow Control Device: Diaphragm, normally open
- Valve Operation: Solenoid, 24 VDC, 0.510 A
- Max Operating Temp: 160°F
- Operating Pressure: 425 PSI max; Differential 1.0–250.0 PSI
- Connections: First end and second end, unthreaded internal tube
- Tube OD: First end 0.500 in; Second end 0.375 in
- Mounting: Horizontal or vertical
- Special Features: Two wire leads and connector
- Material - Body: Copper alloy
- Material - Flow Control Device: PTFE and glass fiber
- Material - Seat: Copper alloy
- Media: Fuel/oil hydrocarbon; Refrigerant 22
