AN/TPQ-36 Firefinder Radar Set 159-0991 Welded Engine Fuel Tank 2910-01-044-8234
AN/TPQ-36 Firefinder Radar Set 159-0991 Welded Engine Fuel Tank 2910-01-044-8234
Regular price
$625.64 USD
Regular price
Sale price
$625.64 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 2910-01-044-8234 Specs and cross-references for NSN 2910-01-044-8234 (opens in a new tab) ↗

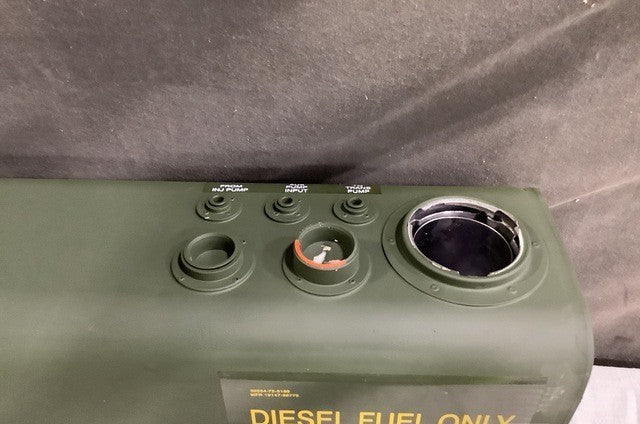

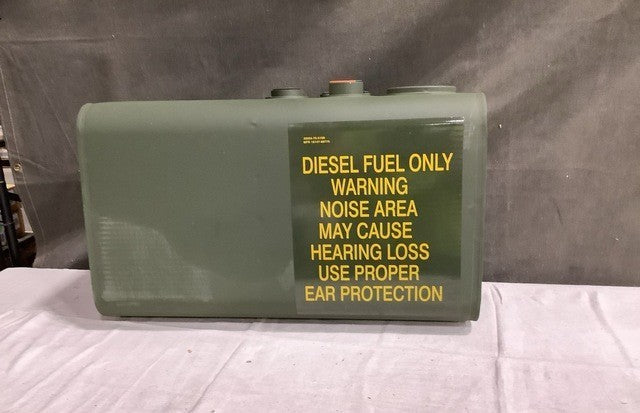

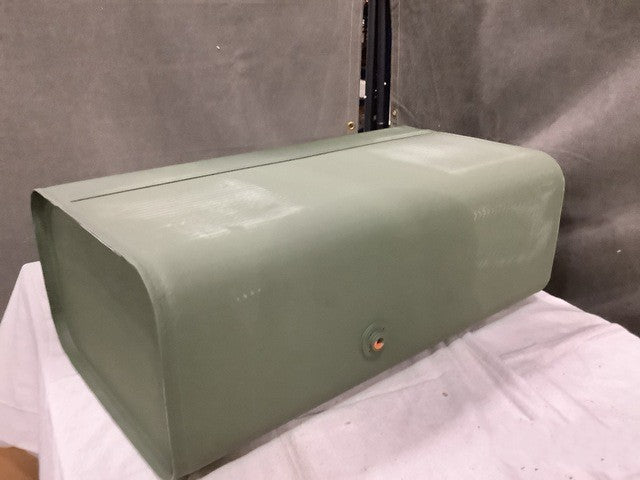

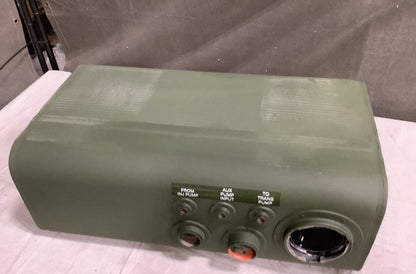

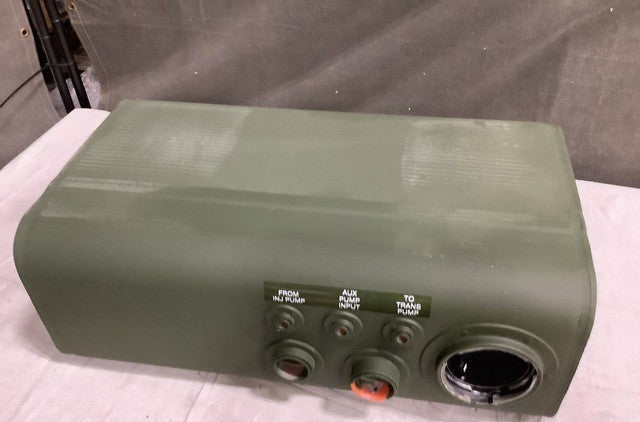

Cummins Power Generation 159-0991 Engine Fuel Tank (2910-01-044-8234)
Welded steel rectangular engine fuel tank, 12.5 gallon capacity, with furnished filler neck.
Part Information
- Manufacturer: Cummins Power Generation Inc.
- Part Number: 159-0991
- NSN: 2910-01-044-8234
Specifications
- Fabrication Method: Welded
- Material: Steel
- Shape: Rectangular
- Capacity: 12.5 Gallon (US)
- Width: 9.000 in
- Outside Diameter: 5.560 in
- Length: 24.380 in
- Height: 14.000 in
- Opening Quantity: 3
- Connection Thread Size: 1/4-18
- Connection Thread Series: NPTF
- Opening Connection Method: Thread
- Features Provided: Drain Opening
- Furnished Items: Filler Neck
- Distance from Filler Neck End to Tank Body: 0.469 in
Technical References
- TM 5-6115-585-24P
- NAVFAC P-8-623-24P
- TO-35C2-3-455-4
- SL-4-05684/06585B
Fits
This NSN is listed in the U.S. Army repair parts manuals for:
- Generator set 10 kW: MEP-003A (TM 5-6115-585-24P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
