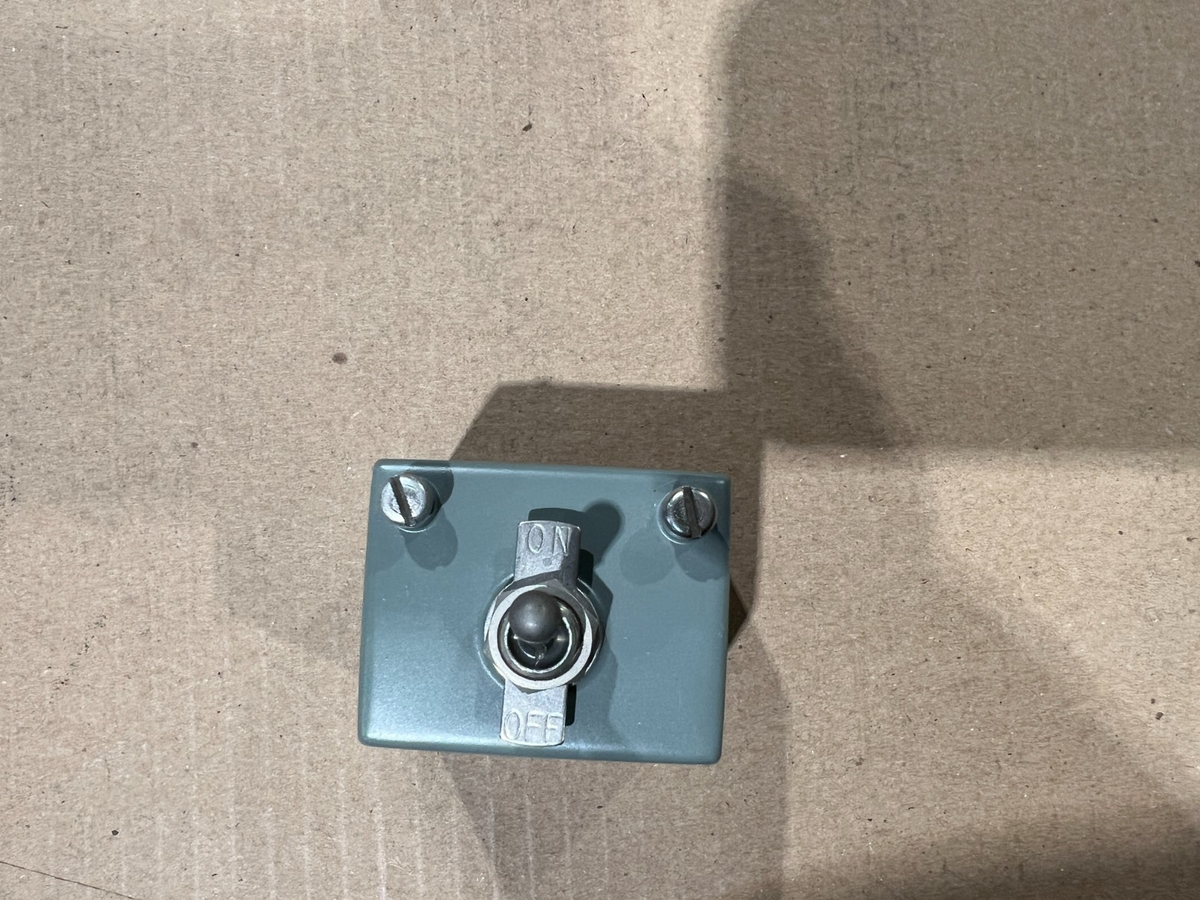

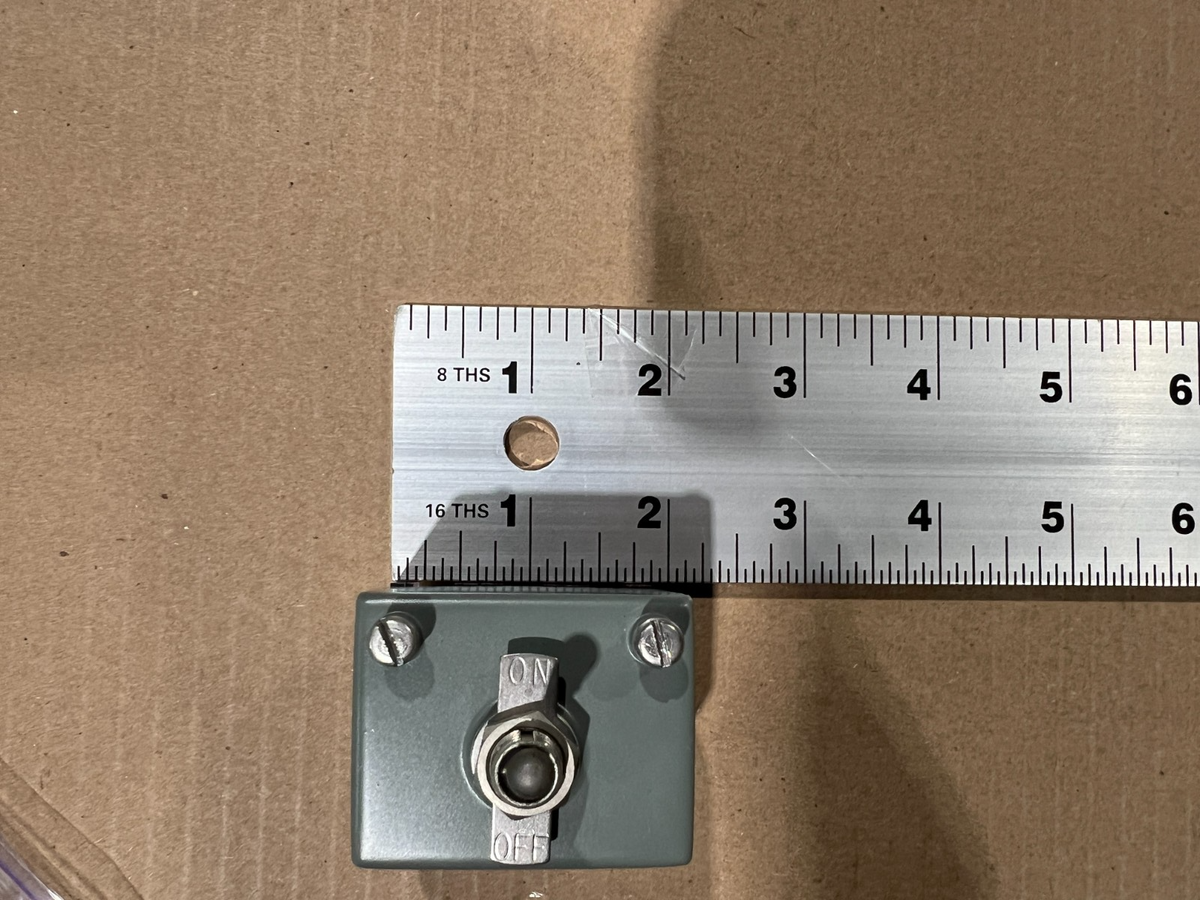

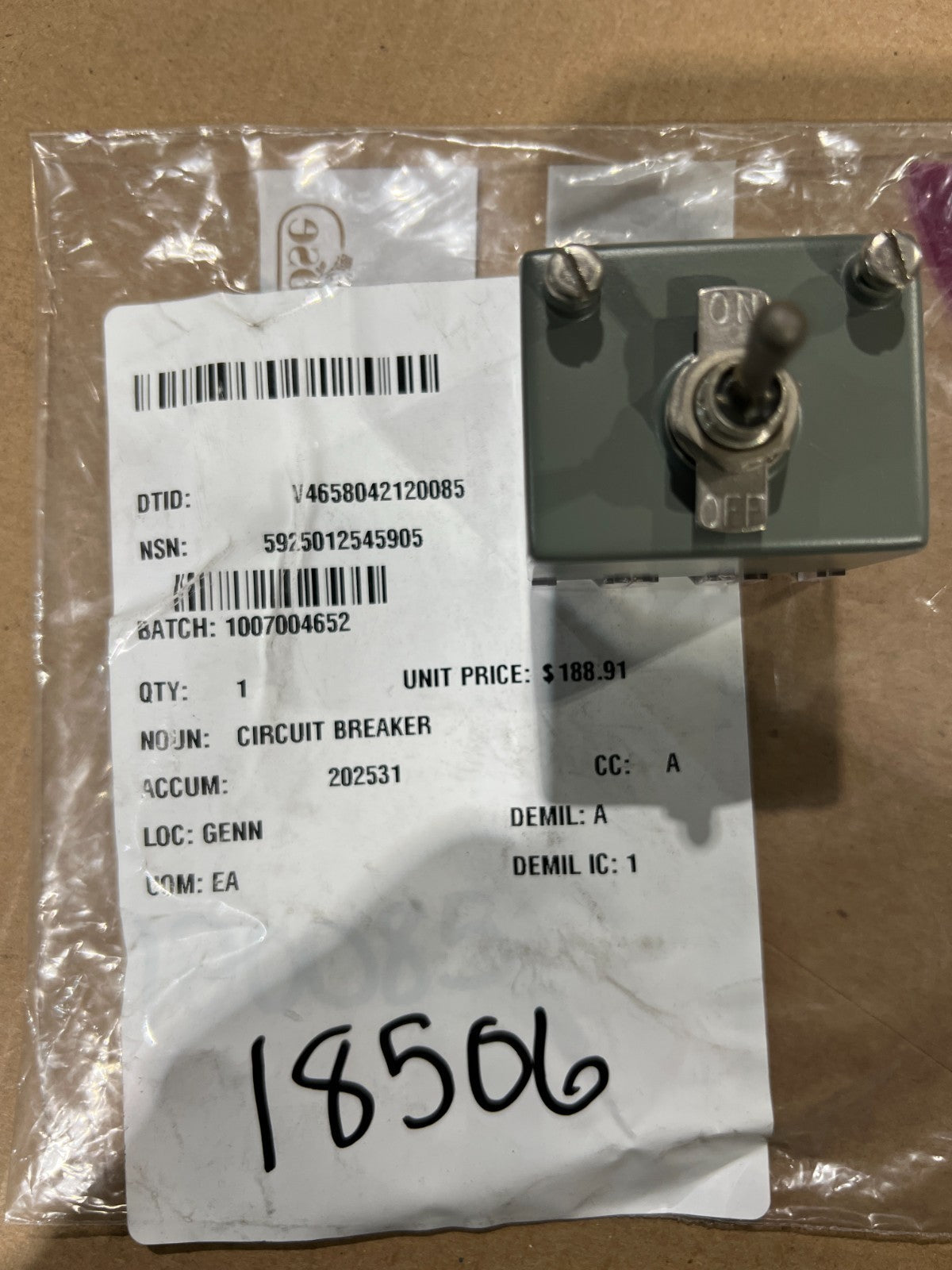

SENSATA TECHNOLOGIES MARYLAND A-P117-22075-1 Circuit Breaker (5925-01-254-5905)
Two-pole toggle circuit breaker, magnetic trip, hermetically sealed and shockproof/vibrationproof, for the AN/BSY-1V.
Part Information
- Manufacturer: Sensata Technologies Maryland, Inc
- Part Number: A-P117-22075-1
- NSN: 5925-01-254-5905
- End Item: AN/BSY-1V
Specifications
- Pole Quantity: 2
- Manual Actuator Type: Toggle, 1
- Actuator Function: Trip-Reset
- Trip Release Method: Magnetic
- Reset Method: Manual
- Main Contact Tripping Mechanism: Trip Free
- Internal Trip Release Configuration: Series Trip
- Mounting: Threaded Bushing with Panel Seal, 1
- Thread: 0.375 in, 32 TPI, UNEF
- Terminal Type: Wire Hook, 4
- Enclosure Protection: Hermetically Sealed, Shockproof, Vibrationproof
- Special Handling: Magnetic
- Unpackaged Weight: 3.6 oz (nominal)
