Aircraft Thunderbolt II A-10 77751-5 Metallic Bent Tube 77751-1 4710-01-046-0571
Aircraft Thunderbolt II A-10 77751-5 Metallic Bent Tube 77751-1 4710-01-046-0571
Regular price
$106.55 USD
Regular price
Sale price
$106.55 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 4710-01-046-0571 Specs and cross-references for NSN 4710-01-046-0571 (opens in a new tab) ↗

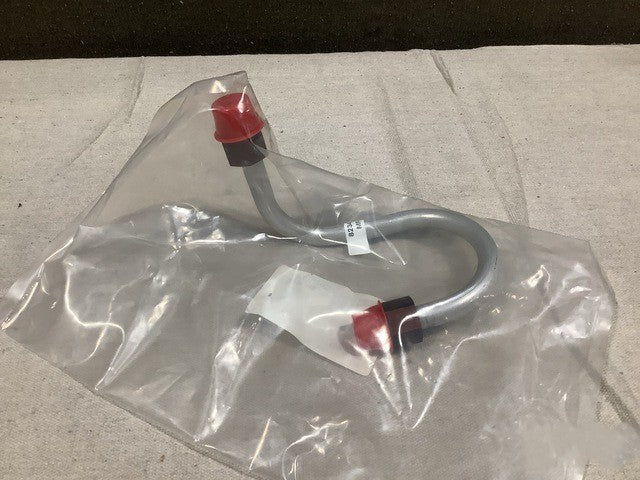

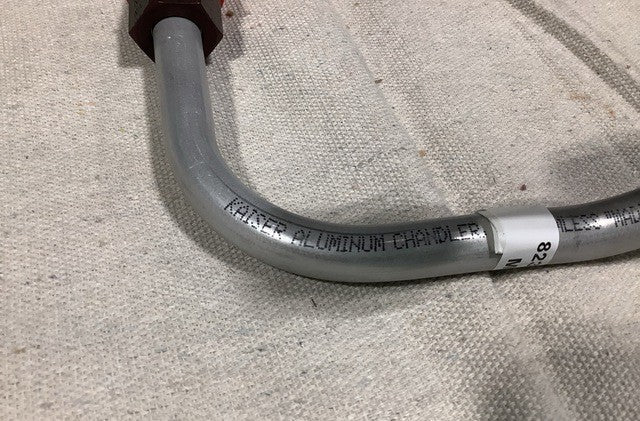

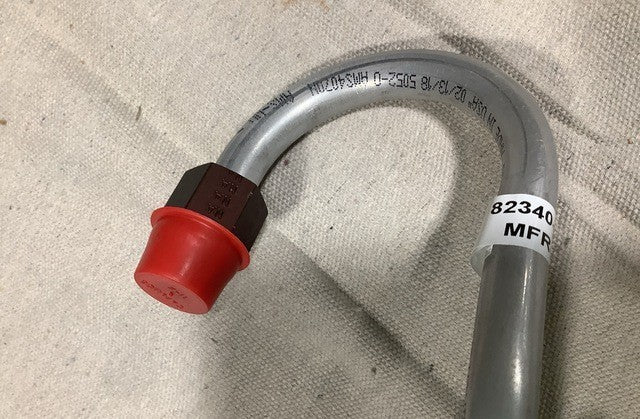

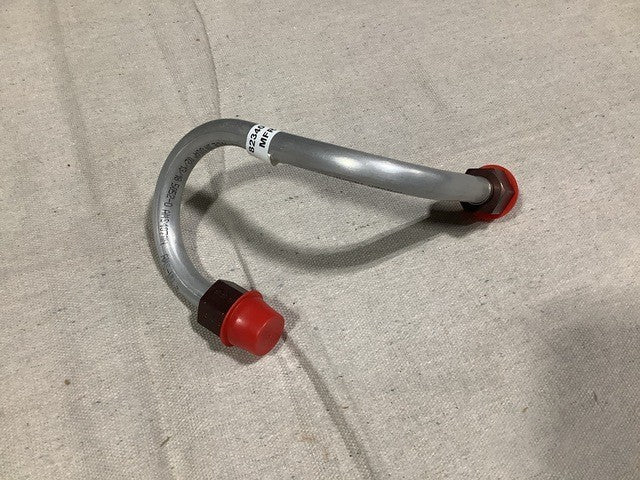

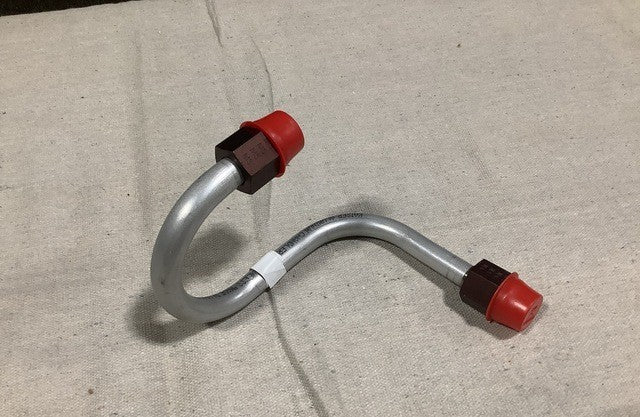

L3HARRIS 77751-1 Metallic Bent Tube (4710-01-046-0571)
Seamless aluminum alloy bent metallic tube for the A-10.
Part Information
- Manufacturer: L3Harris Technologies, Inc.
- Part Number: 77751-1
- NSN: 4710-01-046-0571
- End Item: A-10
- CAGE Code: L3Harris Technologies, Inc.
Specifications
- Wall Thickness: 0.035 in nominal
- Diameter: 0.500 in nominal
- Second End Relationship with First End: Identical
- Construction: Seamless
- Surface Condition and Location: Inside ground or outside ground
- Heat Treatment: Drawn temper
- Material: Aluminum alloy
- Material Document and Classification: Fed Spec WW-T-700 to 4, 0, Type 1
